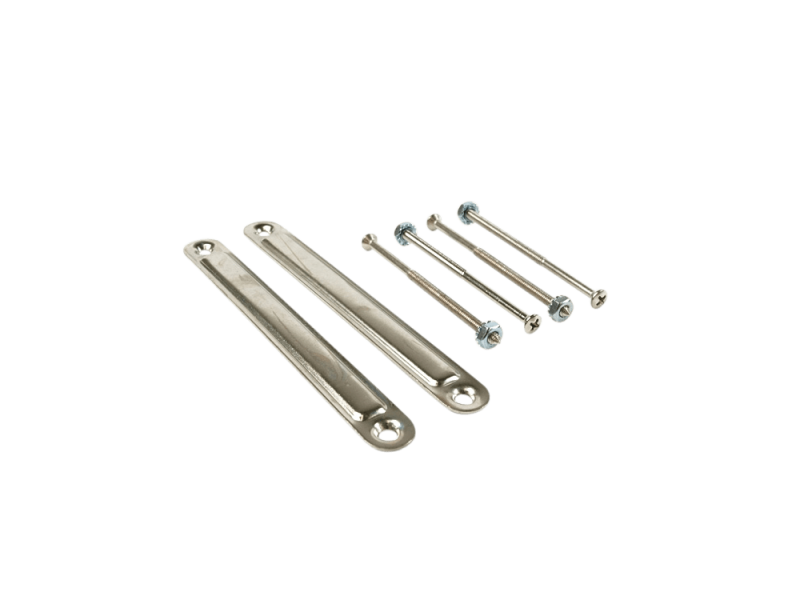

Fender Chassis-Straps Large

4 tubes, matched as quad

JJ EL84 / 6BQ5 Red Label

Files:

• Datasheet

4 tubes, matched as quad

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 37 mm
• Termination Style: axial

Headshell Fender Super Reverb Style
Based upon the size of the Fender Super Reverb Head, incl. corners, feet and handle.

Specifications

• Size: ca. 640 x 240 x 240 mm
• Tolex: Fender black
• Grillcloth: Fender black-white-silver
• Hardware: Fender Blackface Standard
• Weight: ca. 5,5 kg
• Wood: 18 mm Pine
• Feet: Rubber Feet, h = 30 mm

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation
