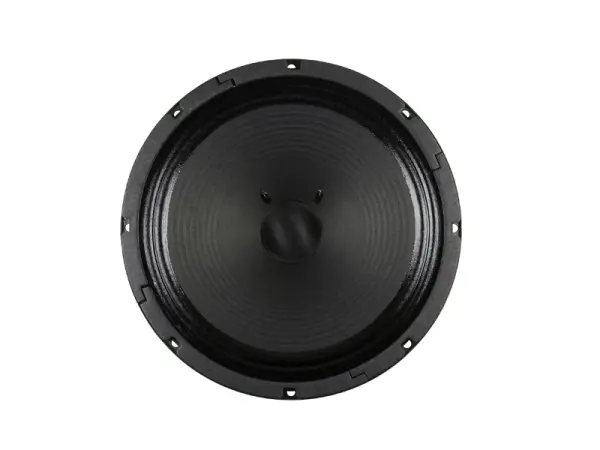

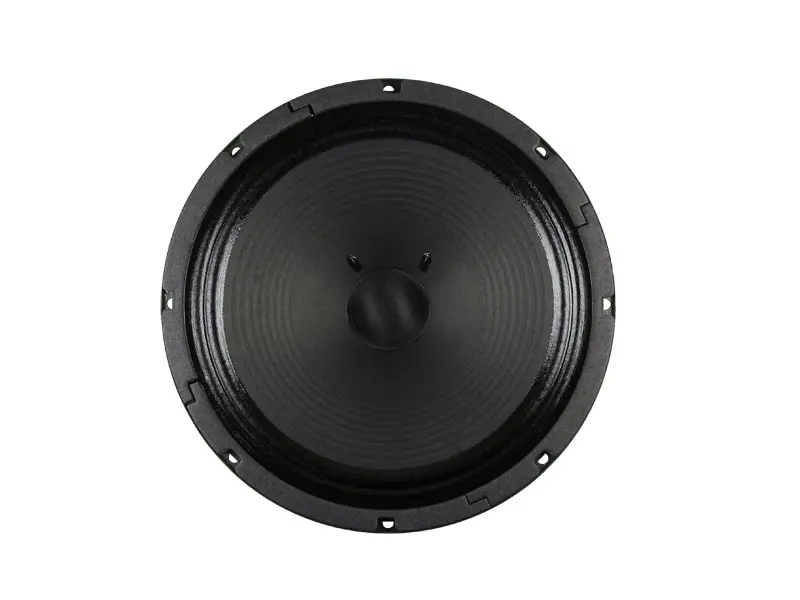

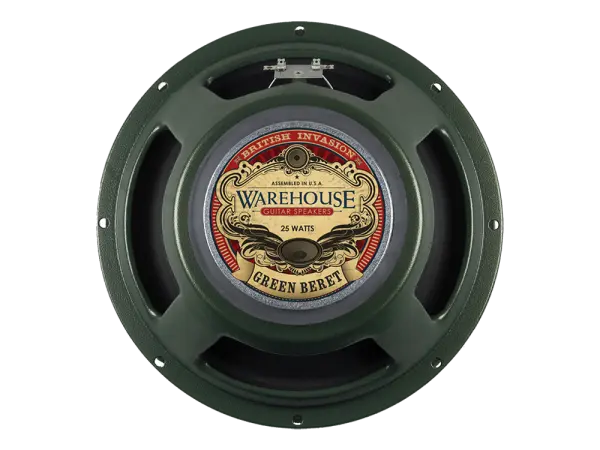

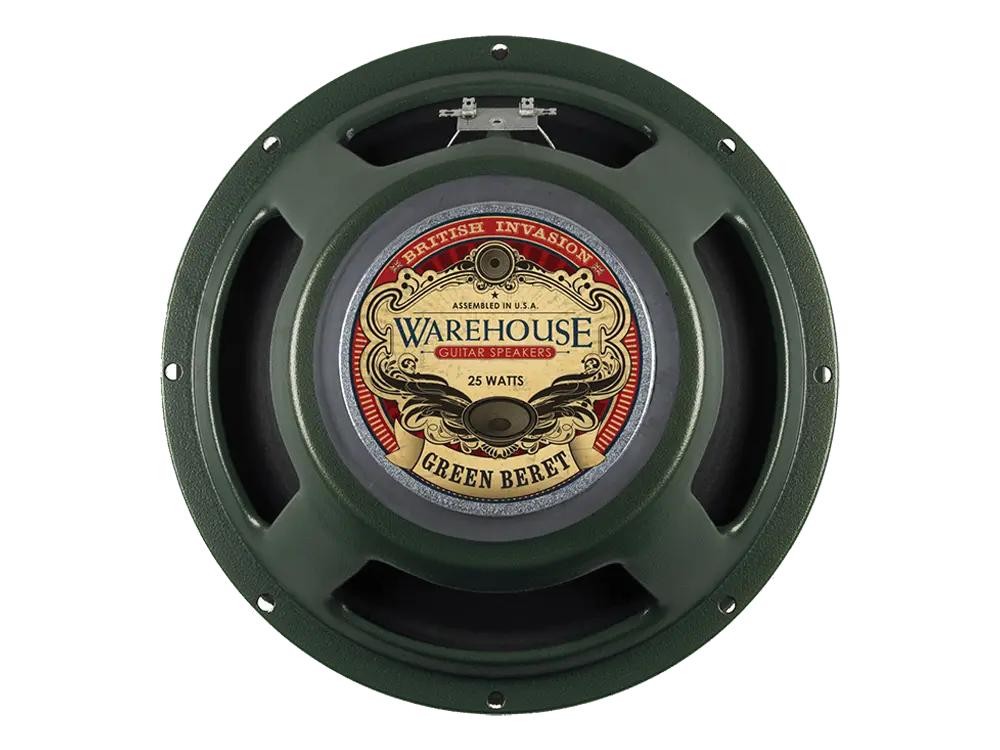

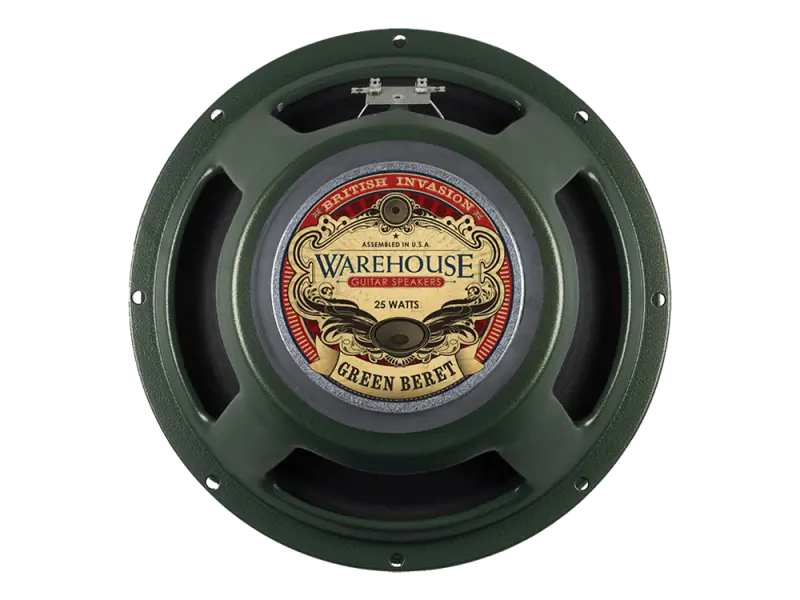

The 12” Green Beret™ guitar speaker brings crunchy cone breakup, growling bass, great headroom, and aggressive mids together better than any other 25 watt speaker. Upgrade for Celestion™ G12M Greenback™.
Unit Weight: 7.5 pounds

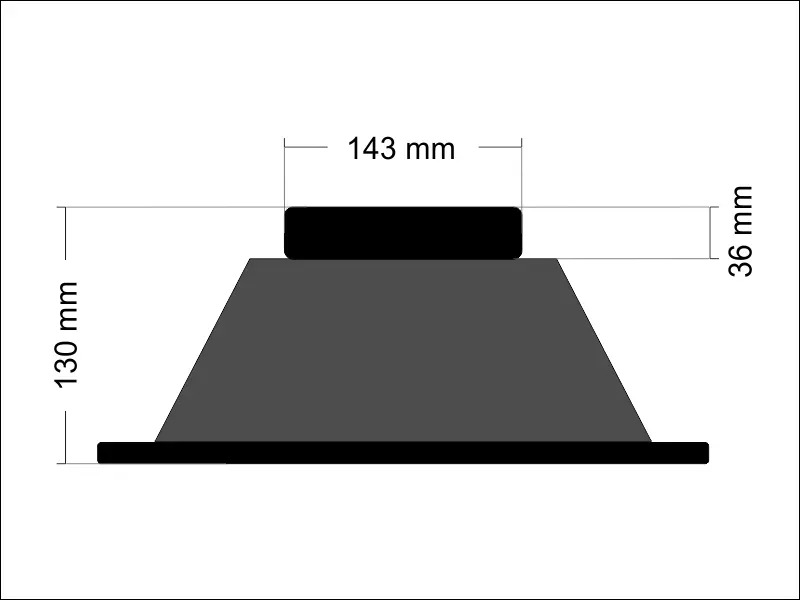

Mounting Information
- Diameter: 12.2”
- Overall depth: 5.3”
- Cut-out diameter: 11.1”
- Mounting slot dimensions: 0.31”
- Number of mounting slots: 8
Thiele-Small Parameters - Resonant Frequency (Fs): 125.30 Hz
- DC Resistance (Re): 8.05 Ohm
- Coil Inductance (Le): 0.34 mH
- Mechanical Q (Qms): 9.52
- Electromagnetic Q (Qes): 1.35
- Total Q (Qts): 1.18
- Compliance Equiv. Vol. (Vas): 10.50 cu ft
- Mech. Compliance of Susp. (Cms): 0.06 mm/N
- BL Product (BL): 11.70 T-M
- Diaphragm Mass Inc. Airload (Mms): 29.20 grams
- Surface Area of Cone (Sd): 366.10 cm squared
- Sound Pressure Level (spl): 99.63 db
