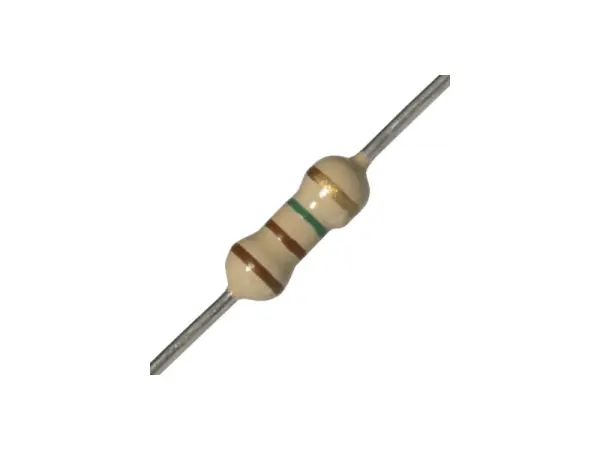

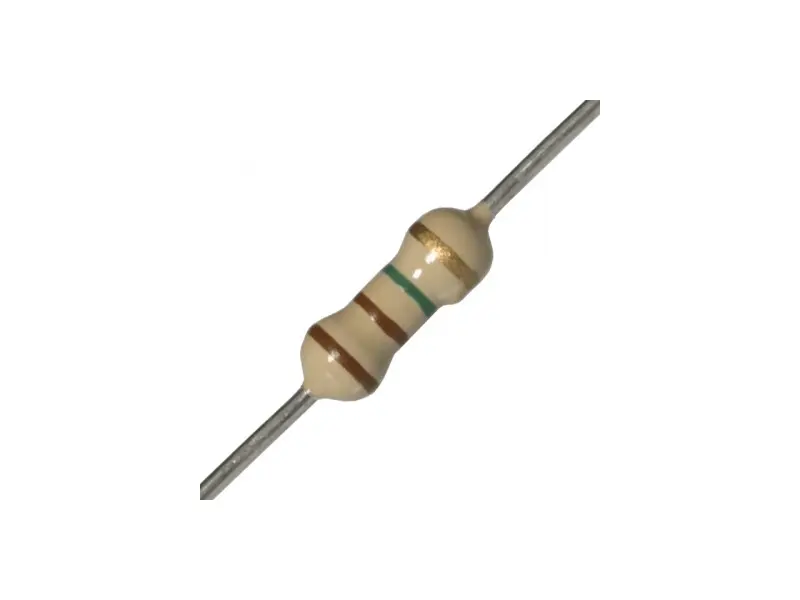

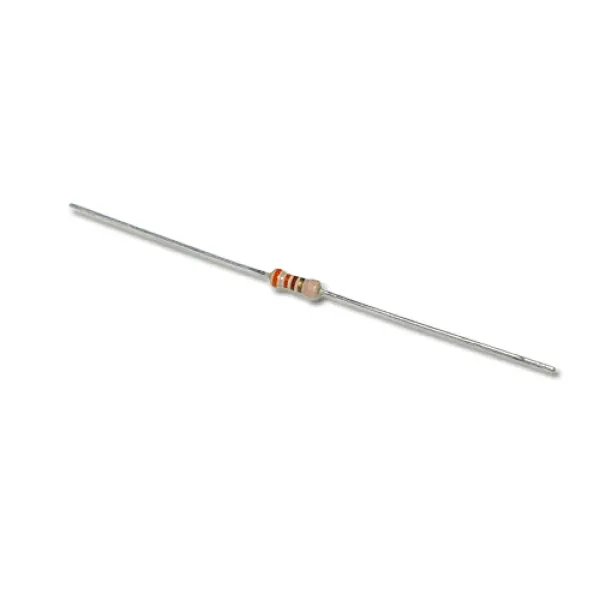

Carbonfilm Resistor 5.6k / 1 Watt - Pack of 5

4 tubes, matched as quad

Improved JJ EL34, with a modified cathode.
Hint: if you replace an EL34 with an E34L you should also check the bias.

Files:

• Datasheet

4 tubes, matched as quad

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

Typical Characteristics

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

Limiting Values

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet

• Size: 115 x 64 x 51 mm
• Color: unpainted

Files:

• Datasheet

Mallory Type 150 is a general purpose capacitor for use in blocking, bypass, decoupling, smoothing and some timing applications.

• Epoxy end fill meets UL94V-0
• Non inductively wound
• Flame retardant outer wrap meets UL510
• Non polar

Specifications:

• Operating Tempeature Range: –55 ºC to +125 ºC (derate linearly to 50% rated voltage at 125 ºC)
• Dielectric Withstand Voltage: .6 x rated voltage for 2 s @ +25 ºC ±5 ºC
• Dissipation Factor (DF): tgd x 10–4 at +25 ºC ±5 ºC
• Insulation Resistance: 10,000 MO x µF, 30,000 MO Min.
• Self Inductance: 1 nH max. per 1 mm lead and body length
• Life Test: 1000 hrs @ 85 ºC 1.25 x Vn
• Damp Heat Test: 95% RH @ +45 ºC for 21 days
• Soldering: 260 ºC ±5 ºC for 10 s ±1 s
• Long Term Storage Stability: ?C/C = ±3% after 2 years

• Solder with flux core
• Ideal for fine soldering and contact soldering jobs requiring corrosion-resistance and high production working speed
• DIN EN ISO 9453: Sn60Pb39Cu1
• DIN EN 61190: Sn60Pb38Cu02
• Melting range: 183 to 190 °C
• Solder diameter: 1,0 mm²
• Spool size: 250 g

• 2+1 Solder lugs
• lugs brass, tinned

• Size: 285 x 38 mm
• Material: FR4, 2 mm
• Color: black
• Turrets: 2 x 30

• Insulation: Silicon
• Operation Voltage: 300 V AC / 500 V DC
• Test Voltage: 2000 V
• Operating temperatures:    –40 bis +180 °C
• Packing: 5 m
• Cross-Section: 0,25 mm²
• Outer Diameter: 1.6 mm
• Stranded wire structure: tinned copper
