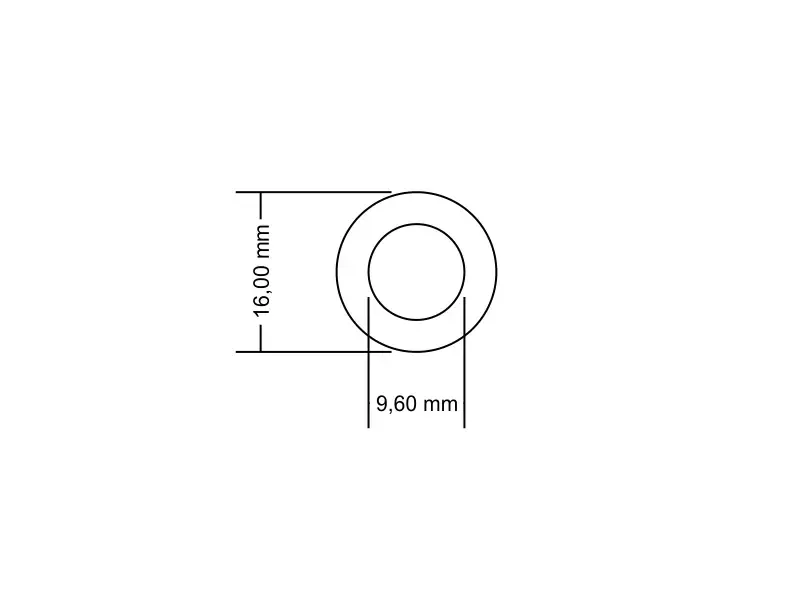

Washer for Potentiometer with 3/8" shaft for Alpha

Power Supply chassis Socket,  with break contact and solder eyes, for front side mounting

• Diameter opening: 6,3 mm
• Diameter center pin: 1,9 mm
• Rated current: 0,5 A @ 12 V DC
• Isulation resistance: > 100 M Ohm

• Type: Footswitch
• Version: 3PDT Latching
• for True Bypass
• Rating: 1A/9VDC
• Contact resistance: <30mΩ
• Insulation resistance: 500VDC-100MΩ min.
• Dielectric strength: 500VAC for 1 minute
• Operating Life: 30.000 cycles
• Termination Style: solder-lugs

Files:

• Datasheet

• This brass adapter sleeve converts a 6mm shaft potentiometer or 18T knurled shaft potentiometer to ¼" shaft (6.35mm), allowing for ¼" knobs to be used on a wider range of potentiometers. ¼" tall.

Copper Stranded Wire Insulated, 10m, gray

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

• Type: Toggle Switch
• Version: 3PDT, ON-ON
• Assembly Ø: 6.2 mm
• Rating: 3 A / 250VAC, 6 A / 125VAC
• Termination Style: solder-lugs
• Size: 18 x 136 x 12,3 mm

Copper Stranded Wire Insulated, 10m, Black

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Copper Stranded Wire Insulated, 10m, Blue

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

waterbased Tolex-Glue, 5 L

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 5 L is enough for ca. 23 m².

Files:

• Safety Datasheet

Copper Stranded Wire Insulated, 10m, Red

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

• Power Rating: 0,3 W
• Tolerance: 20%
• Shaft: 6,3 mm, solid metal
• Shaft length: 6 mm
• Drill Ø: 9,5 mm
• Termination: Solder lugs
• Dimension: 24 mm

Socket Clamp / Tube Retainer fits for many octal base tubes.
