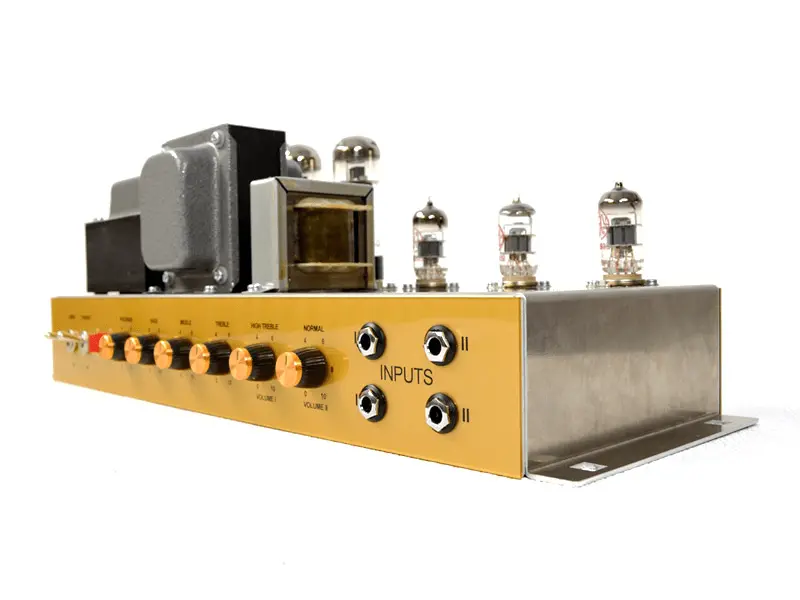

TT-Kit Marshall® Style JTM45 / KT66

• Material: #LG10 ProReverse Gold glossy lacquered
• Front + Back Panel
• This faceplate is for the TT chassis of the JT45 kit, NOT as replacement faceplate for an original JTM45 chassis.

Files:

• Template

• Size: ca. 660 x 230 x 210 mm
• Chassis Cut Out: ca. 420 x 58 mm
• Tolex: Marshall Style Levant White
• Hardware: Marshall Style Gold
• Keder / Piping: Gold
• Weight: ca. 5.5 kg**
• Wood: 12 mm Birch
• Dovetail joints
• Made in Germany

• Material: #LG10 ProReverse Gold glossy lacquered
• Front + Back Panel
• This faceplate is for the TT chassis of the JT45 kit, NOT as replacement faceplate for an original JTM45 chassis.

Files:

• Template

• Size: 550 x 300 mm
• Pure aluminum 30 µ - coated on one side with an acrylic adhesive, silicone paper cover
• Temperature and UV resistant
• Made in Germany

• 4 x cagenut M6
• 4 x thread screw M6 x 30

• Signal wire LiYDY 1 x 0,14 mm², shielded
• Diameter Outside: ca. 2,6 mm
• Voltage Rating max: 50 / 75 V AC / DC
• Capacity: ca. 260 pF / m
• Temperature range: -10 bis +70 C°
• Conductor resistance: 40 Ohm / km @ 20 C°
• Test voltage: > 1 kHz
• IEC 60228/ VDE 0295
• Length 1 m

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial
