SOLD OUT

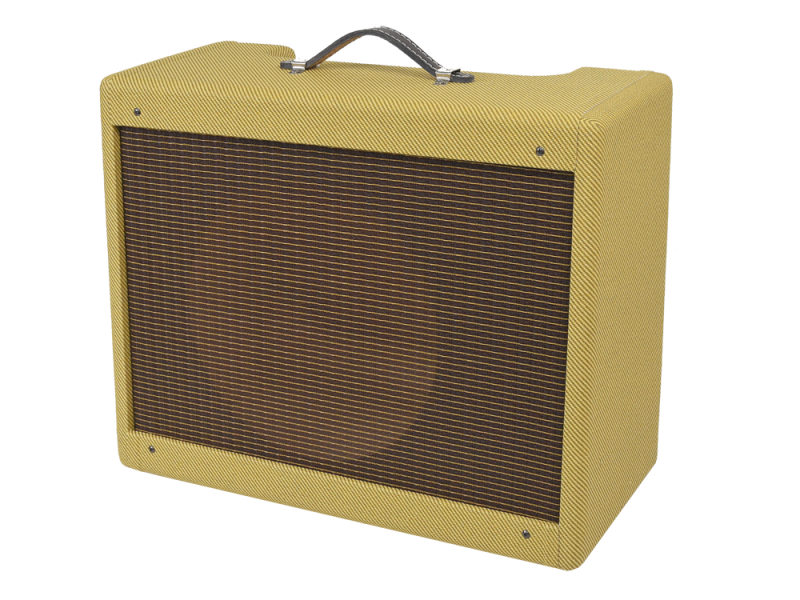

TTC Combo 5E3 - Tweed Deluxe Style

Product No.:
ttc-co-fe005
Temporarily out of stock. Please see hint for delivery time notice Temporarily out of stock. Please see hint for delivery time notice
Hint:
Available again ca. 22.05.2026
Weight:
25 kg per piece
489,00 €

incl. VAT excl. Shipping costs

Needed for:

TT-Kit 5Ä3 - MKII - Upgrade Kit
TT 5Ä3 Upgrade Kit - to upgrade 5Ä3 version MkI to MkII
More details about the upgrade as well as schematic and layout can be found on the >>Project page.

INCLUDED:
  • Resistors
  • Capacitors
  • Wires
  • Board
To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !
15,00 €

Customers who bought this product bought also the following products:

Metal Film Resistor RN65D 1/2 Watt 100 k
  • Metalfilm Resistor RN65D
  • Very low noise (- 40 dB)
  • Very low voltage coefficient (5 ppm/V)
  • Military-Spezification
  • Tolerance: 1 %
  • Power Rating:: 0.5 W (1/2 W)
  • Voltage Rating: 350 V
  • Temperature Coefficient:: +/- 100 PPM / C
  • Series: CMF (Military RN, RL)
  • Operating Temperature Range: - 65 C to + 175 C
  • Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
  • RoHS: NO
2,50 €

Hammond 291AEX  Spare for Fender 125P1B / 022772 UPGRADE Champ
  • Universal Primary: 120/220/230/240V 50/60 Hz
  • Powertransformer for (Bronco, AA764, AB764, Blackface, Silverface) (Champ, Tweed, 5C1, 5E1, 5F1, AA764, Blackface, Silverface, Vibro Blackface) (Harvard, 6G10) (Princeton Tweed, 5B2, 5C2, 5D2, 5E2, 5F2, 5F2A) (Princeton, Brown, AA964, Blackface, Silverface) (Princeton Reverb, AA1164, AA764, B1270, Blackface, Silverface)
  • Fender Part Number 125P1B and 022772
  • 291AEX uses high grade 29M6 magnetic steel laminations for reduced losses, more surge output power, cooler operation & longer life.

Files:

129,10 €

Fender Jewel green
Fender® style lamp jewels
  • Threading: 9/16 - 24
3,80 €

F+T 33 µF @ 500 Volt, axial
  • Type: Aluminum Electrolytic Capacitors
  • Capacitance: 33 µF
  • Voltage Rating: 500 V
  • Tolerance: +/- 20%
  • Operating Temperature Range: - 40°C / + 85 °C
  • Dimensions: Ø 18 mm x 39 mm
  • Termination Style: axial
3,85 €

Fender Style Pilot Light Assemply / Lamp Holder

Replacment for Fender Amps

  • Chassis Hole: 17,5 mm
  • Threading: 9/16 - 24
6,30 €

F+T 15 µF @ 500 Volt, axial
  • Type: Aluminum Electrolytic Capacitors
  • Capacitance: 15 µF
  • Voltage Rating: 500 V
  • Tolerance: +/- 20%
  • Operating Temperature Range: - 40°C / + 85 °C
  • Dimensions: Ø 16 mm x 30 mm
  • Termination Style: axial
2,30 €

SoZo Blue Molded 0.047 µF / 500 V

SoZo BlueMolded Vintage Capacitors™

The BlueMolded line of capacitors are retrofits for Astron or Blue Molded caps used in vintage tweed, brown, and blackface Fenders™. These capacitors amazingly capture vintage Fender tones of the Blackface era, and the famous 1959 tweed 5F6-A Bassman era.

7,70 €

Metal Film Resistor RN65D 1/2 Watt 1 M
  • Metalfilm Resistor RN65D
  • Very low noise (- 40 dB)
  • Very low voltage coefficient (5 ppm/V)
  • Military-Spezification
  • Tolerance: 1 %
  • Power Rating:: 0.5 W (1/2 W)
  • Voltage Rating: 350 V
  • Temperature Coefficient:: +/- 100 PPM / C
  • Series: CMF (Military RN, RL)
  • Operating Temperature Range: - 65 C to + 175 C
  • Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
  • RoHS: NO
1,25 €

SoZo Blue Molded 0.1 µF / 500 V

SoZo BlueMolded Vintage Capacitors™

The BlueMolded line of capacitors are retrofits for Astron or Blue Molded caps used in vintage tweed, brown, and blackface Fenders™. These capacitors amazingly capture vintage Fender tones of the Blackface era, and the famous 1959 tweed 5F6-A Bassman era.

9,90 €

Faceplate for TT Amp-Kit 5Ä3 - MKII silver/ black

Faceplate for TT Amp-Kit 5Ä3 - MKII

  • Color: #C14 brushed silver / black
  • Material: 1,5 mm Transply
  • Front + Rear Panel

Files:

22,80 €

SoZo Blue Molded 0.022 µF / 500 V

SoZo BlueMolded Vintage Capacitors™

The BlueMolded line of capacitors are retrofits for Astron or Blue Molded caps used in vintage tweed, brown, and blackface Fenders™. These capacitors amazingly capture vintage Fender tones of the Blackface era, and the famous 1959 tweed 5F6-A Bassman era.

5,85 €
