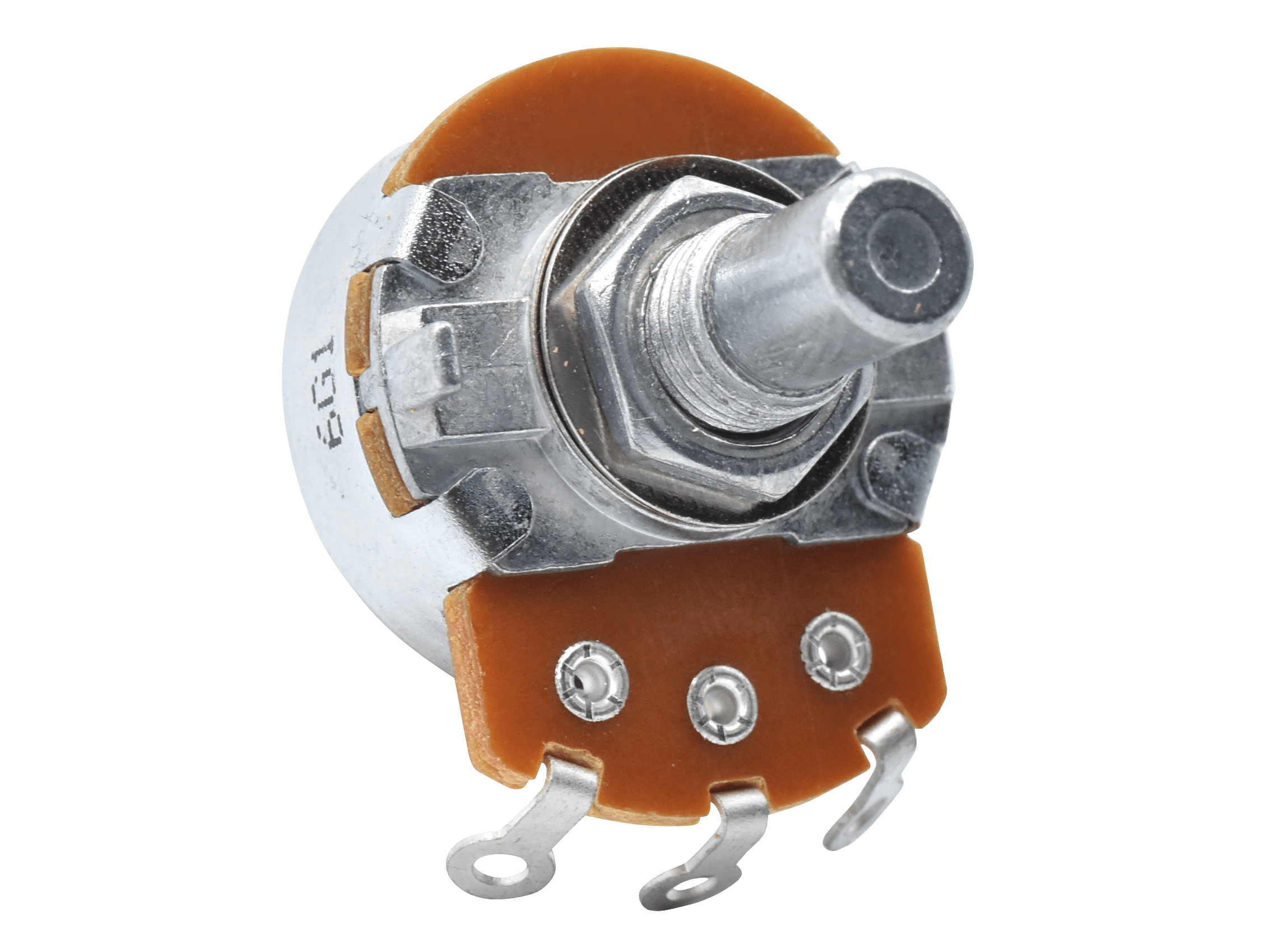

Alpha 100 kOhm linear, 3,8"

2 tubes, matched as pair

JJ KT77 - Red Label

Files:

• Datasheet

• Pri.: 3800 Ohm C.T.
• Sec.: 4-8-16 Ohm
• Power: 50 W (18Hz -3dB)

Files:

• Datasheet

• Choke for Marshall Plexi
• 3 H

Files:

• Datasheet

Active, serial FX-Loop for a subsequent installation in an existing tube amplifier
The FX-Loop works with  two LND150 in the send and in the return stage. The send and return level can be adjusted to their optimal value with two potentiometers. The Loop works with the present high voltage of the amplifier.
It has two inputs for low and high signal levels.

Input Levels:
InA: 30 - 60 Vpp, max. 65 Vpp
InB: 10 - 15 Vpp, max. 18 Vpp

The FX-Loop utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Documentation

5 pole DIN cable connector, silver plated contacts

• Dielectric strength: 0.5 kVdc
• Insulation resistance: ≥ 1 GΩ
• Rated current: Cable O.D. 5 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 26 mm²
• Contact plating: Nickel
• Contacts: Brass (CuZn39Pb3)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Insulation: Thermoplastic
• Bushing: PVC, crimp type Zn plated strain relief
• Solderability: Complies with IEC 68-2-20
• Temperature range: -25 °C to +70 °C

Files:

• Datasheet

5 pole DIN chassis connector, silver plated contacts

• Dielectric strength: 0.5 kVdc
• Insulation resistance: ≥ 1 GΩ
• Cable O.D.: 5 mm
• Lifetime: > 1000 mating cycles
• Contact plating: Au plated
• Contacts: Brass (CuZn39Pb3) , Ni
• Shell: Steel
• Shell plating: Nickel plated
• Solderability: Complies with IEC 68-2-20
• Temperature range: -25 °C to +70 °C

Files:

• Datasheet

Fuseholder for 5x20 mm fuses, PCB-mount

Drill Ø: 12 mm
Rated voltage: 250 VAC
Rated current: 10 A (VDE), 16 A (UL/CSA)
