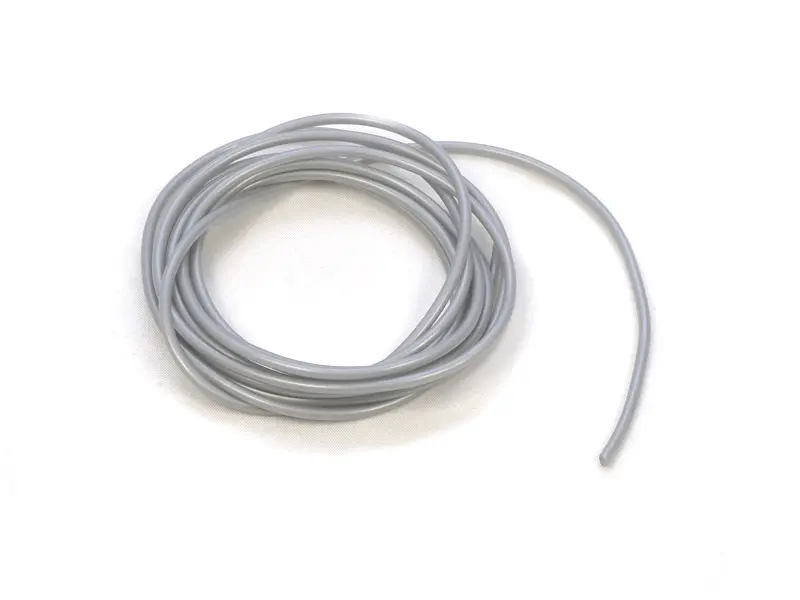

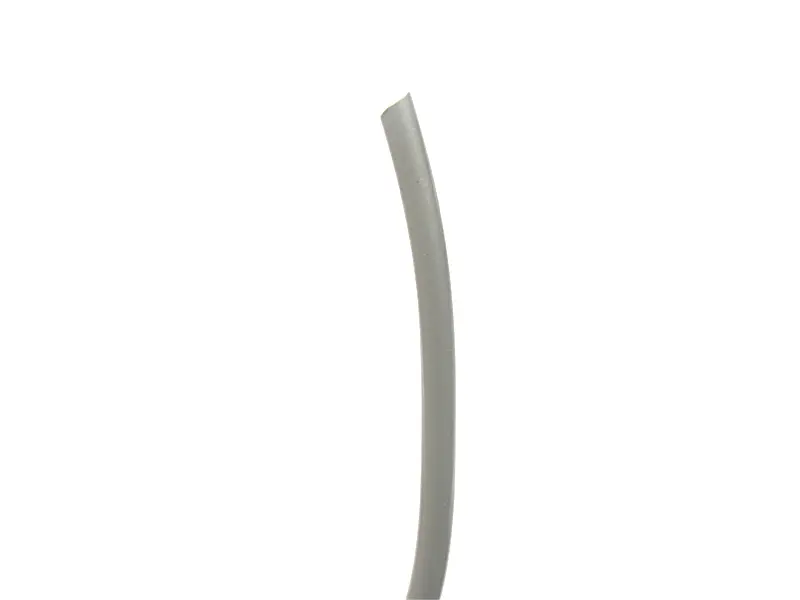

Trim Strip silver - Pack of 2 m

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• for noval sockets
• Color: black
• High: 55 mm
• Including Base and Shield

• Specification: ½ Watt, axial
• Temperature Range: -55°C to +125°C
• Tolerance: 10%
• Max. Operating Voltage: 350 V
• Size: l=9.5 mm, d=3.6 mm

This is a kit of the famous Dumbleator, can be used as standalone device or for installation in an existing amplifier.

When build as a stand-alone device, the kit can be powered with the TT-VPump, in an amplifier the kit must be supplied via the existing power supply of the amp.

The Dumbleator offers numerous configuration options which are shown in the appended schematics.

Input Levels:
InA: 10-15 Vpp
InB: guitar level - 5 Vpp

The kit includes all the parts needed to build the "standard version" incl. a 12AX7, potentiometers and leads.
It does not include components that are required for the building the extended versions,  as well as a power supply or casing.

The Dumbleator utilize POTENTIALLY FATAL HIGH VOLTAGES.
Seek help from a competent technician if you are in any way unfamiliar with high voltage circuits.
Use at your own risk.

Files:

• Schematics

Retainer for EL34 / 6L6 Tubes

• Choke for JCM 800 & JMP (50 & 100 Watt models)

Files:

• Datasheet

Width ca. 125 cm
Price per linear meter.
Actual shades may vary.
We ship the tolex as one piece if you order more than 1 meter.

Material:
80% PVC Film
20% Poly-Cotton Fibre

REACH compliant

PLEASE NOTE !
If you order more than 1 m of Tolex and choose German Postal Service / DHL or FedEx as the shipping method, then we will cut the tolex to a width of approx. 115 cm, as the maximum permissible parcel length for these parcel services is limited to 120 cm.

TT-Chassis Aluminium - Typ 008 Standard, Dumble-Size (V2020

• Size: 490 x 200 x 65 mm (Dumble size)
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• reinforced Corners
• With two cut-outs for power jacks
• Made in Germany

Files:

• Datasheet V2020
• Datasheet V2017 (old)

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 5%
• Temperature range: -55° C...200° C
• Flame retardant
• Small Size
• Size: 9,7 x 2,4 mm

• Type: HV ceramic disk capacitor
• Epoxy resin molding
• (insulating and flame retardant)
• Voltage Rating: 2 kV
• Tolerance: - 10 %
• Operating Temperature Range: - 30°C / + 85 °C
• Grid: 7,5
