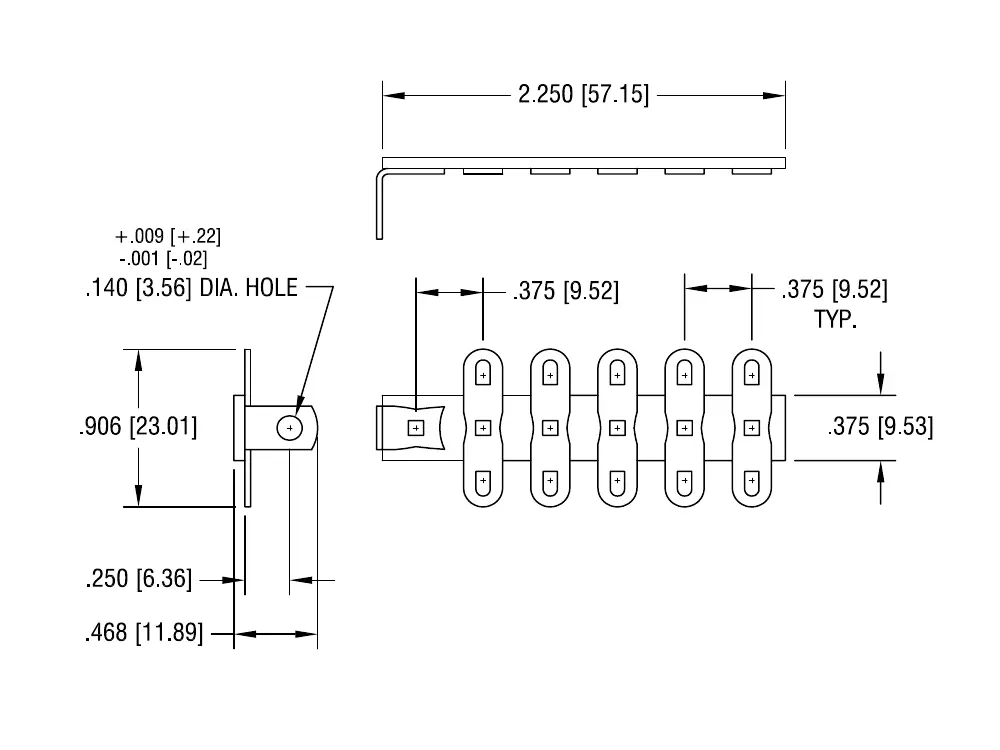

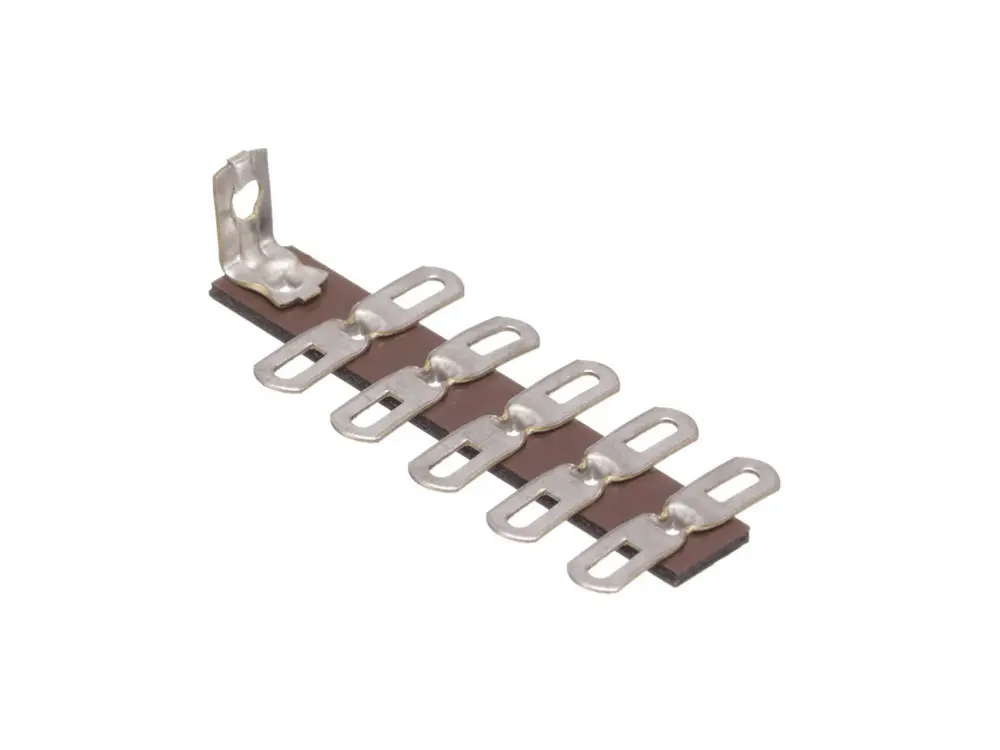

Terminal Keystone 836 5+1 Solder lugs, vertical

Variable voltage control for voltages up to 600 V

Possible applications:
- G2 Control
- Power adjustment

Please see the >>TT VoCoM Projekt-Seite zu finden.

Der Bausatz beinhaltet alle Teile die zum Bau benötigt werden wie Widerstände, Dioden, Leistungstransistor, Kühlkörper, Potentiometer, Schraube, Mutter, Leitung, Beschriftungsschild.

ACHTUNG HOCHSPANNUNG:
Dieser Bausatz ist nichts für Anfänger. Wer nicht weis, was er damit tut, sollte diesen Bausatz auch nicht kaufen !

">>TT VoCoM project page for more infos

Kit includes:
all parts to build this VVC. Resistors, Heatsink, Wires, Potentiometer, PCB, Label, Screws, Nuts.

WARNING: HIGH VOLTAGE !!
This kit is not for beginners. If you do not know what you are doing than you should NOT buy this kit!

TT OPP Kit for building an OP preamp, which can be used as buffer, driver, whatever...

The OPP is build on a PCB-board, it is simple and easy for beginners, too.
Please visit the >>STOMP-Project Pages for more information about this kit.

The kit includes all basic parts needed to build the booster like resistors, capacitors, potentiometers, wire, PCB board.

The partes listed below are NOT INCLUDED and you need to order them separately if you do not have them already:

• knob
• chassis
• footswitch
• faceplate or lables

Please check the tab "recommended accesoires" for matching components

• Termination Style: Axial
• Resistance: 100 Ohms
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Metalfilm Resistor RN65D
• Very low noise (- 40 dB)
• Very low voltage coefficient (5 ppm/V)
• Military-Spezification
• Tolerance: 1 %
• Power Rating:: 0.5 W (1/2 W)
• Voltage Rating: 350 V
• Temperature Coefficient:: +/- 100 PPM / C
• Series: CMF (Military RN, RL)
• Operating Temperature Range: - 65 C to + 175 C
• Dimensions: 4.57 mm Dia. x 4.57 mm W x 14.27 mm L
• RoHS: NO

• Length: 194 mm, Solder Lugs: 2 x 28
• Contact grid: 10 mm
• Width: 16,7 mm
• laminated paper

• Pri: 0-220-230-240 V (blue-black-orange-yellow)
• Sec 1:  250 V / 0,1 A (red)
• Sec 2: 6,3 V / 1,5 A (blue)
• Sec 3: 12,6 V / 1 A (green)
• Size: d = 80 mm, h = 35 mm
• ta 40 EN 61558
