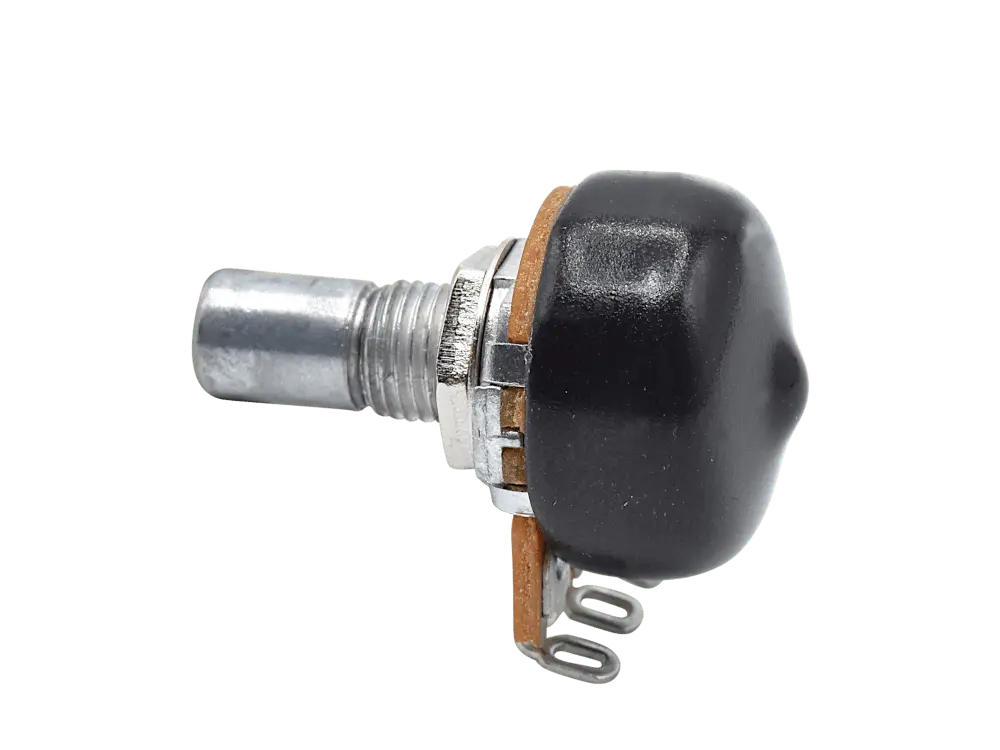

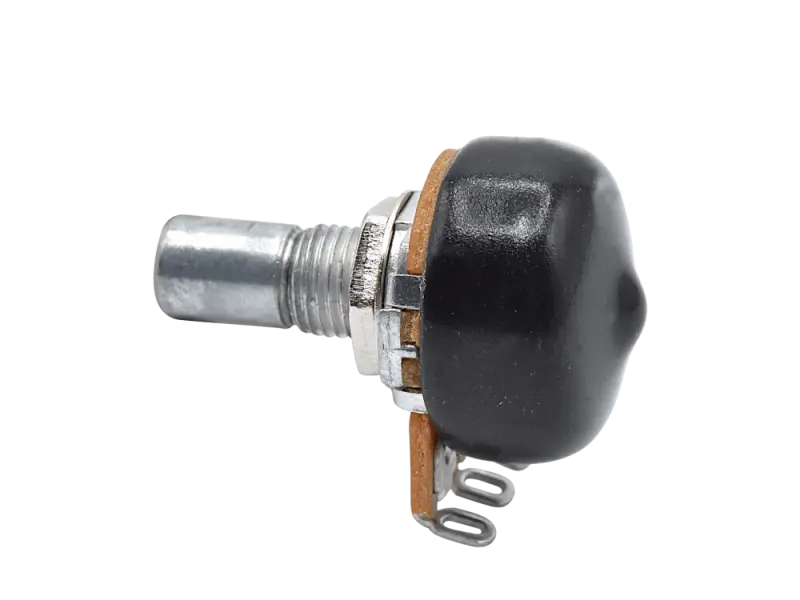

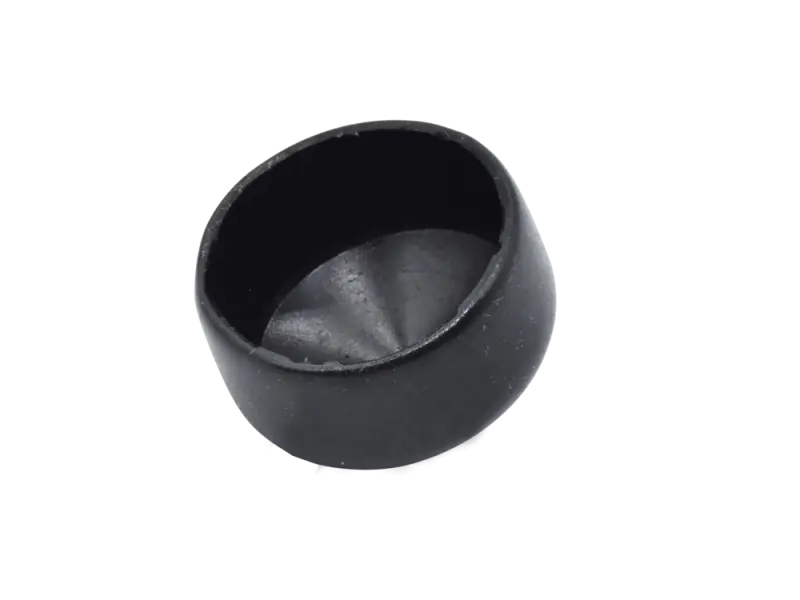

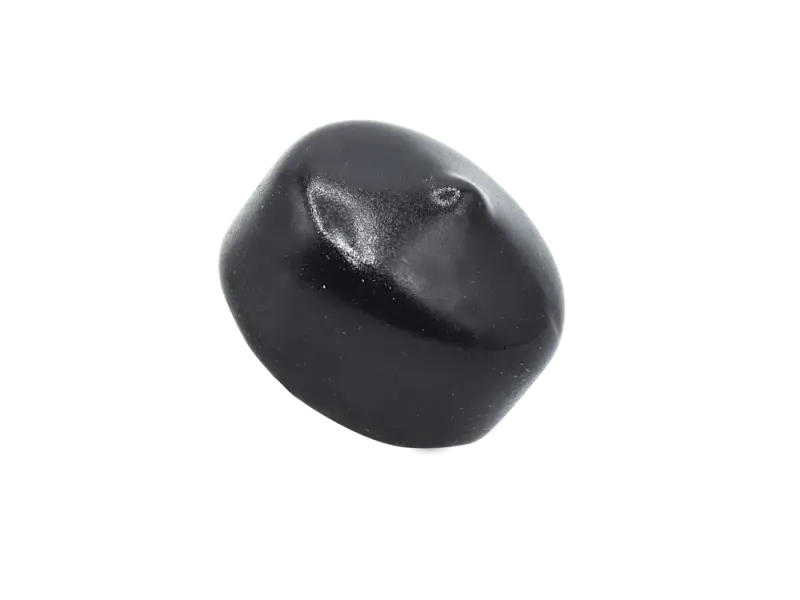

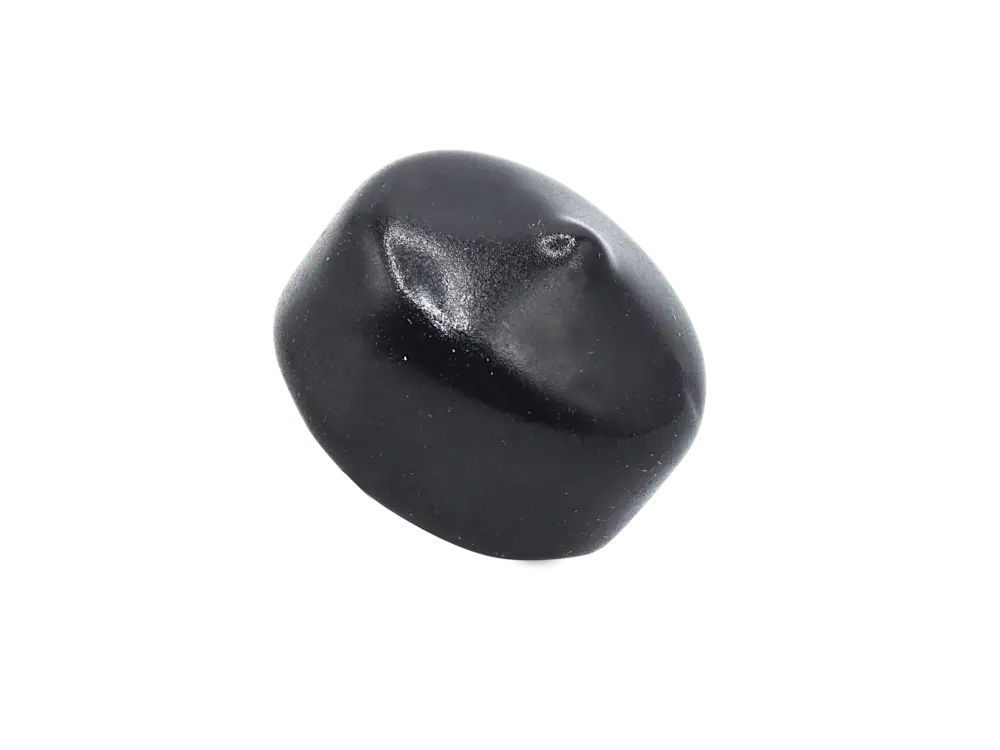

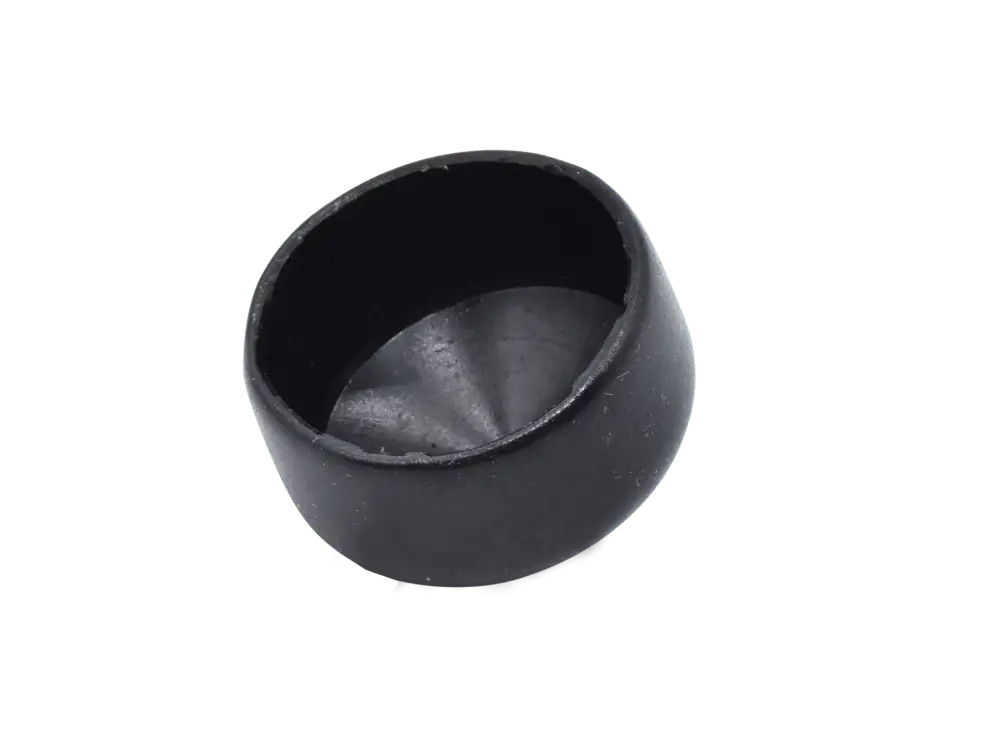

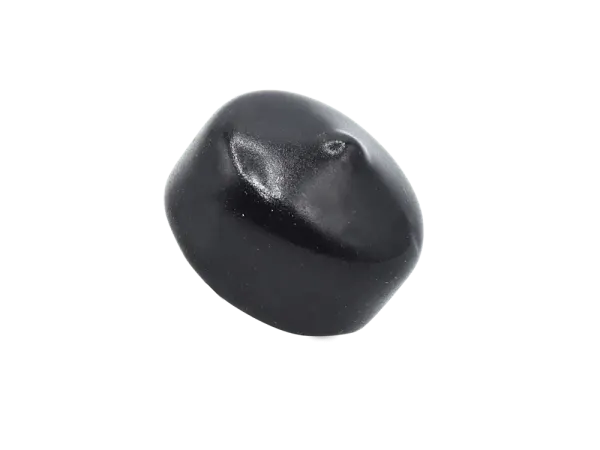

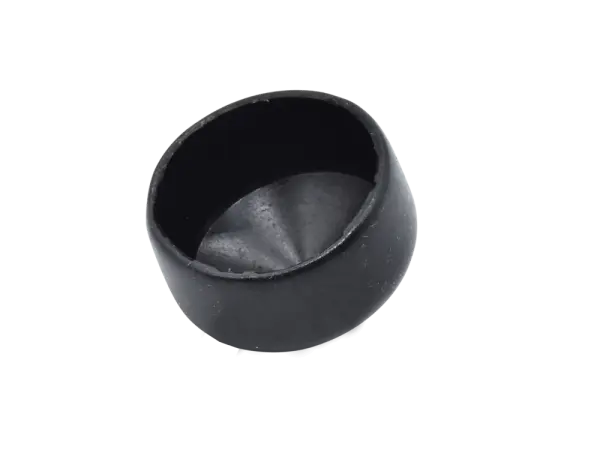

Potentiometer Dust Seal 24 mm

• Wiring harness for internal speaker connection
• Type: Mono / 1 Speaker
• Wire: 2 x 1,5 mm² red - black
• Hicon HI-J63MA05 Angled Jack / speaker crimps
• Length: ca. 55 cm

Resistor Metaloxide 2 Watts

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers
• Pack of 5

Please note:
These resistors have a very small form factor:
red: l = 10 mm, d = 3.9 mm
green: l = 11.5 mm, d = 4.5 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Current Limiter 5 A / 10 Ohm

Files:

• Datasheet

Wire Silicon, SiAF

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

Superior large plate format Twin Triode, ideal for use in driver and reverb circuits. Offers superior dissipation compared to NOS versions of this tube.
Excellent 12AT7 choice choice for HiFi and guitar amp circuits.
Electro-Harmonix tubes are all new designs and are of excellent quality. Many OEMs use relabeled Electro-Harmonix vacuum tubes in their amplifiers. If you want great sounding tubes at a very reasonable price, then Electro-Harmonix tubes should be on your list.

Files:

• Datasheet

TT Selection: V1 - Low Noise
This tube is selected for sensitive input stages (V1)

The Ultimate 12AX7. Big, warm, and musical. High Gain, ultra-low microphonics, and superb linearity with a dynamic 3-D sound.

• Standard Recovery Rectifier
• Voltage max: 1000V
• Current Rating: 1A
• Forward Current: 1A
• Forward Current Avg Rectified, IF(AV): 1A
• Forward Surge Current Max, Ifsm: 1A
• Forward Voltage: 1 V
• Forward Voltage Max, VF:1.3V
• Pack of 10 pcs

2 tubes, matched as pair

Premium power beam tetrode continuing in the Tung-Sol legacy. The ultimate in musical tone and smooth overdrive, STR delivers the sound that established Tung-Sol as the benchmark of quality.
Faithful re-issue of the original Tung-Sol STR, built to the same “Special Tube Request” specs of amp manufacturers of the 60s.

Files

• Datasheet



• Type: HV ceramic disk capacitor
•   Epoxy resin molding
•   (insulating and flame retardant)
• Voltage Rating: 2 kV
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: 3 mm x 7 mm
• Grid: 7,5

• Type: HV ceramic disk capacitor
•   Epoxy resin molding
•   (insulating and flame retardant)
• Voltage Rating: 2 kV
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: 3 mm x 7 mm
• Grid: 7,5
