Three corners has my hat...
and also the Tricone XXL® jack plug (Art.-Nr.:hc-hij63tc-sm) which you can configure yourself on the Tricone XXL® cable without
using a soldering gun. With the Tricone XXL set you cannot only make your own guitar cables, instrument
cables and patch cables very easyily, but also repair them on site, if necessary - in record time.

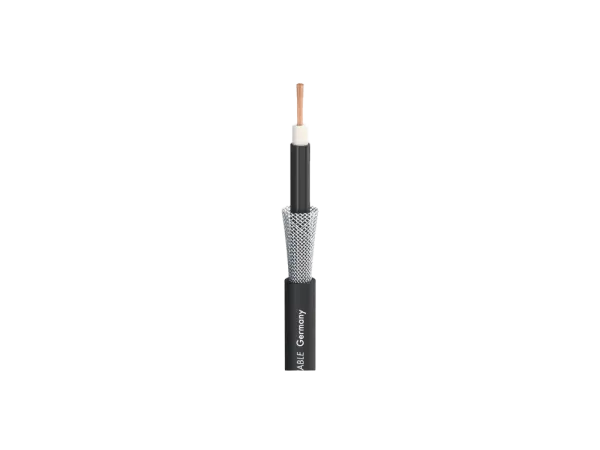

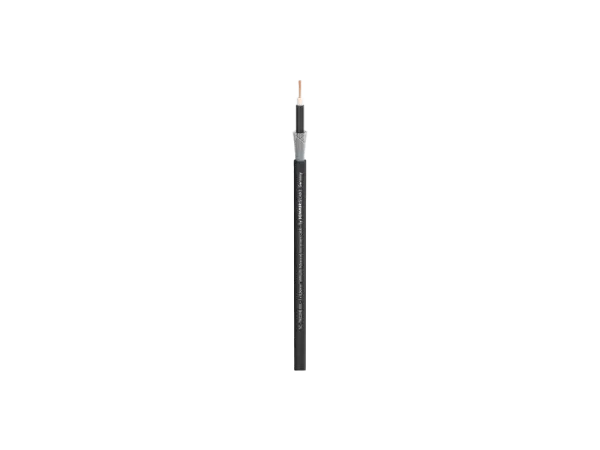

The Tricone XXL® has a fat PE foam insulation which is firmly enclosed and held in place by a carbon screen.
This will optimise the capacitance and ensure a loss-free treble reproduction evern over longer distances.
This design and the Cu mesh screen will perfectly protect against external interference.
The special LONGLIFE COMPOUND jacket ensures a high tread resistance and tensile strength.
PRODUCT ADVANTAGES: - Powerful, clear sound with the transmission of any instrument signals
- Dual shielding by Cu mesh screen and conductive carbon screen
- Highly flexible and easy to reel because of its fine single litz design
- Extremely durable and rugged due to LONGLIFE COMPOUND jacket
APPLICATION: - High-quality guitar lead for stage & studio
- Unbalanced cable for all string instruments, keyboards, samplers, mixing desks etc.
TECHNICAL DATA: - Construction LI2Y(LS)CY 1x0,50mm2
- Jacket, diameter LLC (Long Life Compond) 5,9 mm
- AWG 20
- Inner conductors 1 x 0,50 mm2
- Copper strand per conductor 28 x 0,15 mm
- Conductor insulation Foam/skin-PE 2,8 mm
- Shielding copper spiral tin-plated + semiconductor
- Shielding factor 100 %
- Temperature range min. -25 °C
- Temperature range max. 60 °C
- Fire load per m 0,27 kWh
- Weight per 1 m 4 g
- Color black
ELECTRICAL DATA: - Capac. cond./shield. per 1 m 88 pF
- Cond. resistance per 1 km 90 Ohm
- Insulation resist. per 1 km 1 MOhm
