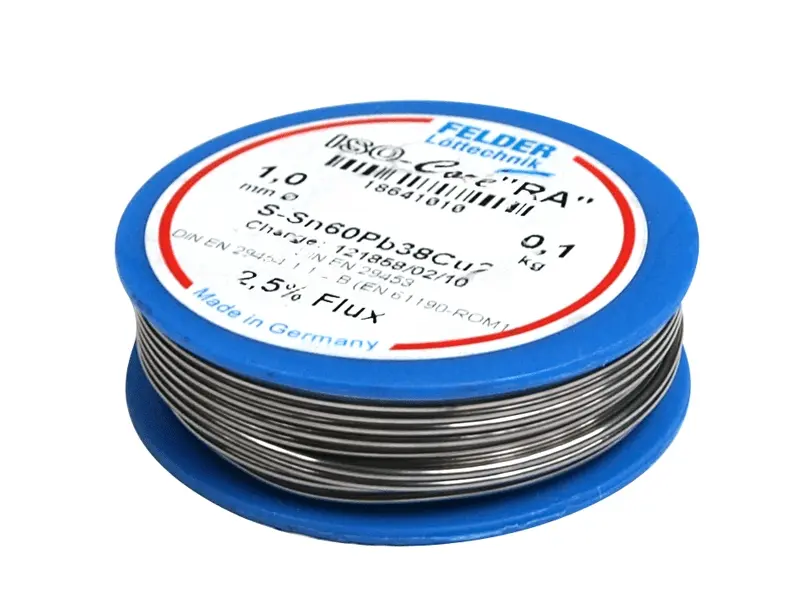

Solder 1,0 mm² 100 g

Description

Solder with flux core
Ideal for fine soldering and contact soldering jobs requiring corrosion-resistance and high production working speed.
DIN EN ISO 9453: Sn60Pb39Cu1
DIN EN 61190: Sn60Pb38Cu02
Melting range: 183 to 190 °C
Solder diameter: 1,0 mm²
Spool size: 100 g

Manufacturer

Herstellerinformationen | Manufacturer Information
Felder GmbH Löttechnik
Im Lipperfeld 11
46047 Oberhausen
Germany
https://www.felder.de/
