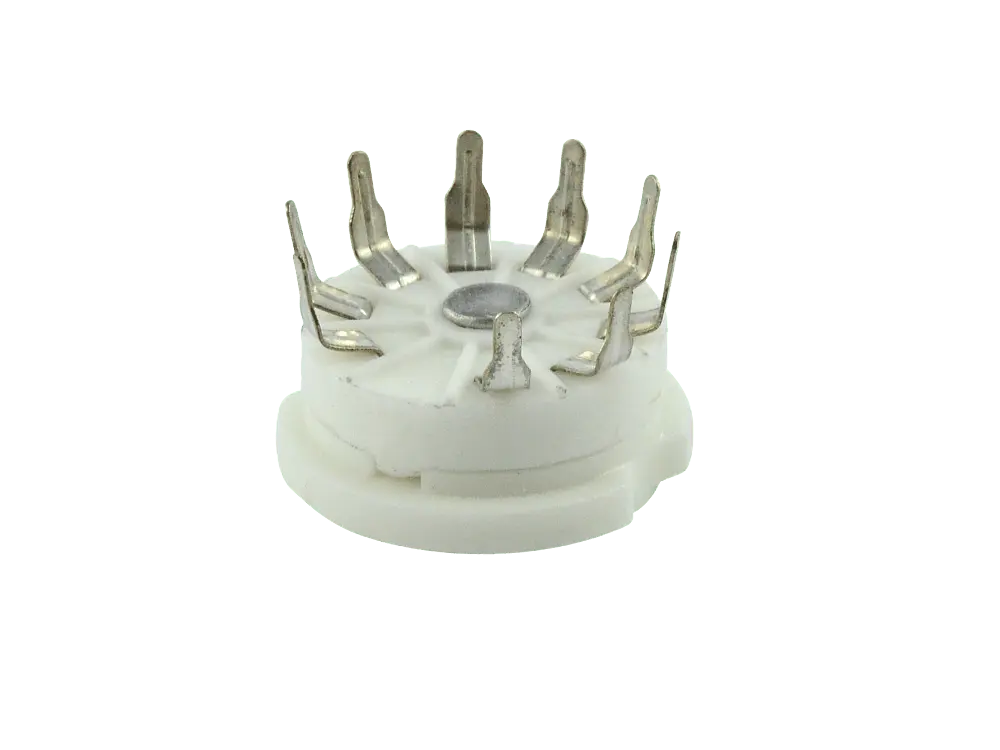

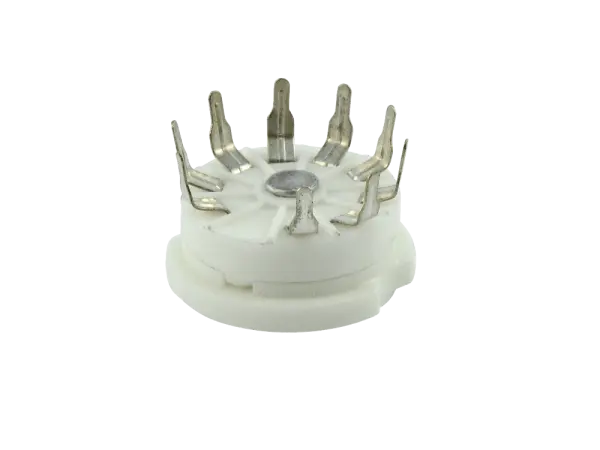

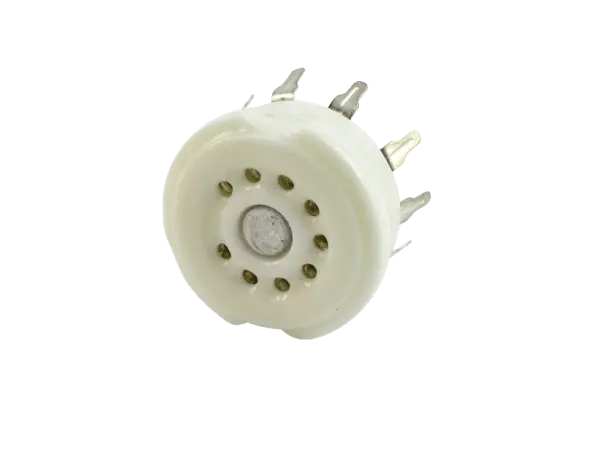

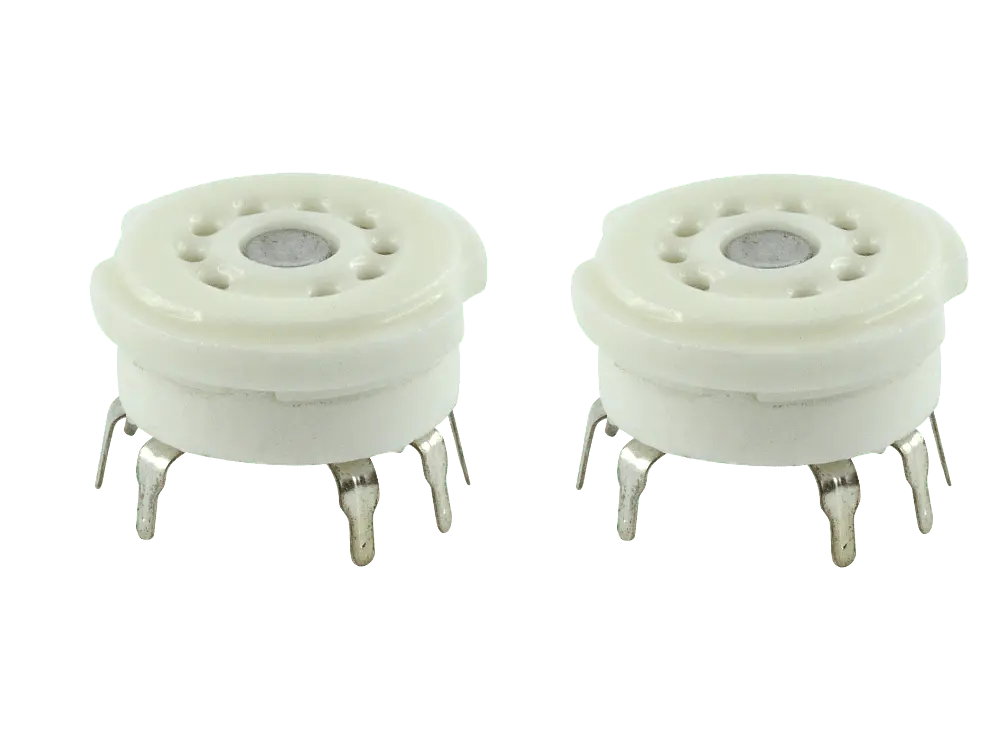

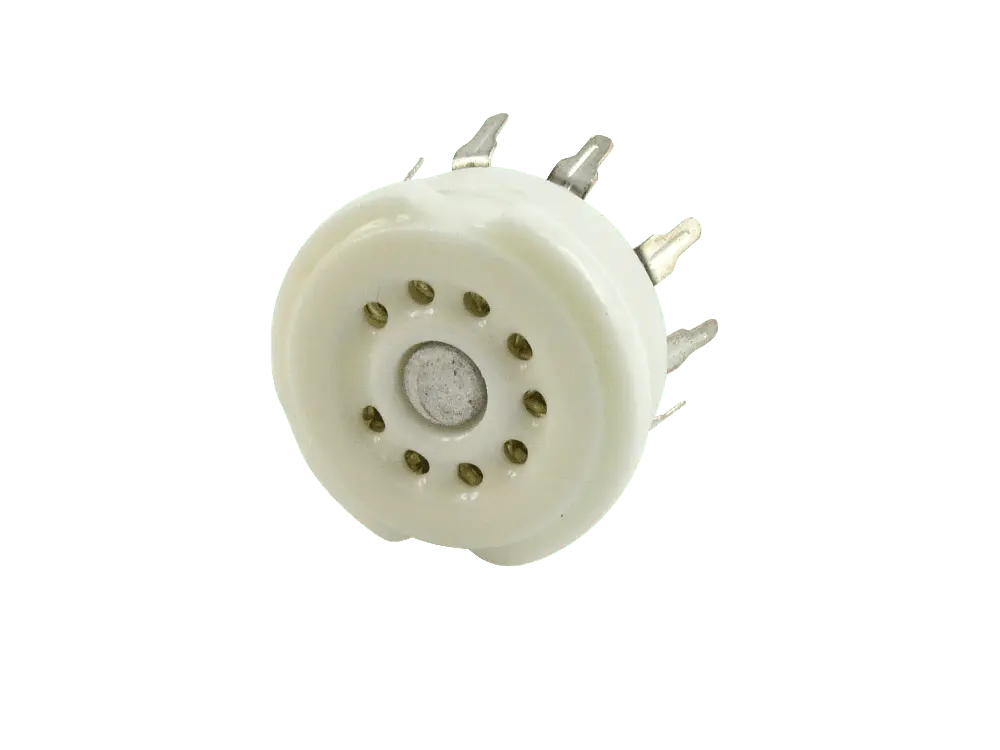

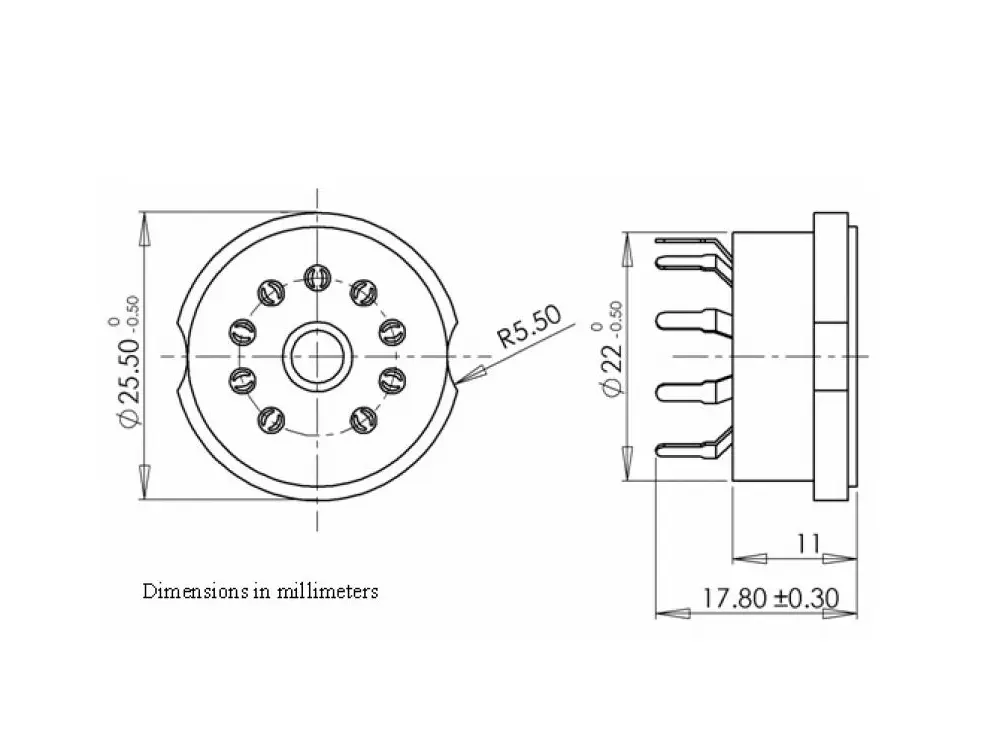

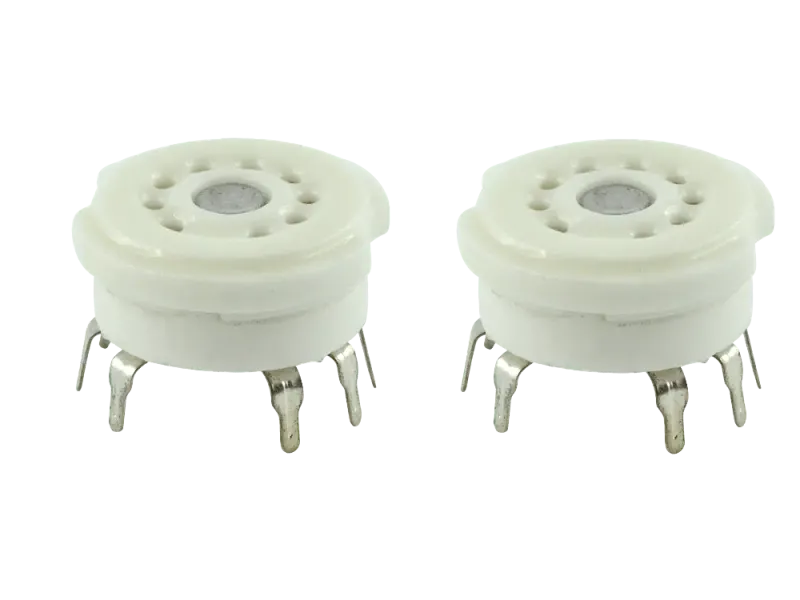

Socket Noval Ceramic PC Mount, Pack of 2

• RCA Phono socket gold plated with Teflon insulation
• Fixing Hole: 8 mm
• 1 x black
• 1 x red

Cliff 1160 mono jack, vintage-style

• Jack socket, mono
• switched
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug
• Used by Marshall and many others

• Datasheet

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Type: Chickenhead, Mini
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 22.75 x 18.7 mm
• Mounting: Set-Screw

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet

• Type: Octal Socket Fender Style
• Version: Ceramic Chassis mount
•   w/mounting bracket
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550,
•   KT66/77/88 etc.

• Type: Noval Socket Belton VT9
• Version: High quality Micalex socket
• Termination Style: print / pcb mount
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
•   EZ81, EL844 etc.

• Version: High quality Micalex socket
• Glassfiber filled PPS black body
• Termination Style: print / pcb mount
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.
