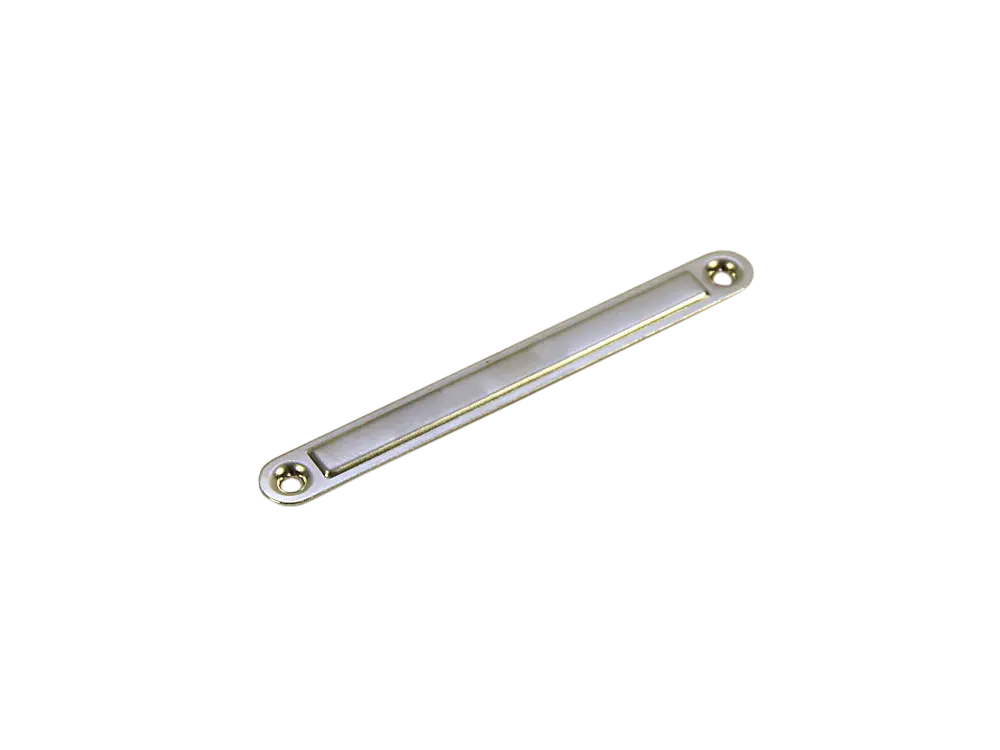

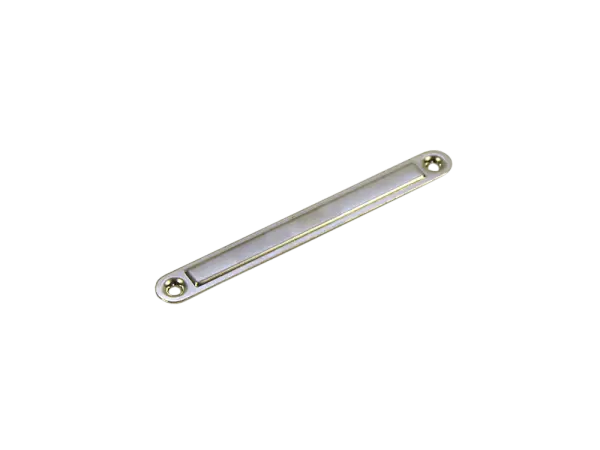

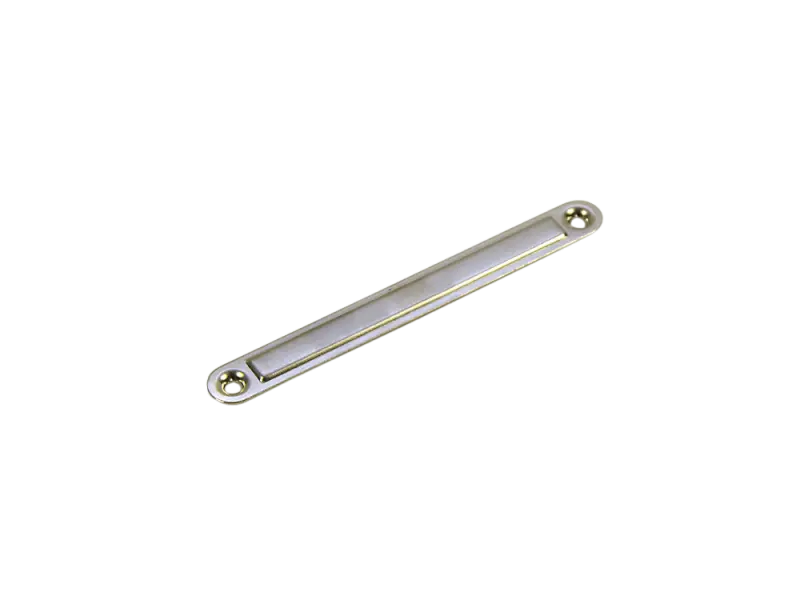

Chassis Strap Large

• Matching srew for the chassis straps.
• Size: UNC 8-32 x 3-1/4
• Fender®  Part # 002-2236-049
• price per screw

• Matching nut for the chassis straps screws.
• Set of 10
• UNC: 8-32 x 3 1/4

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

TT Cable Speaker Cable

• Length: 0,5 m
• Color: grey
• 1st Jack: Mono 6,3 mm
• 2nd Jack: Mono 6,3 mm
• Cable type: Sommer Cable Typ SC-MERIDIAN SP215 2 x 1,5 mm², grey (#so415-0056)

• Type: Film capacitor
•   self-healing
• Dielectric: polyethylene terephthalate
• Capacitance: 0,047 µF
• Voltage Rating: 400 V
• Tolerance: - 10 % / +10 %
• IEC climate category: 55/125/56
• Operating Temperature Range: - 55°C / + 125 °C
• Dimensions: 3,2 mm x 6,5 mm x 9 mm
• Termination Style: radial
• Grid: 7,5

• Type: Film capacitor
•   self-healing
• Dielectric: polyethylene terephthalate
• Capacitance: 0,1 µF
• Voltage Rating: 400 V
• Tolerance: - 10 % / +10 %
• IEC climate category: 55/125/56
• Operating Temperature Range: - 55°C / + 125 °C
• Dimensions: 6 mm x 12 mm x 13 mm
• Termination Style: radial
• Grid: 10

• Matching srew for the chassis straps.
• Size: UNC 8-32 x 3-1/4
• Fender®  Part # 002-2236-049
• price per screw

Set of 4 feet with screws.

Original Fender part number 099-3900-000

Fender Blackface Twin Reverb Style Chassis, bare
Without drills and cutouts

• Size : 623 x 208 x 45 mm
• Material: 2 mm Aluminium
• Protectionfoil Outside
• Made in Germany

Note: Aluminium housings may show machining marks on the surface due to production.

Files:

• Datasheet

Fender Blackface Bassman Style Chassis, bare
Without drills and cutouts

• Size : 516 x 203 x 45 mm
• Material: 2 mm Aluminium
• Protectionfoil Outside
• Made in Germany

Note: Aluminium housings may show machining marks on the surface due to production.

Files:

• Datasheet

• Chassis Straps small size
• Mounting hole distance around 76 mm
• one piece

• Chassis Straps, medium size
• Mounting hole distance around 101 mm
• one piece

Width approx. 135 cm
Price per running meter
Color reproduction depends on the computer monitor and may vary
Supplied as one continuous piece when ordering more than 1 m

Material:

• 80% PVC film
• 20% polyester-cotton fabric
• REACH compliant

Please note!
When ordering more than 1 m of Tolex and selecting Deutsche Post / DHL Paket or Express as the shipping method, the Tolex will be cut to a width of approx. 115 cm. This is due to the maximum permitted parcel length of 120 cm for these shipping services.
To receive the full roll width, GLS or ExprexxXL must be selected as the shipping method.

• Size: 140 x 47 mm
• Material: FR4, 2 mm
• Color: black
• Turrets: 2 x 15
