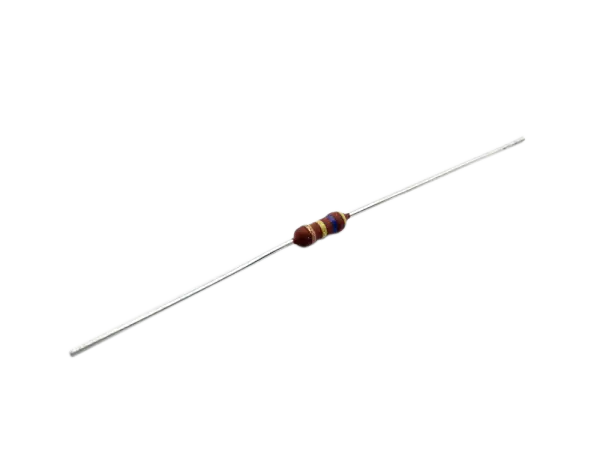

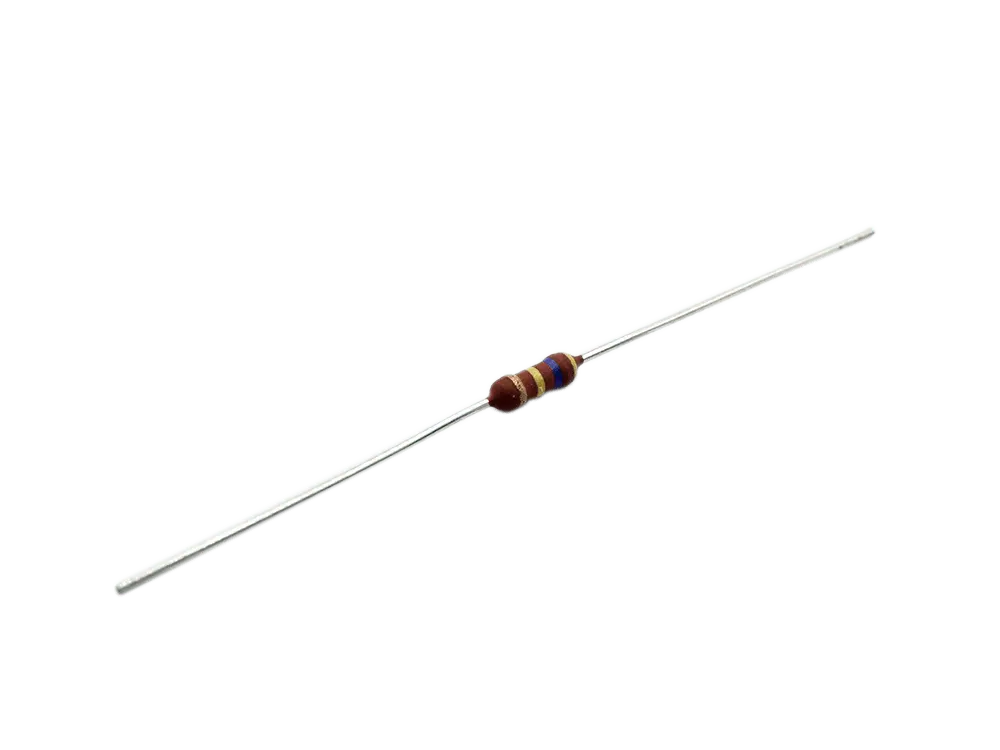

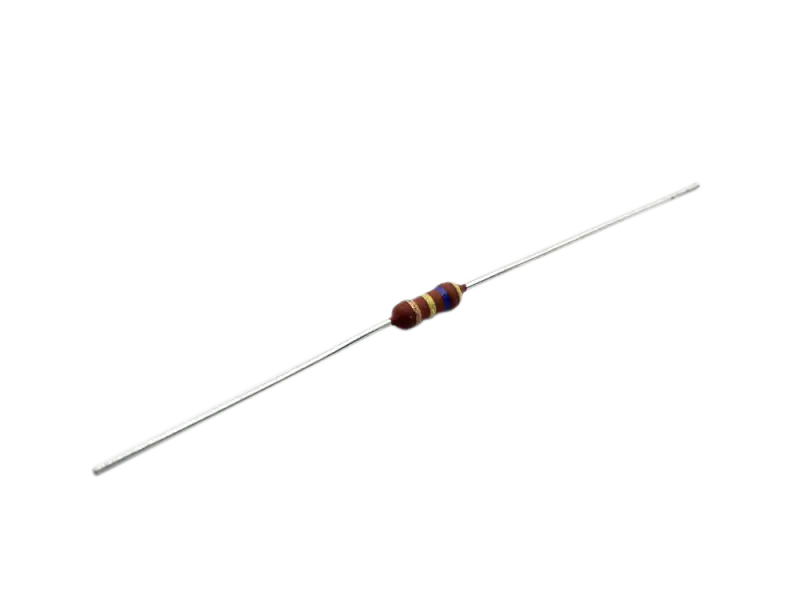

Resistor Metaloxide 1 Watt / 820 Ohms

Metaloxide film resistor

• Nominal Power: 1 Watt
• Max. cont. Working Voltage:: 500 V RMS
• Tolerance: +/- 1%
• Temperature range: -55° C...200° C
• Flame retardant
• Very Small Size

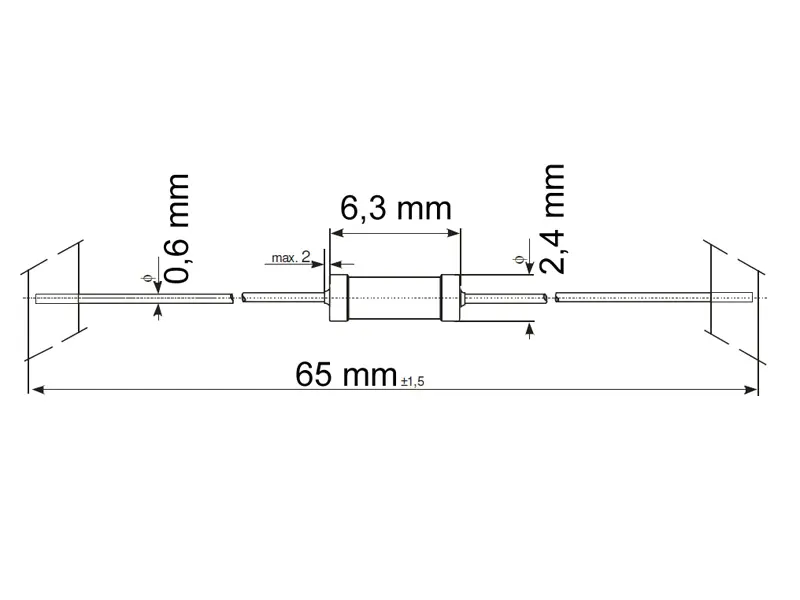

• Size: 6,3 x 2,4 mm

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS

Carbonfilm Resistor - Pack of 5

• Low noise, small size, high power rating
• Power: 1 Watt
• Voltag: 500 V working / 1000 V overload
• Axial Leads
• -55° C - 155° C
• 12 * 5 mm
• RoHS

Carbonfilm Resistor
Low noise, small size, high power rating
Power: 1 Watt
Voltag: 500 V working / 1000 V overload
Axial Leads
-55° C - 155° C
12 * 5 mm
RoHS

• Spot welded heavy duty construction chassis.
• Natural finish as shown above - protected through manufacturing and shipping with a plastic skin cover to ensure a high quality finish.
• Optional bottom plates are punched with 4 holes (Chassis requires drilling to install optional bottom plates).
• Hardware not provided, please order separately
• Size: 203 x 152 x 51 mm

Files:

• Datasheet

• Bracket for mounting noval sockets horizontal e.g. in 19" Racks
• Material: 1,5 mm Aluminium
• Size: 90 x 38 mm
• Designed for Belton sockets

Bracket for mounting noval sockets horizontal e.g. in 19" Racks

• Material: 1,5 mm Aluminium
• Attention: designed for Belton sockets

• Type: Countersunk Head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 965
• ISO: 7046
• Price: per pcs.

The TT VPUMP kit is a very effective working voltage converter which generates an output voltage of 90 V DC to 220 V DC  from a 12V DC input voltage.
The circuit is in use for many years now and it is proven. In this kit the circuit has been adapted to a compact size and optimized for use in small preamplifier chassis. So it is an ideal HV power supply for tube stompboxes and preamps without the need of additional transformers and HV filter capacitors.

The VPump can be operated with a standard 12V DC switching power supply.
The switching power supply is not included in the kit.

Specification:
Input Voltage: 12 V DC @ min 4 VA
Output Voltage: 90 - 220 V DC, adjustable
Output Current: 15 mA @ 220 V DC max

Files:

• Layout PCB V1.4
• Layout PCB V1.5
• Layout PCB V1.6

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

• Datasheet

• LED 5,0 mm
• 6000 mcd
• forward voltage 3 V
• blue
