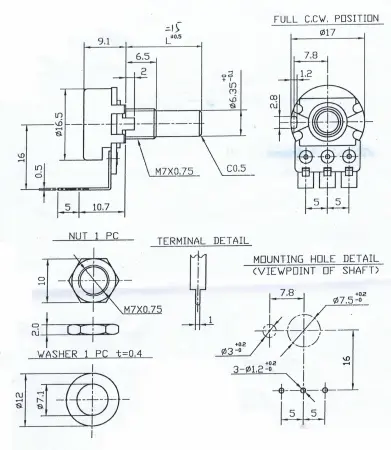

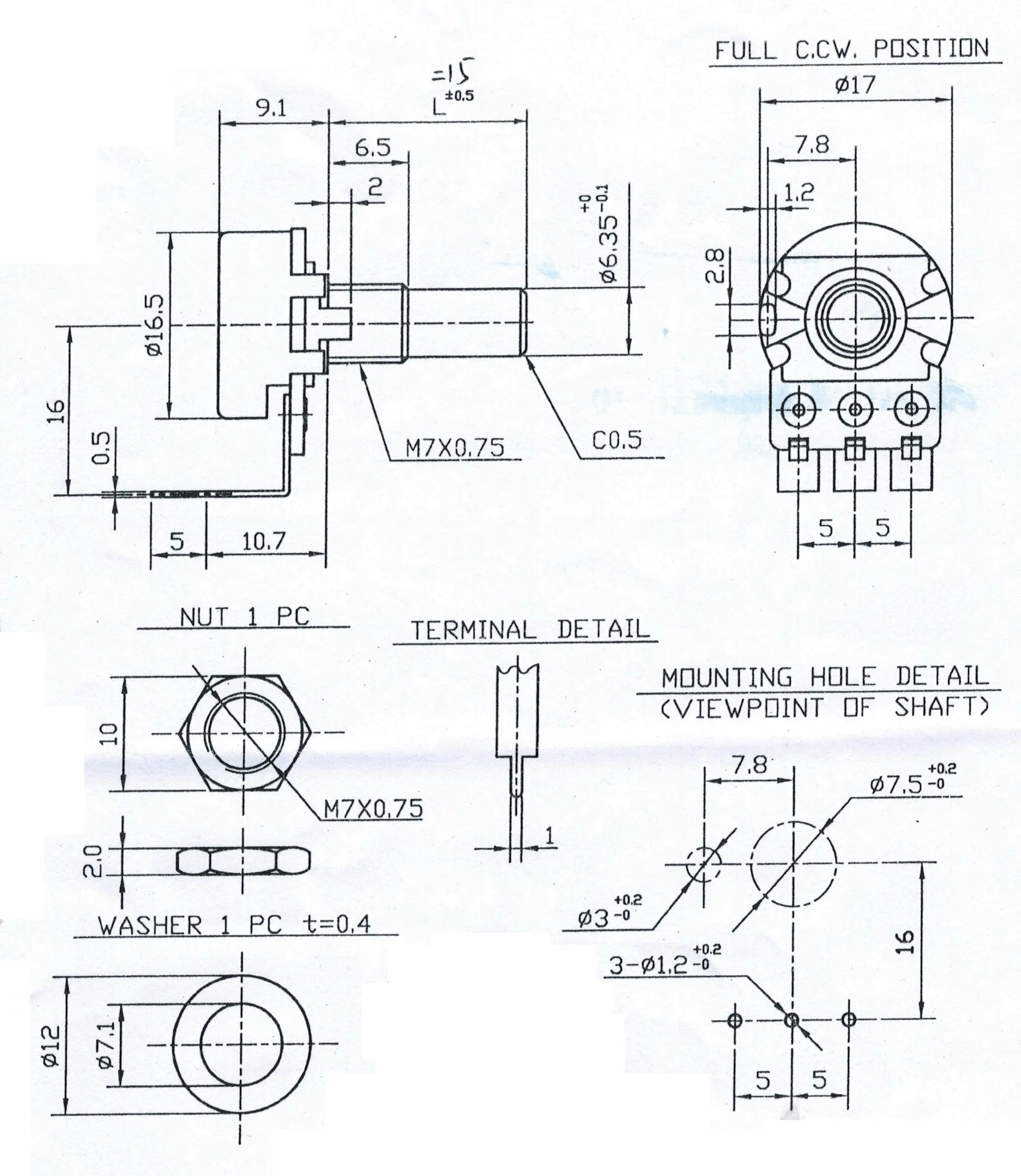

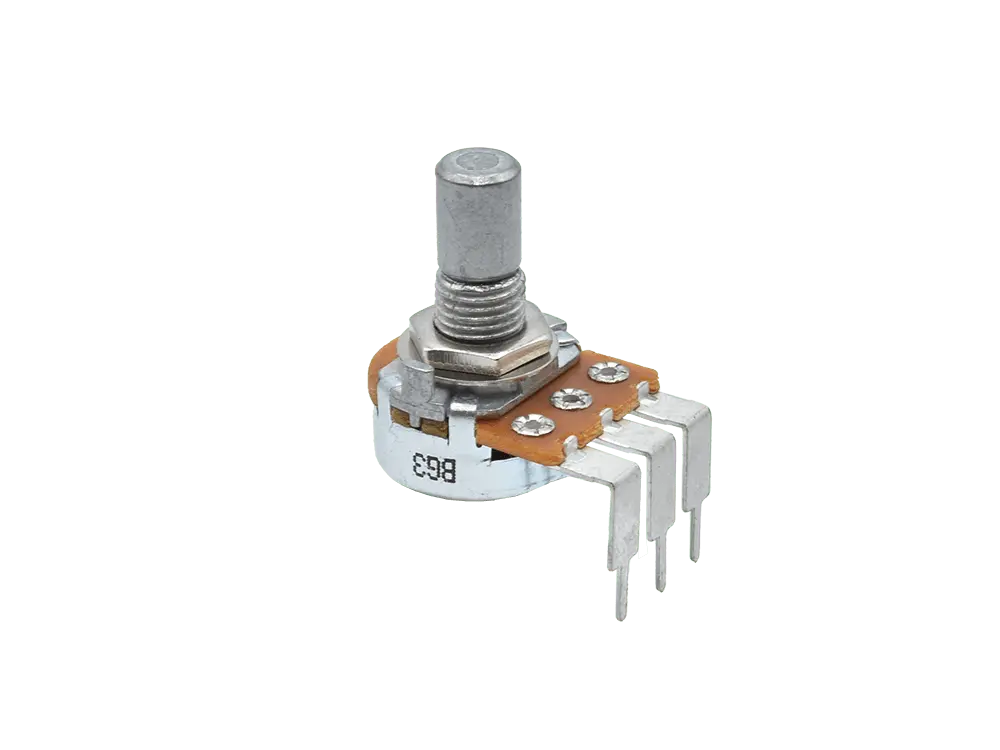

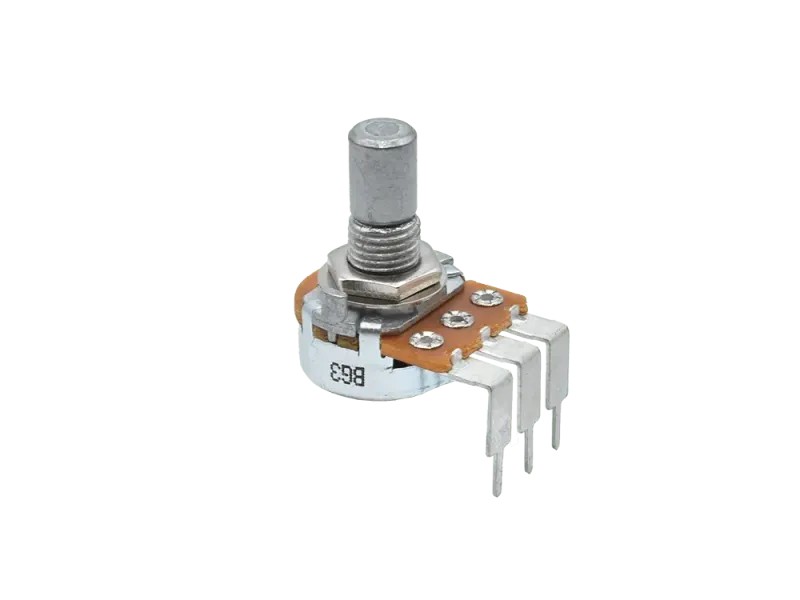

Potentiometer Alpha 16 PCB 1M log / Audio - angled

Fender® style lamp jewels

• Threading: 9/16 - 24

for Fender Pilot-Light

• BA9s
• #47
• 6,3 V
• LED
• white

Replacment for Fender Amps

• Chassis Hole: 17,5 mm
• Threading: 9/16 - 24

4 tubes, matched as quad

EL34 II has fuller low mids and low end but does not lose headroom in the high end. Stronger than regular JJ EL34 but not as aggressive as the JJ E34L.

Typical Characteristics

• Ua = 250 V
• Ug3 = 0 V
• Ug2 = 265 V
• Ug1 = -13,5 V
• Ia = 100 mA
• Ig2 = 14,9 mA
• S = 11 mA/V
• Ri = 15 kΩ
• μg2/g1 = 11

Limiting Values

• Ua0 = 2000 V
• Ua = 800 V
• Wa(max) = 25 W
• Ug20 = 800 V
• Ug2 = 450 V
• Wg2(max) = 8 W
• Ik = 150 mA
• Uk/f = 100 V
• Rk/f = 20 kΩ

Files:

• Datasheet

• Type: Multisection Capacitor
• Capacitance: 50 + 50 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 450 V
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

4 tubes, matched as quad

Premium high-voltage power pentode, featuring improved materials and workmanship over the original EL34B. Higher impedance design with increased touch responsiveness.

Files:

• Datasheet
