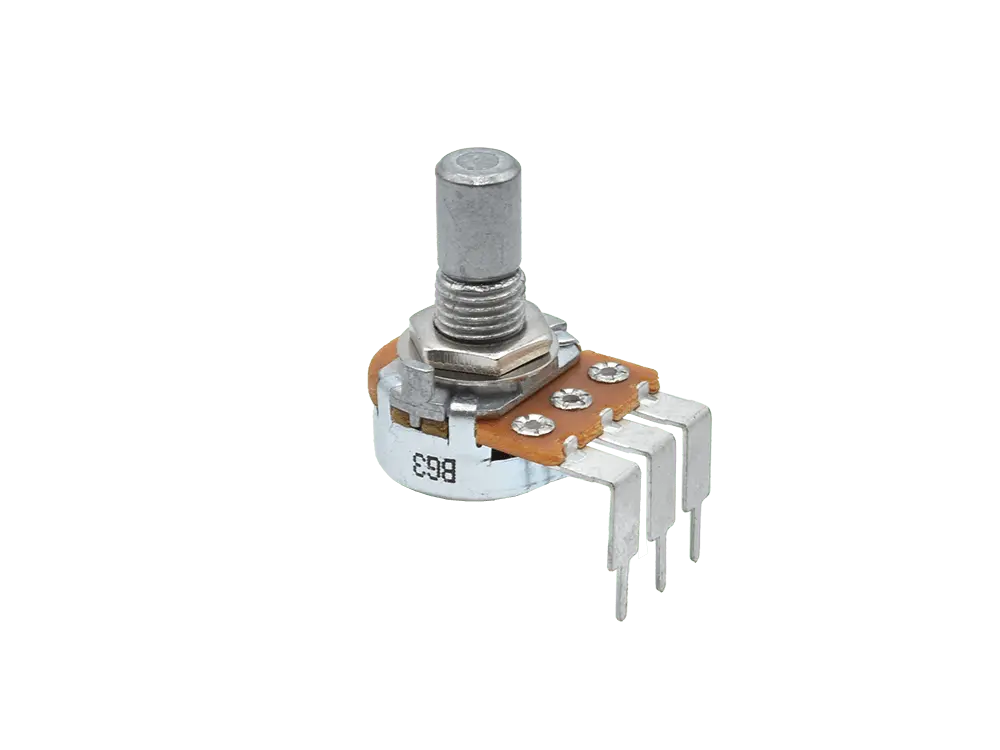

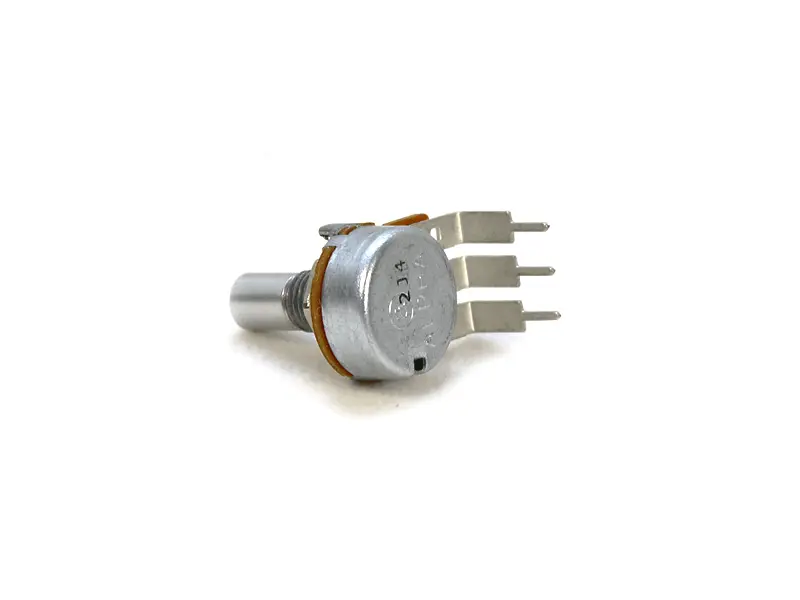

Potentiometer Alpha 16 PCB 500k linear - angled

Product No.:
apo16AF-B500k
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.008 kg per piece
1,65 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question

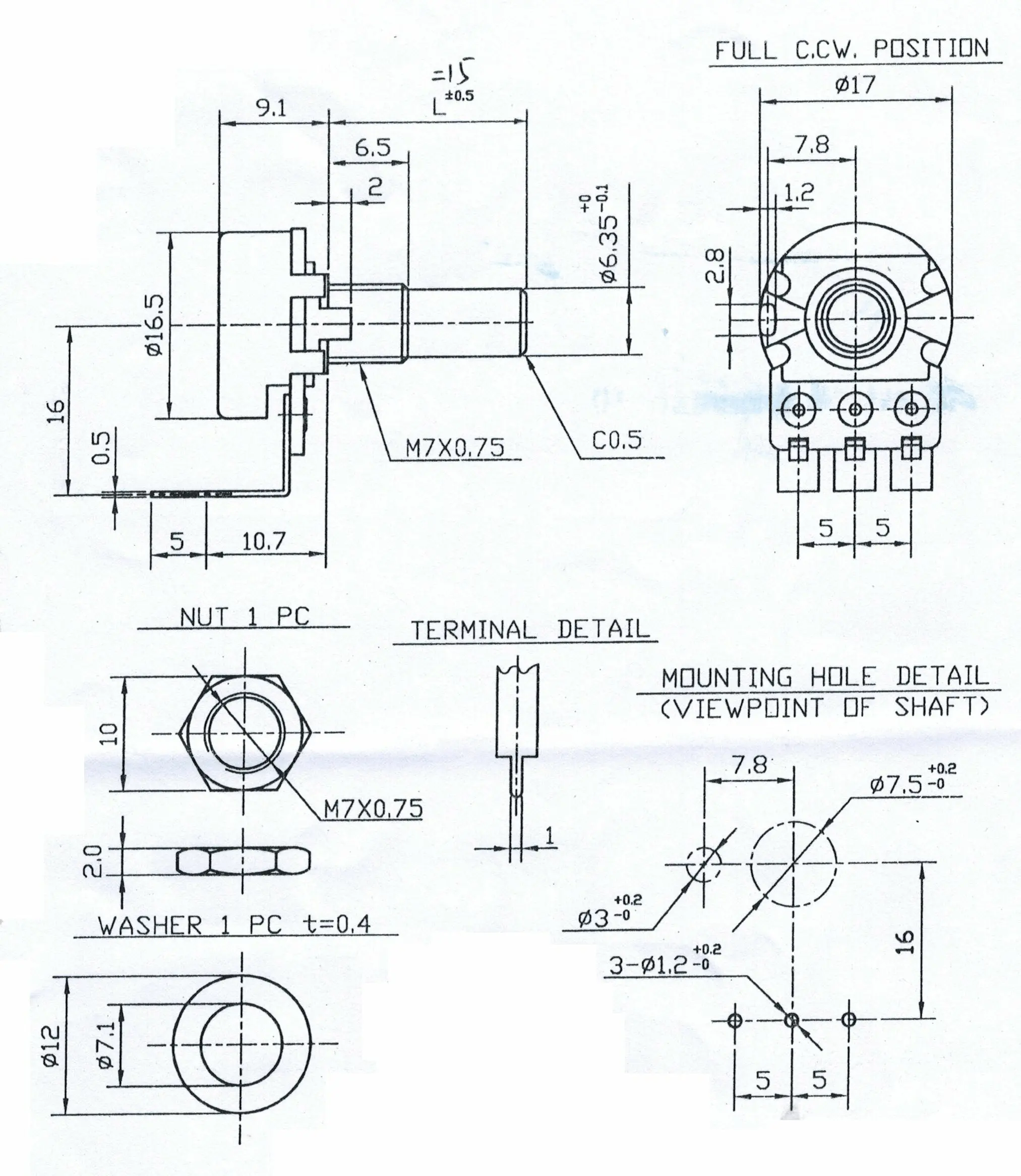

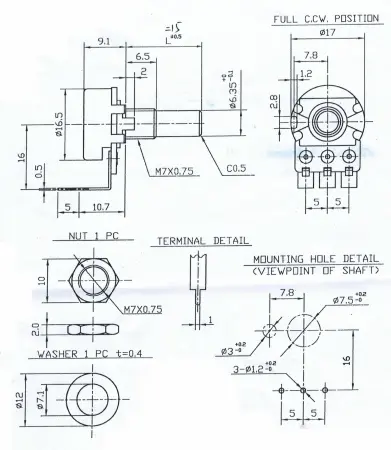

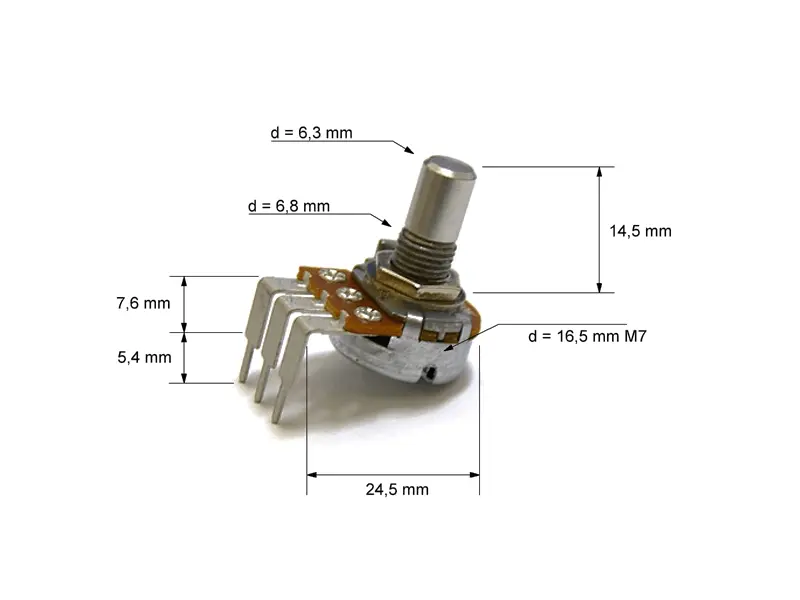

Description
Panel Mount Potentiometer, angled
  • Power Rating: 0,125 W
  • Voltage Rating: 150 V AC
  • Tolerance: 20%
  • Shaft: 6,3 mm, Solid Shaft
  • Shaft length: 14,5 mm
  • Drill Ø: M7 (6,8 mm)
  • Termination: PCB
  • Dimension: 16 mm
Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.

Needed for:

Hex Nut for Alpha PCB 16mm potentiometer, M7 x 0,75 mm - HZ92-7-AF
Hex Nut for Alpha PCB 16mm potentiometer, M7 x 0,75 mm - HZ92-7-AF
Hex nut for Alpha Potentiometer series APO-PCB16 and similar, Alpha Item Number HZ92-7-AF
  • Size: M7 x 0,75 mm
  • Price per nut
0,09 €
