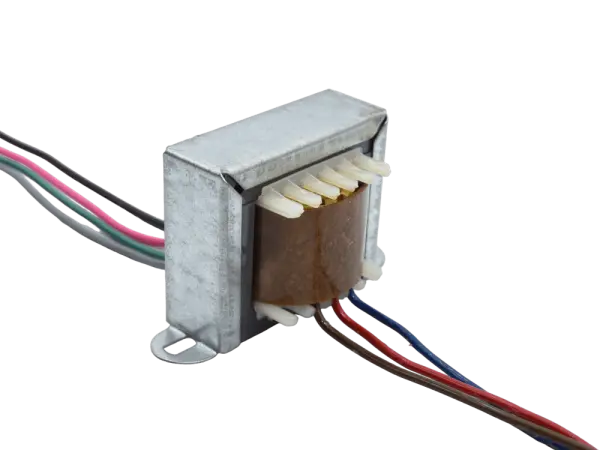

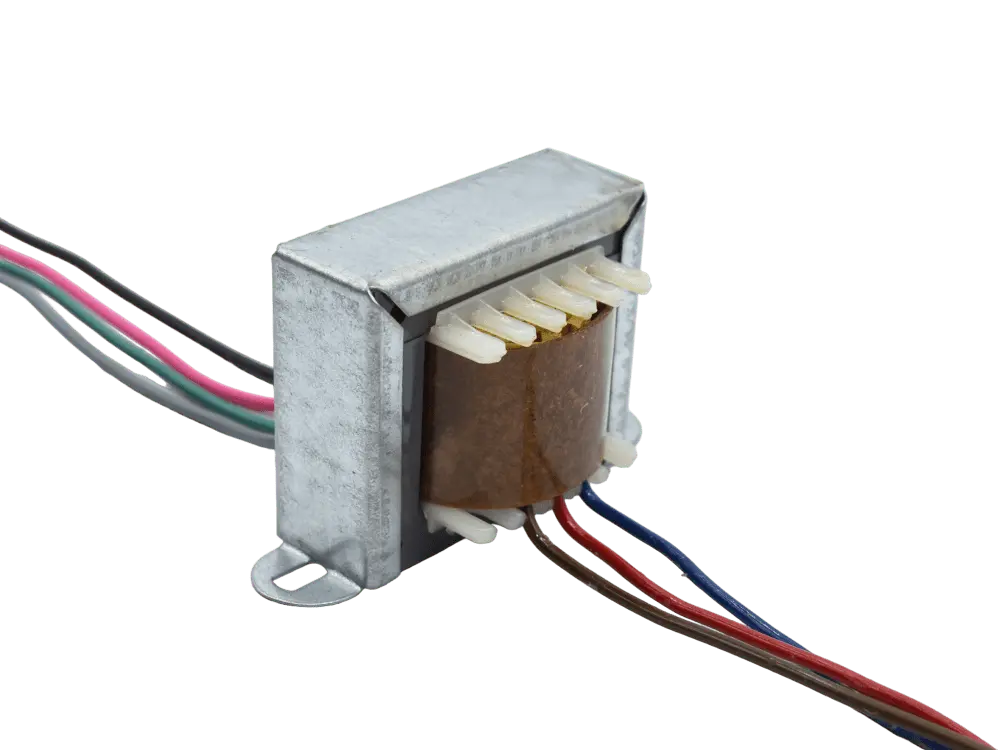

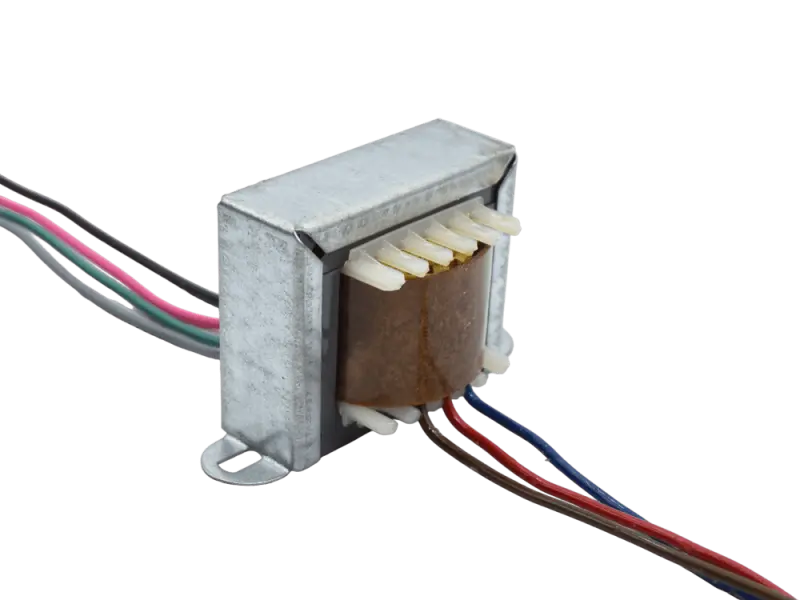

Output-Transformer LoW Push-Pull 8 W
Output-Transformer LoW Push-Pull 8 W
Output-Transformer LoW Push-Pull 8 W

Output-Transformer LoW Push-Pull 8 W

Product No.:
tt-ot25c
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.3 kg per piece
42,00 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description
Outputtransformer for Tube-Town Low Projects with ECC99 as a powertube
  • Pri: 12k8 Ohm
  • Sec: 4-8-16 Ohm
  • Power: 8 Watt
  • Re (a-a) 250 Ohm +/- 5%
  • Pri. Inductance: 165 H @240V/50 Hz, open circuit
  • Easy connection
  • Large sheet metal package
  • Tight bass, balanced mid - treble ratio
