Tube-Town EZ-Board Size 2

Mobile Preview: Tube-Town EZ-Board Size 2

Description

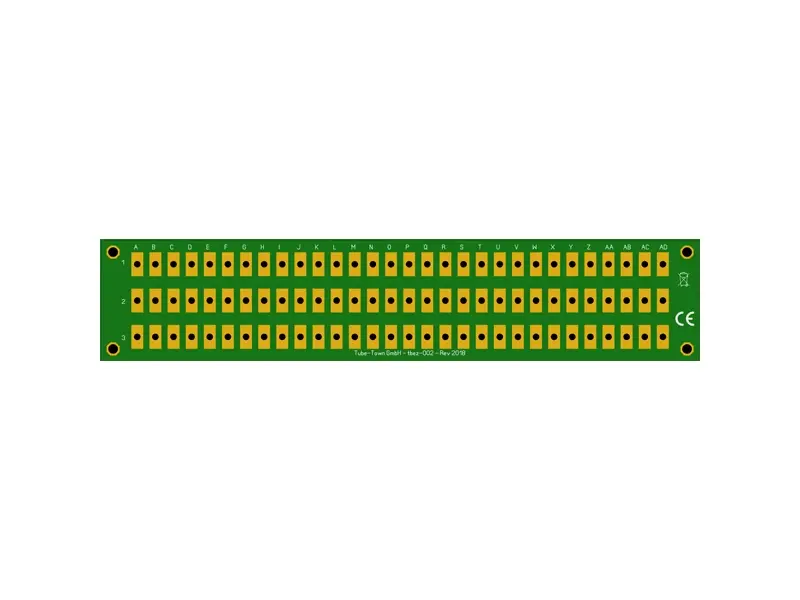

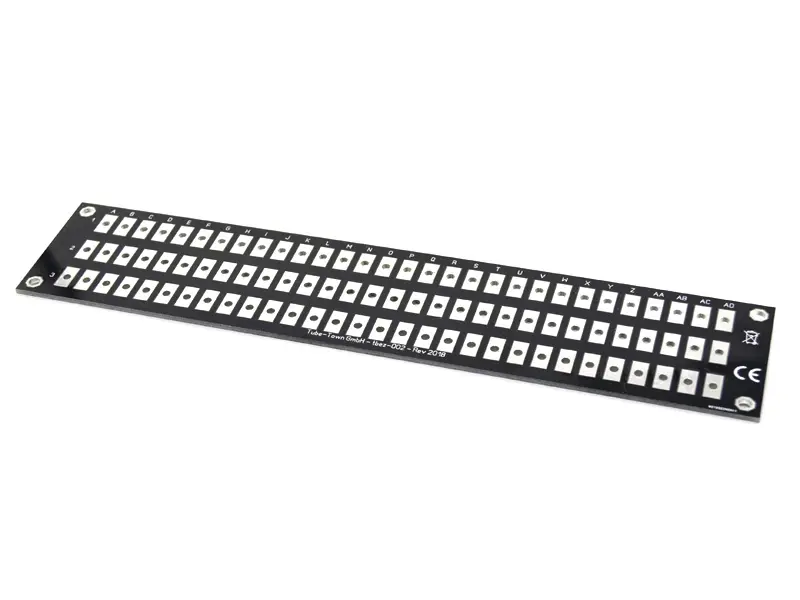

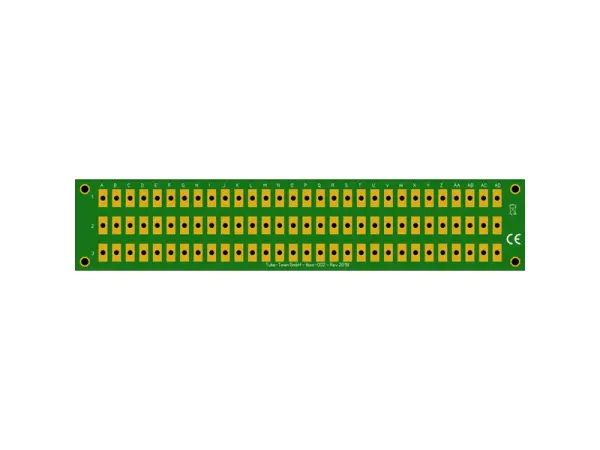

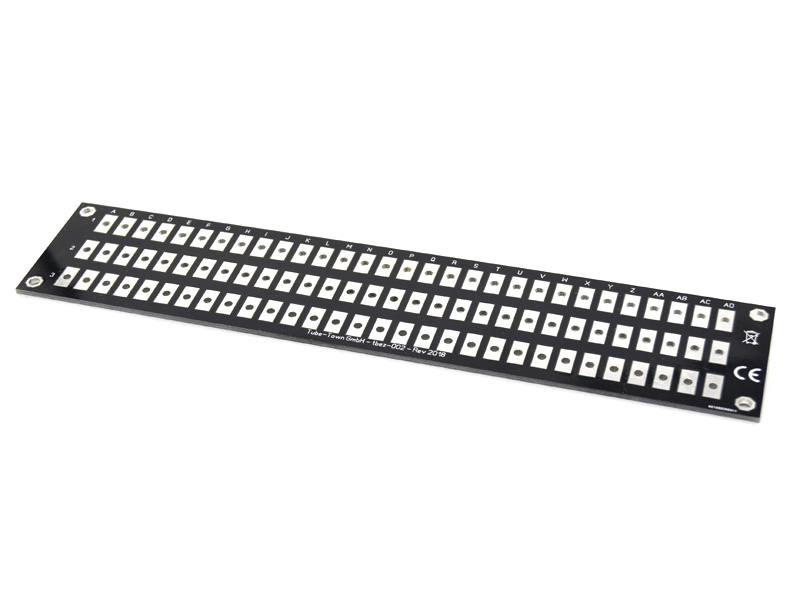

Tube-Town EZ-Board Size 2

Drills: 3 x 30
Size: 50 x 250 mm
Material: 2 mm
No drilling needed! Ready for use.

The EZ-Board an be used as an Eyelett-Board without the need to install any Eyeletts or it can be used with Turrets type 1509-4 or TT Type 32.

Files:

Application Notes Turret-PCB

Manufacturer

Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
