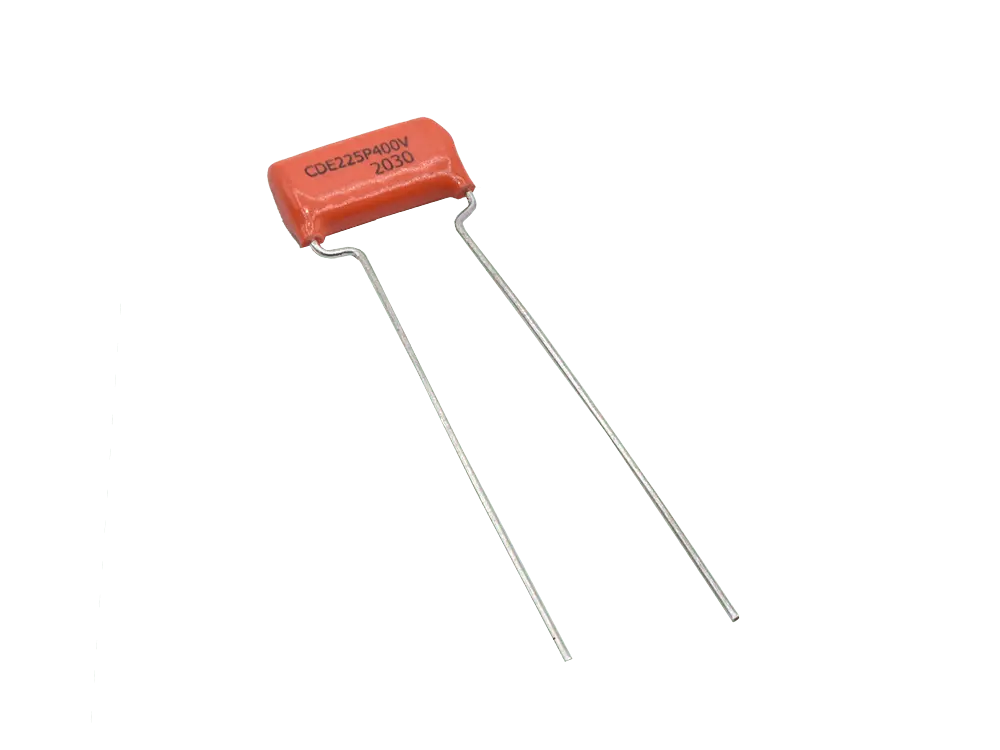

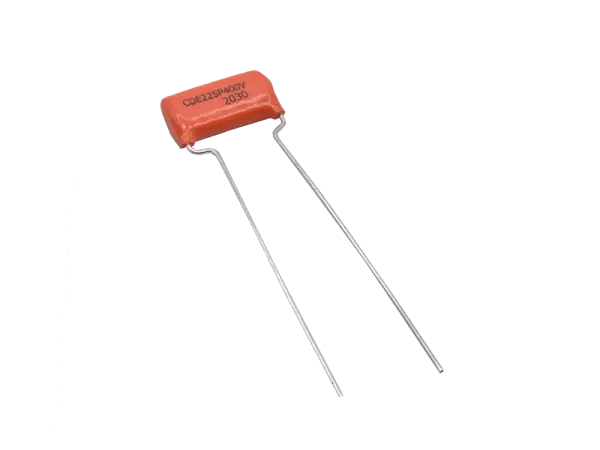

Orange Drop 225P Series 0,22 µF @ 400 V
Orange Drop 225P Series 0,22 µF @ 400 V
Orange Drop 225P Series 0,22 µF @ 400 V

Orange Drop 225P Series 0,22 µF @ 400 V

Product No.:
crd225p-0.22-400
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.008 kg per piece
4,55 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

Vishay ORANGE DROP® 225P

  • Type:  Polyester Film Capacitors
  • Voltage Rating: 400 V
  • Tolerance: - 10 % / +10 %
  • Operating Temperature Range: - 55°C / + 85 °C
  • Termination Style: radial
Documents
Orange Drops 225P Serie Datasheet  (271.02 KB)
