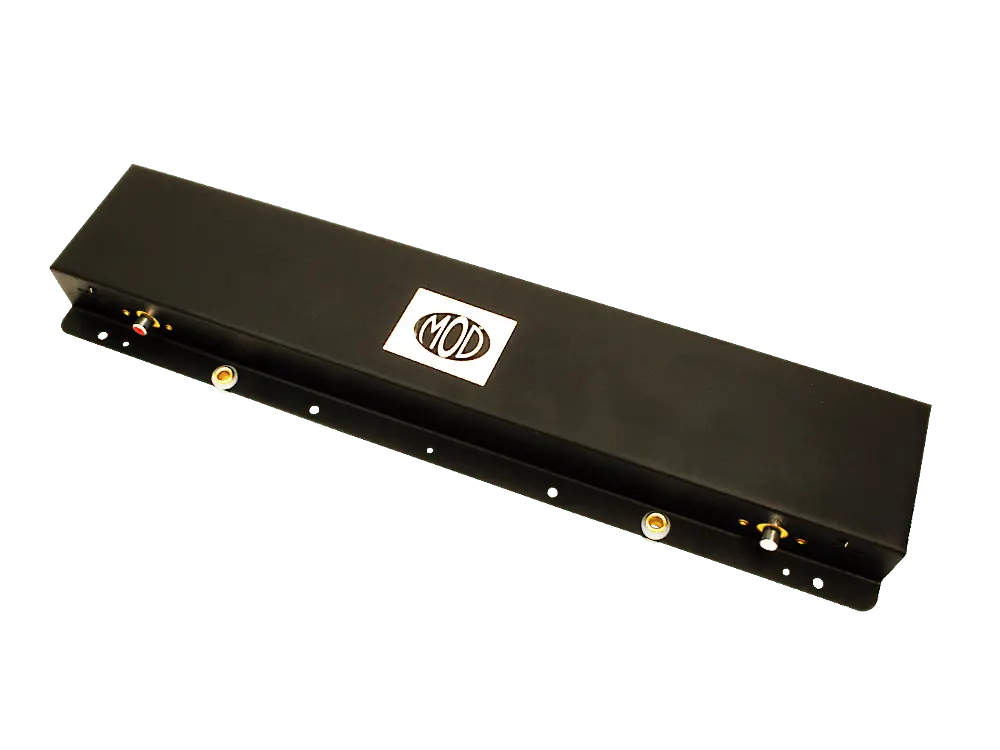

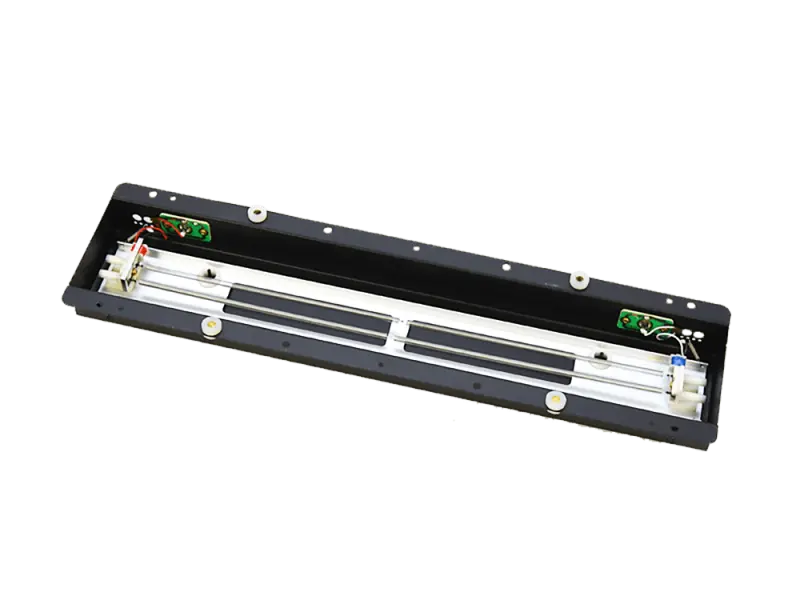

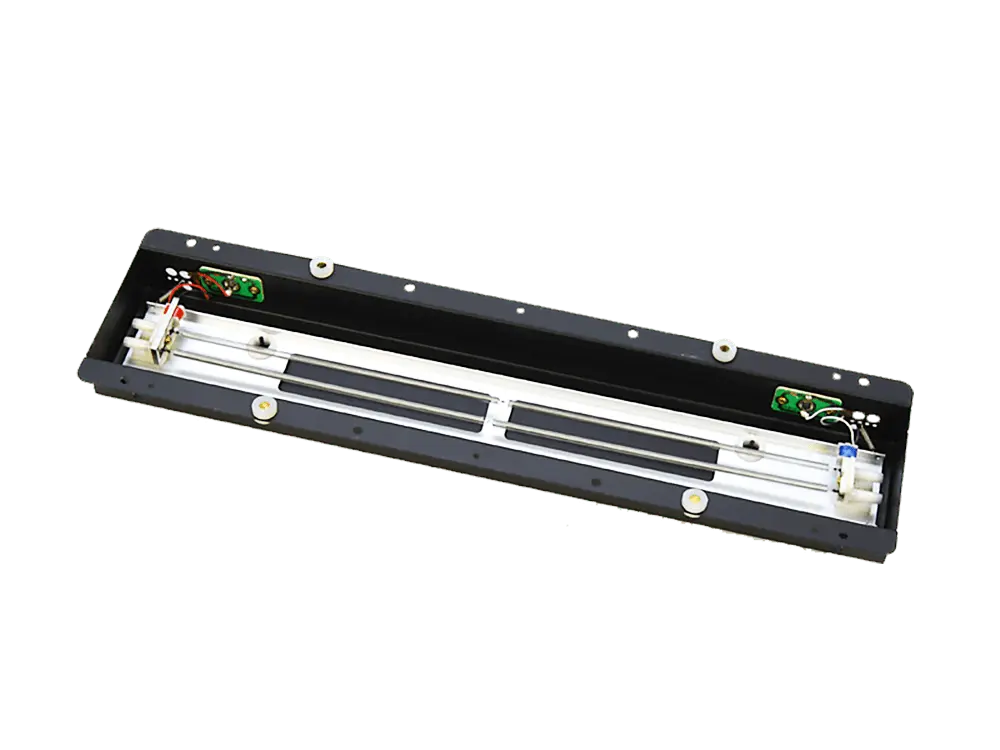

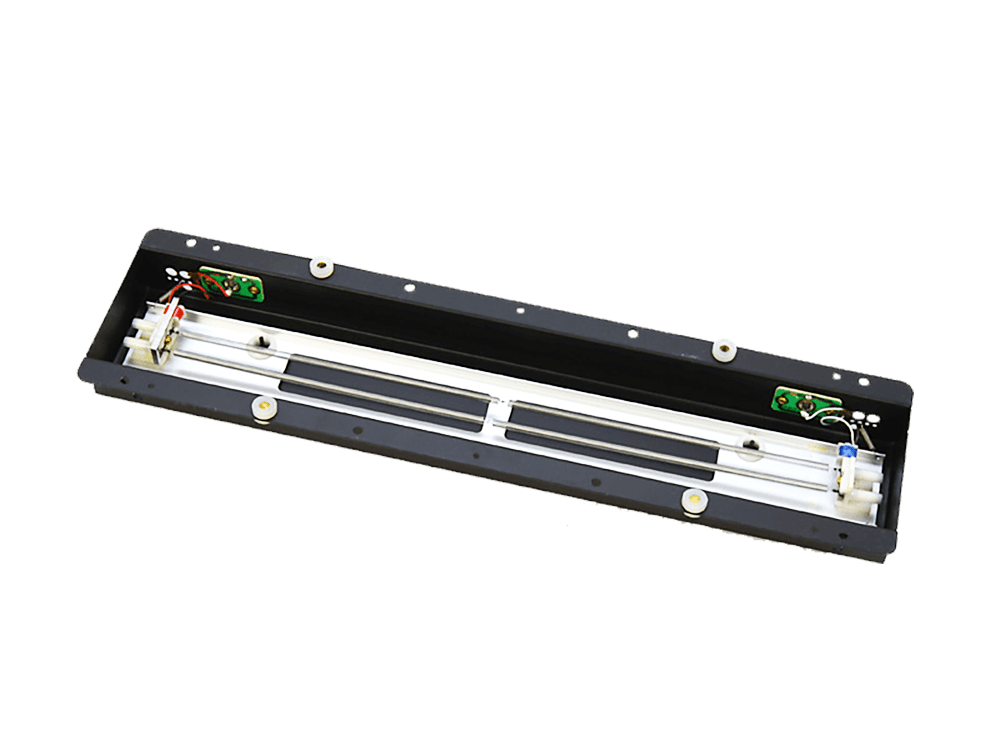

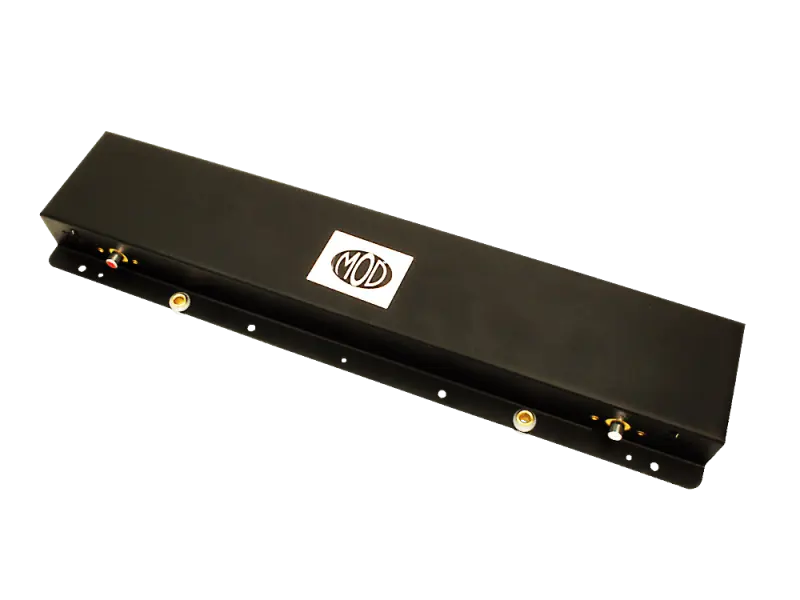

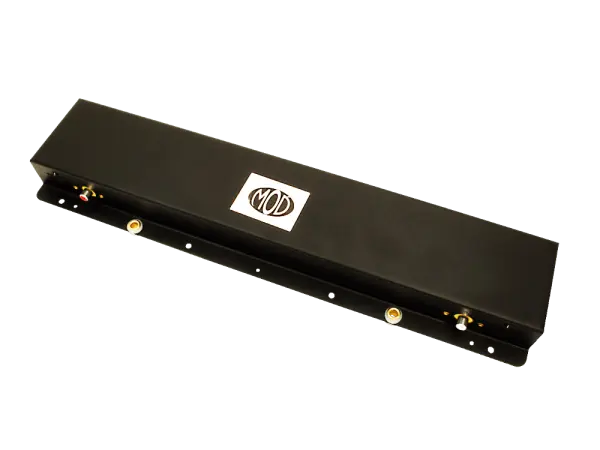

MOD Reverb Tank 4AB1C1B

• Rubber grommets for reverb tanks, package of four.
• Mounting Hole Diameter = 3/8"
• Outer Diameter = 1/2"

This classic big bottle rectifier is the tube of choice for those famous, dual-rectifier amps. Clean and detailed while maintaining a warm and sweet tone, the 5U4GBEH offers gorgeous tube compression and articulate AC/DC conversion. The most desirable replacement ever built.

Files:

• Datasheet

Rectifier
An indirectly heated diode intended for rectification of commercial-frequency alternating current. It has a 140 mA maximum output and filament voltage of 5 V and a filament current of 2 A +/- 0.2 A.

Files:

• Datasheet

4 tubes, matched as quad

The Sovtek 5881 delivers a warm, round tone that "sweetens" any vintage or modern guitar amp design. Chances are if an amp uses 6L6-style output tubes, it has Sovtek 5881's in its sockets. Built to rigid military standards, the 5881 will tolerate higher voltages than any other 6L6. In fact, they're frequently used as replacements for the old 7027 model in vintage Ampegs.

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 + 15 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 25 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 + 33 µF
• Voltage Rating: 450 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 26 mm x 51 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 47 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 21 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 30 mm x 49 mm
• Termination Style: axial

Capacitor Cover for Deluxe Reverb

• Size: 145mm x 76 mm, center to center on the mounting holes
• Fender®  Part # 003-7300-000

4 Tubes matched as quad
The JJ 6L6 is very popular because of its warm sound.

Files:

• Datasheet
