Kit TT PSU Mini
Kit TT PSU Mini
Kit TT PSU Mini

Kit TT PSU Mini

Product No.:
kit-psumini
In stock for immediate delivery. Delivery time depends on the destination country* In stock for immediate delivery. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.115 kg per piece
18,10 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

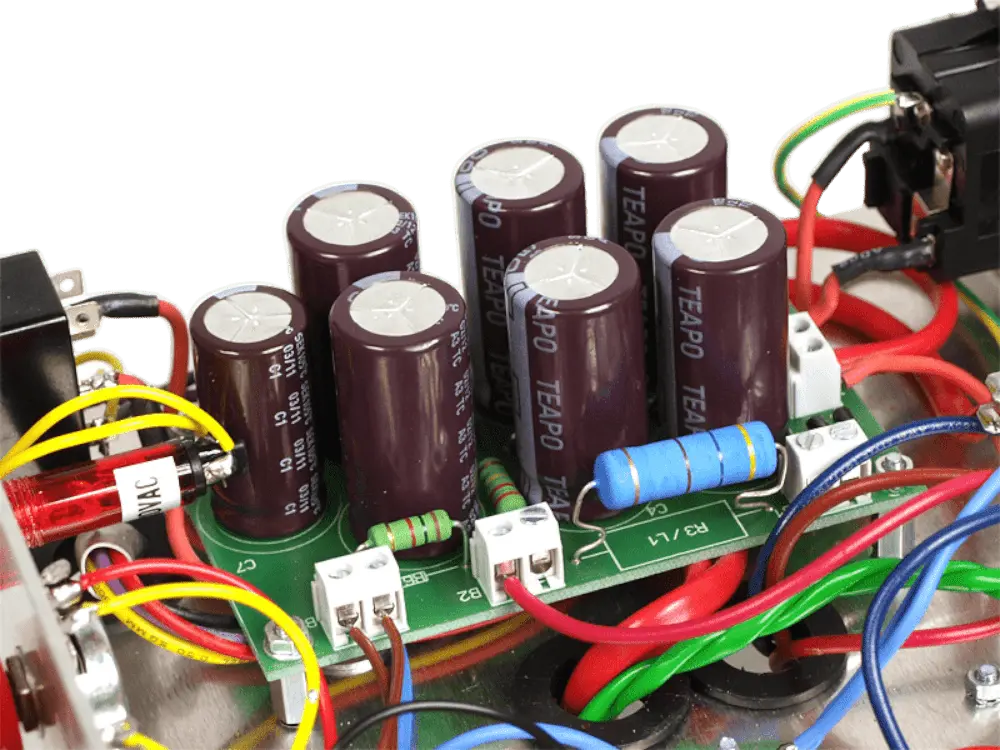

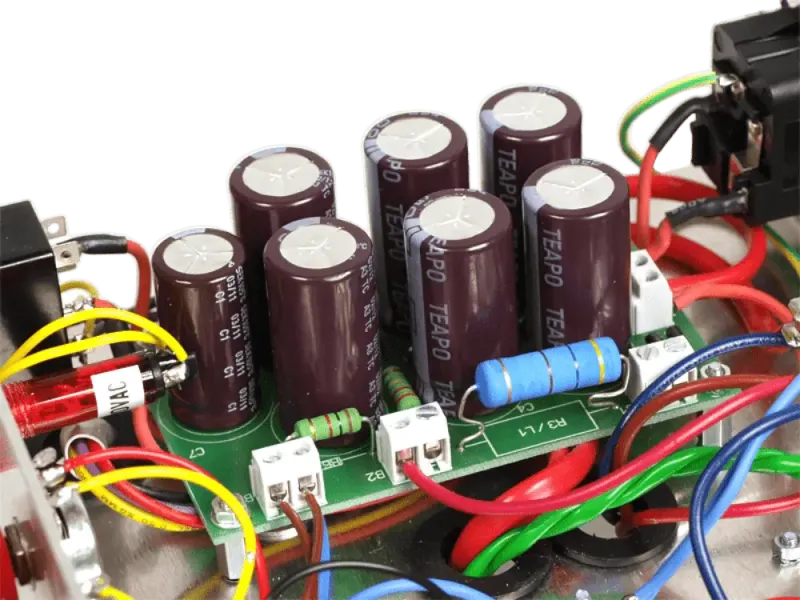

Kit for TT PSU Mini

The kit includes all components except a powertransformer and a choke for building PSU for tube amps. If you want to use a choke instead of the 5 W resistor than you must order the choke that you need separately.
The PSU can handle max 700 V DC at out B1 and B2, 450 V DC at out B3 and is recommended for tube amps up to 50 Watt. The size of the PSU is 97 x 55 mm only and has a high of ca. 40 mm.

Please refer the attached schematic for more infos about the layout and design of the PSU.

Tip: use Duncanamps' PSU Designer to simulate and calculate power supplies.

Files:

Manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.
