JJ 12AX7 MG / ECC83 MG
JJ 12AX7 MG / ECC83 MG
JJ 12AX7 MG / ECC83 MG

JJ 12AX7 MG / ECC83 MG

Product No.:
jjecc83mg
<font color=green><b>In stock for immediate delivery.</b></font> </br>Delivery time depends on the destination country* In stock for immediate delivery.
Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.014 kg per piece
16,65 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
Description

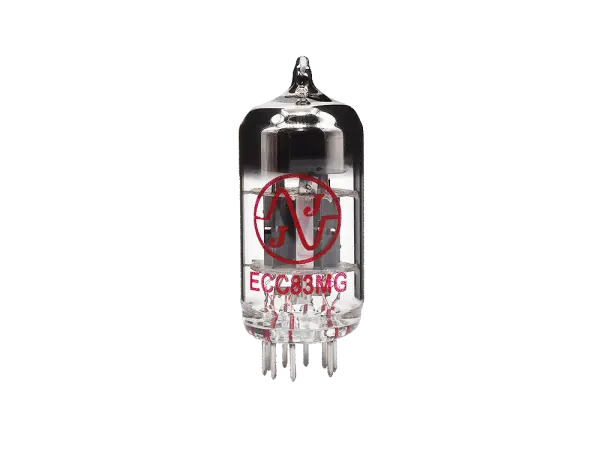

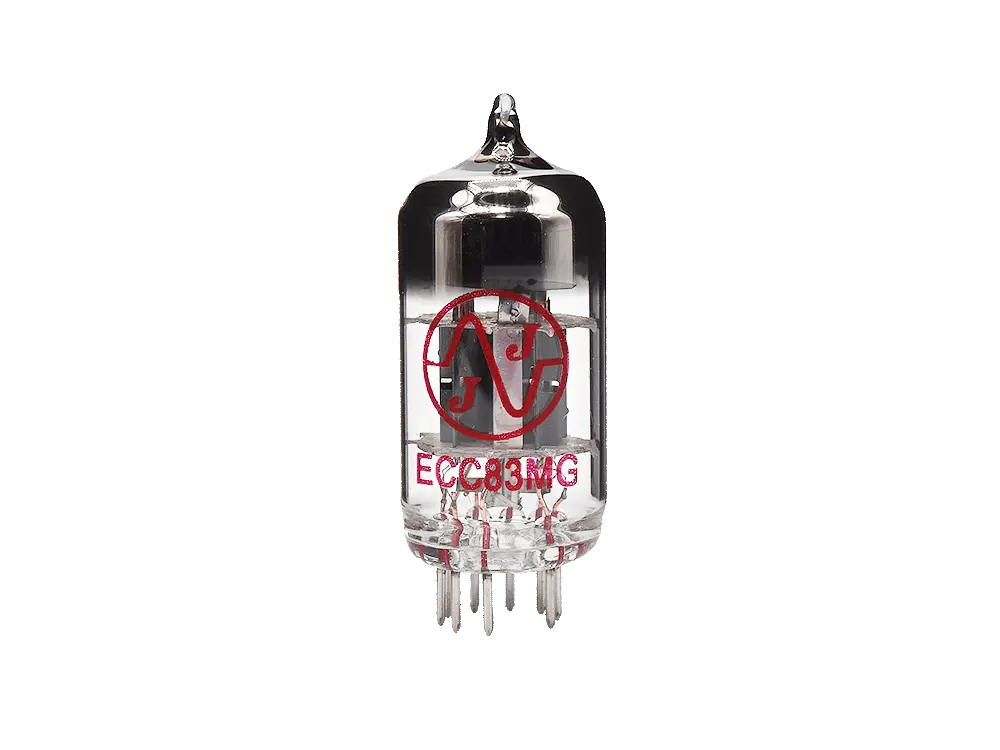

The newest member in the JJ family of ECC83/12AX7 tubes is the JJ ECC83MG. The MG is a 12AX7 with a bit lower amplification than a standard 12AX7. Our measurements show that the difference is small, but the new tube sounds more linear than the standard JJ 12AX7, and in amps produces a milder, gentler sound. The mechanical construction shows that it is not just another minor variation of the normal JJ 12AX7. The new tube has longer plates.
The JJ ECC83MG is interesting for low and medium gain amplifiers, as well as for audio, where a too hot amp needs to be tamed; as well as an alternative to a 12AY7.
