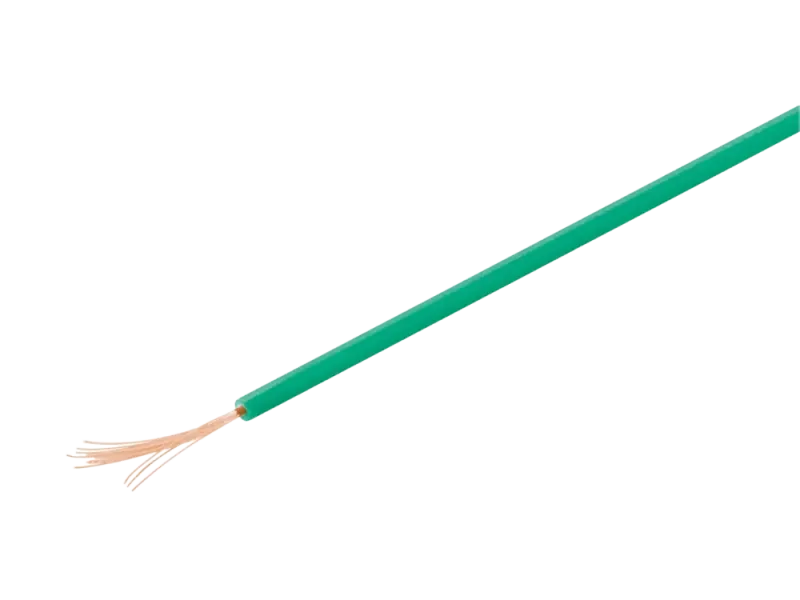

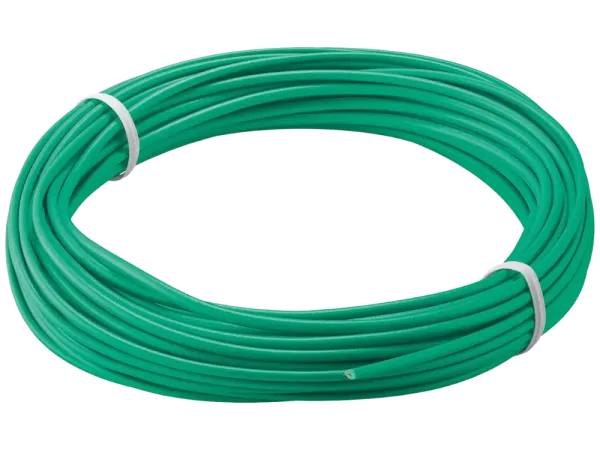

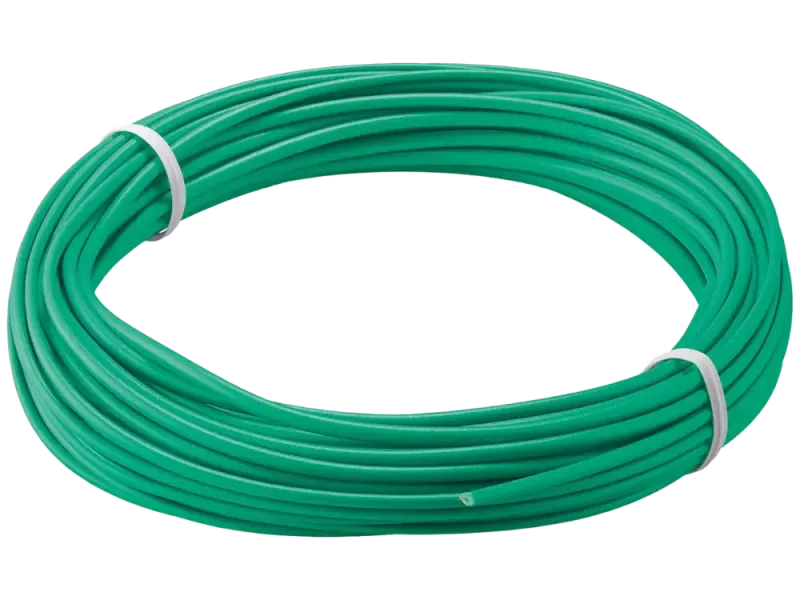

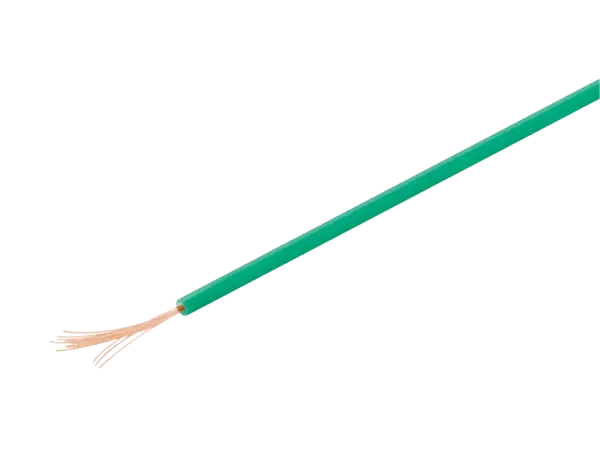

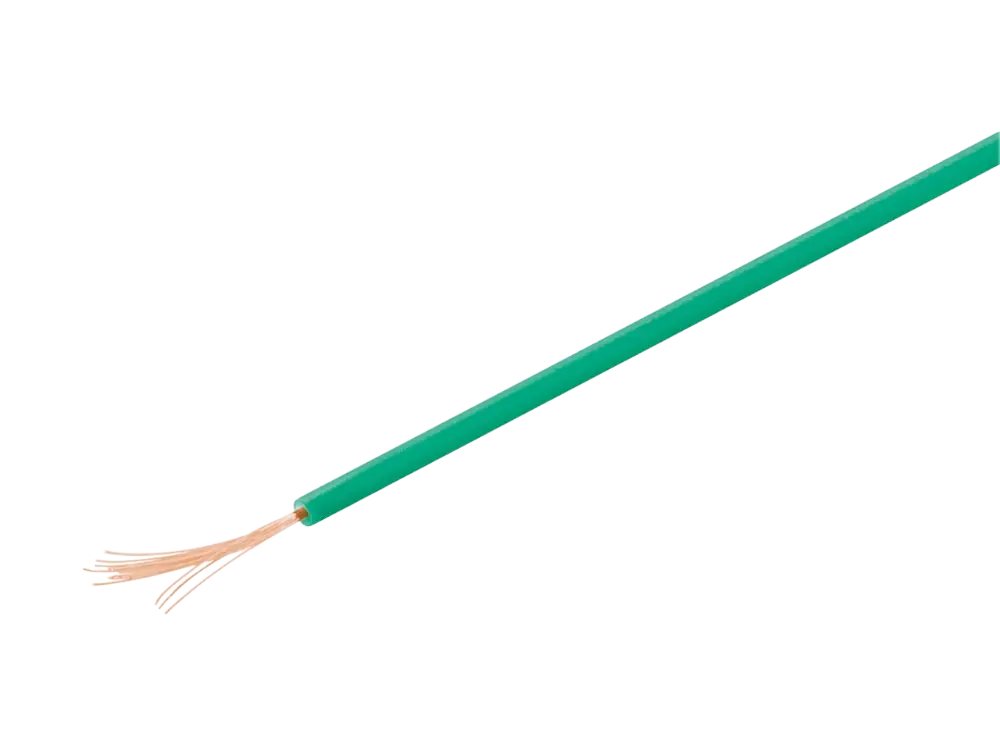

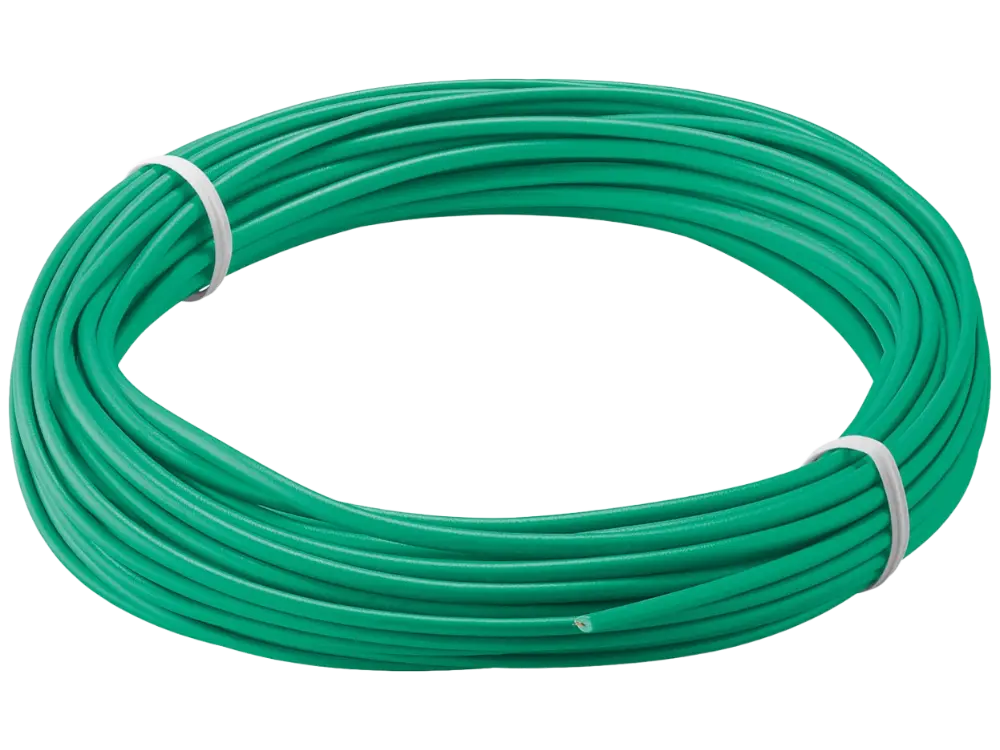

Hookup Wire 0,14 mm², flexible, green, 10 m

• Type: Pointer Knob "Classic Fluted"
• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 33 x 16 mm
• Mounting: Set-Screw

• Type: Panel Mount Potentiometer
• Power Rating: 0,5 W
• Voltage Rating: 750 V DC
• Shaft: 6,10 mm, knurled
• Shaft length: 15 mm
• Drill Ø: 9,4 mm
• Termination: Solder lugs
• Dimension: 24 mm

• 6,3 mm jack
• mono
• Installation diameter: 10 mm

Files:

• Datasheet

Power Jack, Chassis mount

• Schurter 6162.0046
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Ratings UL/CSA: 15 A / 250 VAC; 60 Hz
• Dielectric Strength:
  • > 3 kVAC between L-N
  • > 1.5 kVAC between L/N-PE (1 min/50 Hz)
• Allowable Operation Temp.:-25 °C to 70 °C
• Degree of Protection: from front side IP 20 acc. to IEC 60529
• Protection Class:Suitable for appliances with protection class 1 acc. to IEC 61140
• Material: Housing PA6, black, UL 94V-0

• Material: Phenolic
• Shaft Size: 6  mm
• Size: 15 x 17,5 mm
• Mounting: Push on

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6 mm, Splitt Shaft (knurled)
• Shaft length: 20 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

Copper Stranded Wire Insulated, 10m, Red

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Copper Stranded Wire Insulated, 10m, Black

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Copper Stranded Wire Insulated, 10m, Blue

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel

Copper Stranded Wire Insulated, 10m, white

The Hook up wire wire is a single-core multi-stranded copper cable with a conductor cross section of 0.14 mm² (AWG 26) and an outer diameter of 1.1 mm. The wire is insulated with PVC and is particularly suitable for wiring electrical devices or components. It is characterized by excellent heat and cold resistance and can be easily connected with wire end sleeves, spring or screw terminals.

• Cu switch wire LIYV 0.14 mm², flexible
• Cross-section: 0.14 mm²
• Construction: 18 x 0.1 mm
• Lead-free according to VDE 0812
• Temperature range: –15 / +70 °C
• Rated voltage: 500 V
• Length: 10 m reel
