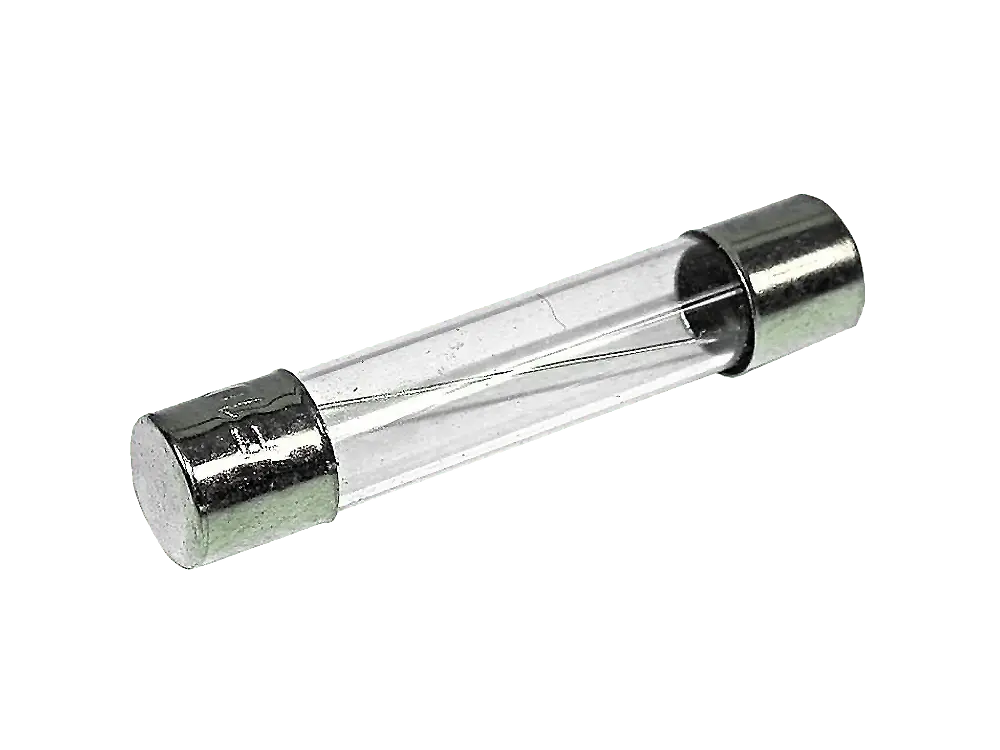

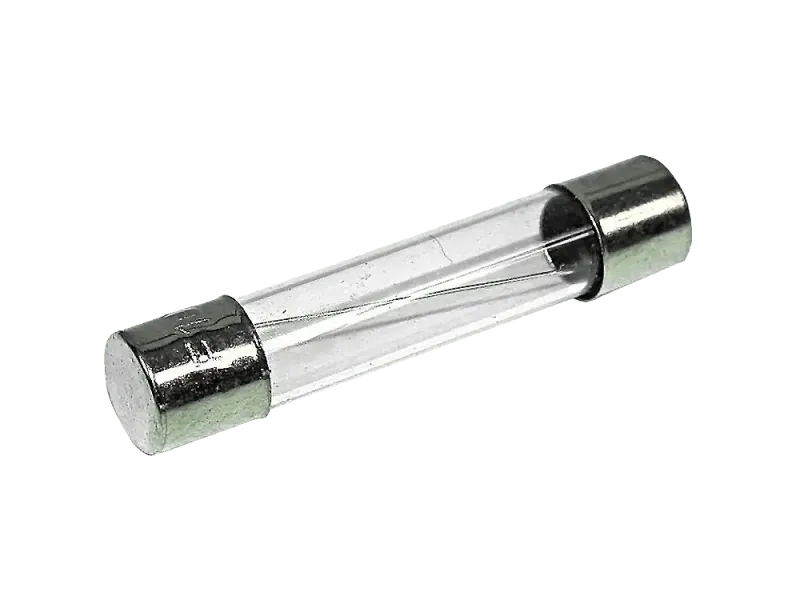

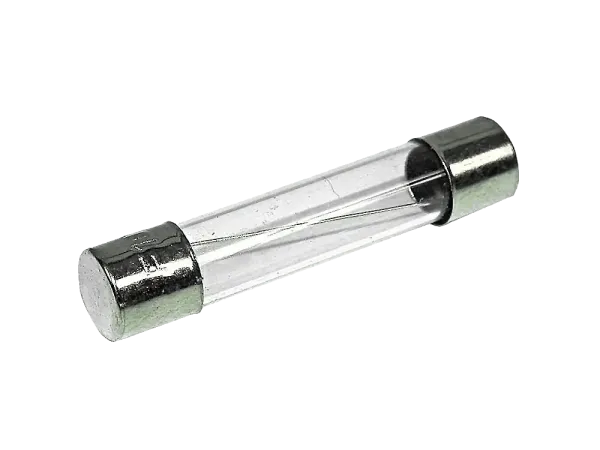

Fuse 0.2 A slow blow, Pack of 10

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Pri: 0-220-230-240 V (schwarz-gelb-lila-rot / black-yellow-purple-red)
• Sec 1: 250 V @ 0,12 A (red / rot)
• Sec 2: 6,3 V @ 3 A (green / grün)
• freie Enden / long leads ca 200 mm
• h= ca.40mm d= ca.80mm
• 50/60 Hz EN 61558

High Power Resistor
Rating: 8.2 Ohms / 5%
Power: 150 Watt / 55 Watt without heat sink
Size: 97 x 47 mm
Aluminium Chassis
Norm: MiL-R-18546 E (RE 70)

Great for attenuators, power soaks and dummy loads
Very low background noise
RoHS Compliant

Kit for TT PSU Mini

The kit includes all components except a powertransformer and a choke for building PSU for tube amps. If you want to use a choke instead of the 5 W resistor than you must order the choke that you need separately.
The PSU can handle max 700 V DC at out B1 and B2, 450 V DC at out B3 and is recommended for tube amps up to 50 Watt. The size of the PSU is 97 x 55 mm only and has a high of ca. 40 mm.

Please refer the attached schematic for more infos about the layout and design of the PSU.

Tip: use Duncanamps' PSU Designer to simulate and calculate power supplies.

Files:

• Document

• Type: Tubular Metalized Polyester Film Capacitors
• Voltage Rating: 630 V
• Tolerance: +/- 10%
• Operating Temperature Range: - 40°C / + 85 °C
• Termination Style: axial
• • Non-inductive
  • Self healing windings.
  • Similar to the Mallorys 150-Series

• Type: HV ceramic disk capacitor
• Epoxy resin molding (insulating and flame retardant)
• Voltage Rating: 2 kV
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: 4,5 mm x 6,5 mm
• Grid: 5

• 12-pole
• separable
• made of flexible insulating material
• natural-colored
• with screw terminals on both sides

ORANGE DROP®, Low Loss

• Type:  Polypropylene Film Capacitors
• Voltage Rating: 600 V
• Tolerance: - 10 % / +10 %
• Operating Temperature Range: - 55°C / + 85 °C
• Termination Style: radial
