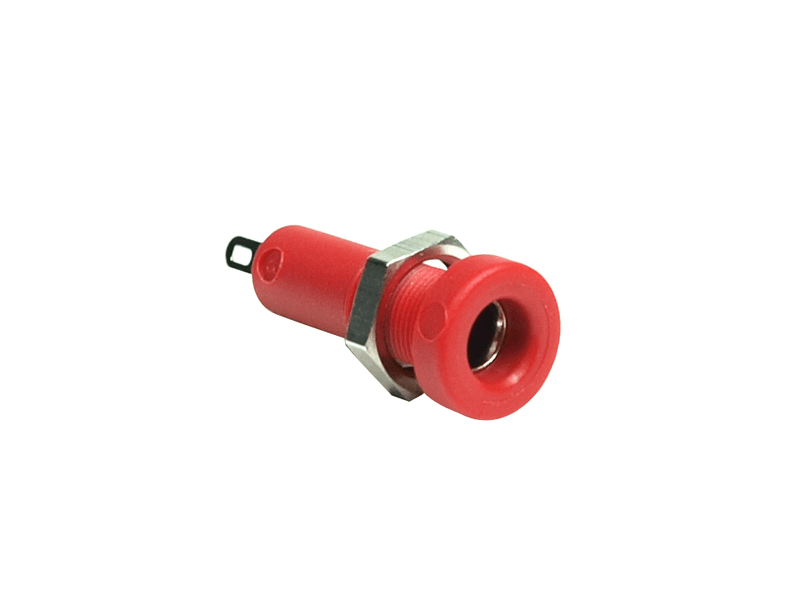

4.0 mm panel jack, red

• Connection Type: solder connection
• Wire Diameter: up to 2,5 mm2
• Plug Diameter: 4 mm
• Contact materal: nickel-plated brass
• Rated voltage: 60 VDC
• Rated current: max. 30 A
• Contact resistance: 3.0 mOhm

Relays, type Finder Dual-In-Line-Relais 2,0 A
for low breaking capacity

• Compact dimensions: 20.3 x 10.1 x 11.4 mm, grid according to wiring diagram
• Function: 2 x changeover contacts
• Constant/inrush current: 3.0 A/2.0 A
• Rated/switching voltage: 125 VAC/250 VAC
• Breaking capacity AC 1/AC 15 (230 V): 125 VA/25 VA
• Switching current DC 1:    2.0 A/30 V, 0.3 A/110 V
• Minimum switching load: 10 mW (0.1 V/1.0 mA)
• Contact material: AgNi+Au (5.0 µm)
• Useful mechanical life DC: 10 x 10 exp6 switching cycles
• Electrical life AC 1: 100 x 10 exp3 switching cycles
• Insulation coordination EN 61810-5: 1.2 kV/2
• Electric strength coil/contact (1.2/50 µs): 1.5 kV
• Response/release time: 6.0 ms/2.0 ms
• Ambient temperature: –40 to +85 °C
• Relay protection class: RT III
• Certifications: CSA, UL, GOST

• Datasheet

• Type: Noval Socket Belton VT9-ST-C
• Version: Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
•   EZ81, EL844 etc.

• 2 - Layer
• 1,5 mm, black
• Size: 21 x 35 mm
• For the use with Finder Relais type 30.22.9xx  (or relais with similar pin layout).

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 19 x 14,5 mm
• Mounting: Hexagon Set Screw

• Type: Alpha Rotary Switch
• Version: 2 pole / 6 positions, non-Shorting
• Shaft lenght: 19 mm
• Rating: 0.3 A / 125 V/AC
• Contact resistance: max. 50 mΩ
• Insulation resistance: min. 100 mΩ / 500 V/DC
• Termination Style: solder lugs
• Shaft: 6,3 mm
• Drill Ø: 8,9 mm

• Type: Alpha Rotary Switch
• Version: 4 pole / 3 positions, non-Shorting
• Shaft lenght: 19 mm
• Rating: 0.3 A / 125 V/AC
• Contact resistance: max. 50 mΩ
• Insulation resistance: min. 100 mΩ / 500 V/DC
• Termination Style: solder lugs
• Shaft: 6,3 mm, D-Shaft
• Drill Ø: 8,9 mm

• Type: Toggle Switch
• Version: 4PDT, ON-OFF-ON
• Assembly Ø: 5,8 mm
• Rating: 5 A / 250VAC, 2 A / 125VAC
• Termination Style: solder-lugs

• Type: Toggle Switch
• Version: SPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life: 10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 7985
• Price: pack with 50 pcs.

Power Jack, Chassis mount

• different manufacturer
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Norm IEC320 / C14
• Betriebsspannung: 10 A / 250 VAC; 50 Hz
• Material: Housing PA6, black, UL 94V-0

• Type: Countersunk Head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 965
• ISO: 7046
• Price: per pcs.

Cabinet corner leather black, Set of 4
100 % real letaher, vegetable tanned
Caution: natural product ! The texture and thickness may vary.

Hint: put the corners into water for a few minuties before mounting. This makes them soft and elastic and than they will fit better.
The corners on the chassis should be well rounded too in order to achieve best results.
