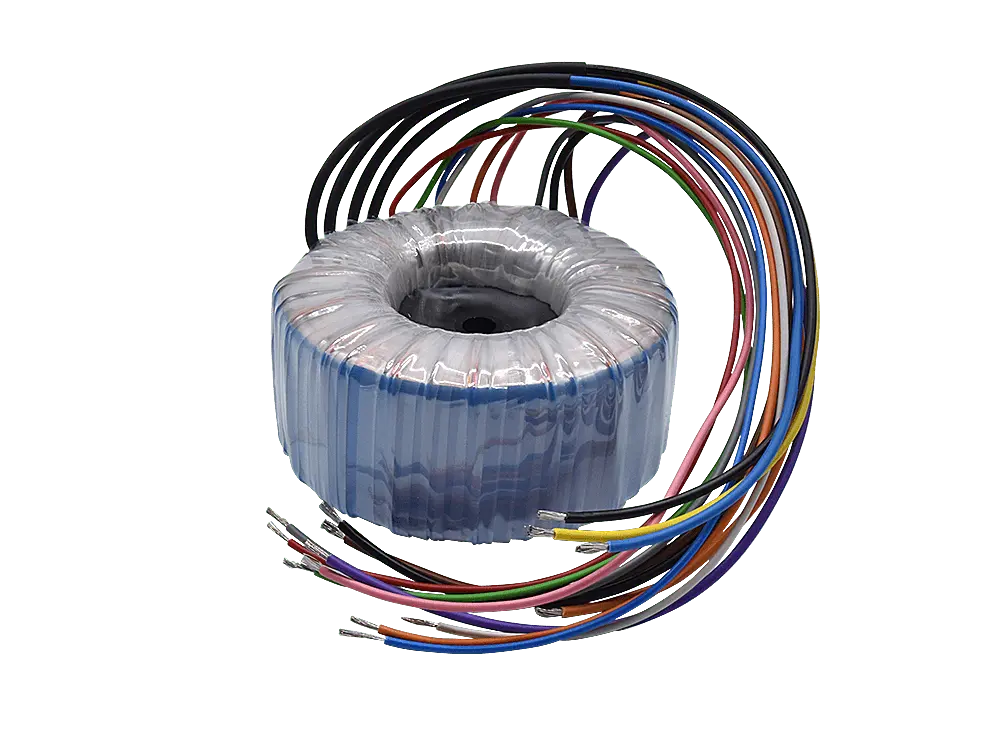

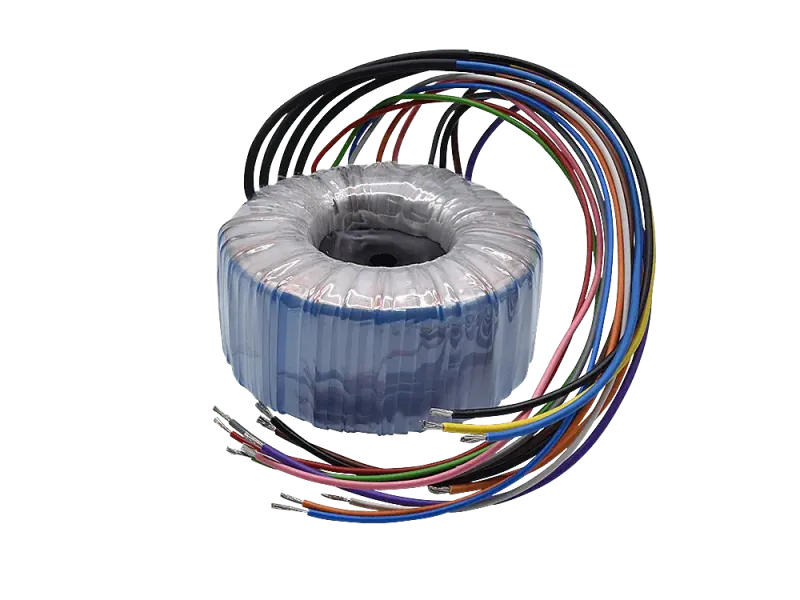

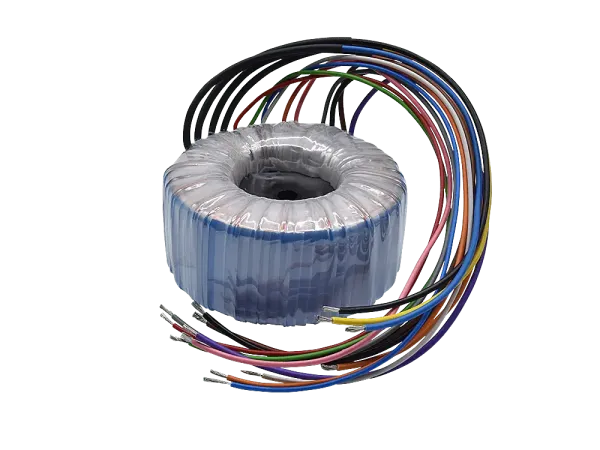

Toroidal 106VA Power / Marshall-18Watt-Style

Screw set for Torodial-Transformers

1 x Screw M5*60 mm
1 x Screw Lock Nut M5
2 x Washer M5

suitable for this TT Transformers:

tt-t106
tt-t107
tt-t185
tt-t244

• Pri: 120, 230V, 240V @ 50Hz
• (Pri: 0-120V | 0-110-120 V)
• Sec1: 345-0-345V @ 200 mA
• Sec2: 6,3 VCT @ 6A
• Sec3: 5V @ 3A
• Made in Europe.
• Marshall JTM45 Style
• Universal Primärwicklung

• Datasheet

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 6,5 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

• MPW axial leaded metallized polypropylene film capacitors
• Self Healing
• Low ESR
• Tolerance: +10% @ 1 kHz, 25°C
• Peak, AC voltage (50/60 Hz): 630VDC / 250 VAC
• Size: Ø 8,5 x 14,5 mm
• Dielectric: Polypropylene
• Coating: Flame Retardant Polyester tape wrap (UL510) with epoxy end fill (UL94V0)

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Type: Multisection Capacitor
• Capacitance: 32 + 32 µF
• Voltage Rating: 500 V
• Tolerance: - 10% / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 35 mm x 50 mm
• Termination Style: radial, solder lugs

• High Power Resistor
• 5W 5% High Ohm Cement Power Resistors
• Size: 22 x 10 x 9 mm
• RoHS Compliant

• High Power Resistor
• 5W 5% High Ohm Cement Power Resistors
• Size: 22 x 10 x 9 mm
• RoHS Compliant

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Type: Electrolytic capacitor
• Capacitance: 100 µF
• Voltage Rating: 63 V
• Tolerance: - 10 % / +30 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 8 mm x 19 mm
• Termination Style: axial

Images are for reference only. See Product Specifications

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

• Insulation: Silicon
• Operation Voltage: 500 V
• Test Voltage: 2000 V
• Operating temperatures:    –50 bis +180 °C
• Packing:: 5 m
• Cross-Section: 0,5 mm²
• Outer Diameter: 2,1 mm
• Stranded wire structure: 16 x 0,20 mm, tinned copper

TT-Chassis Aluminium - Typ 008 Standard, Dumble-Size (V2020

• Size: 490 x 200 x 65 mm (Dumble size)
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• reinforced Corners
• With two cut-outs for power jacks
• Made in Germany

Files:

• Datasheet V2020
• Datasheet V2017 (old)
