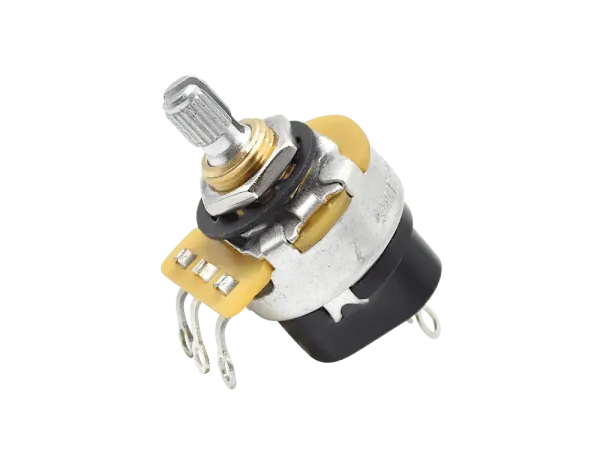

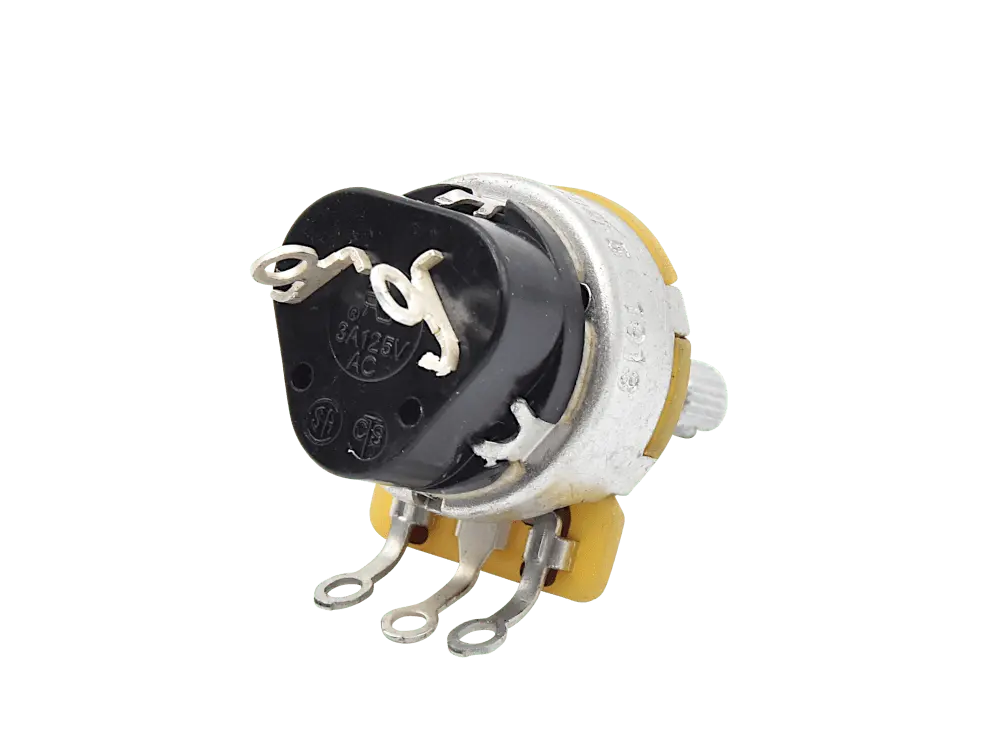

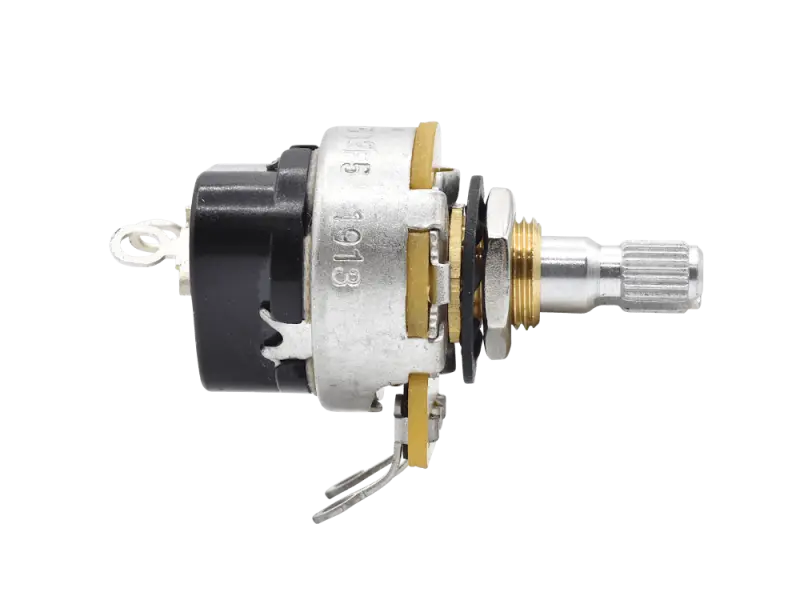

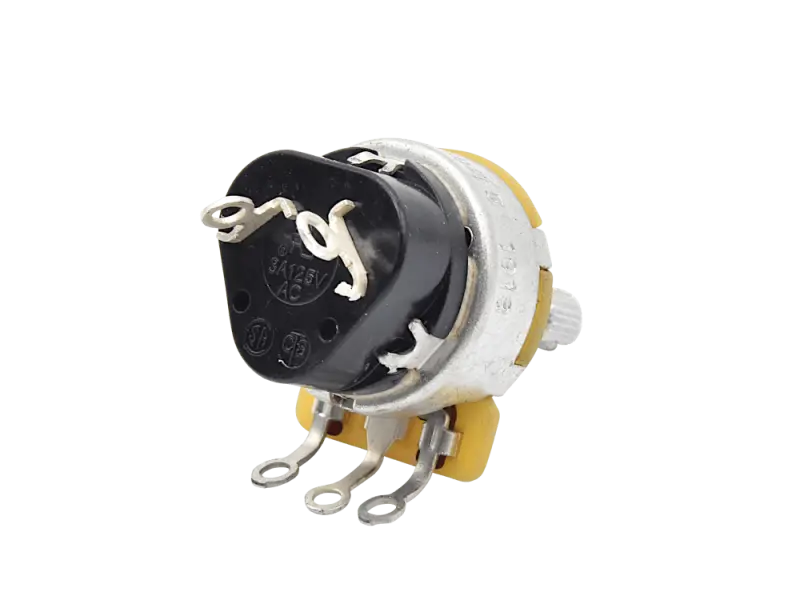

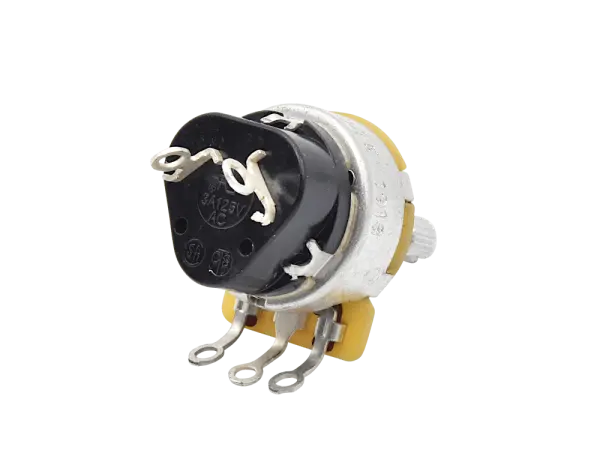

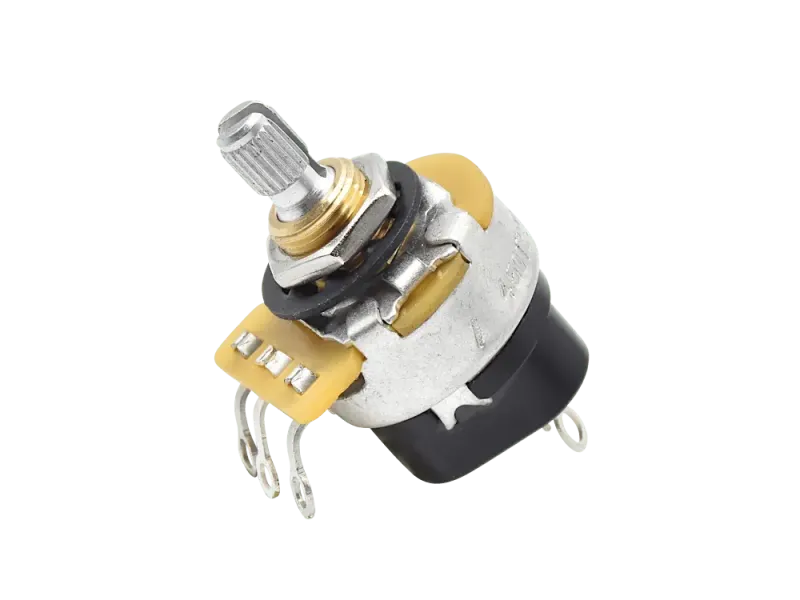

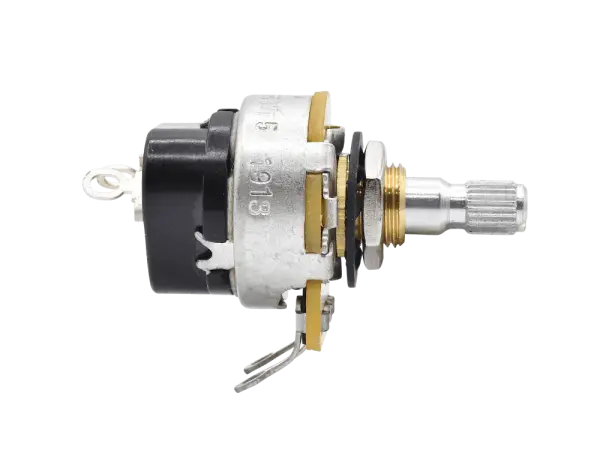

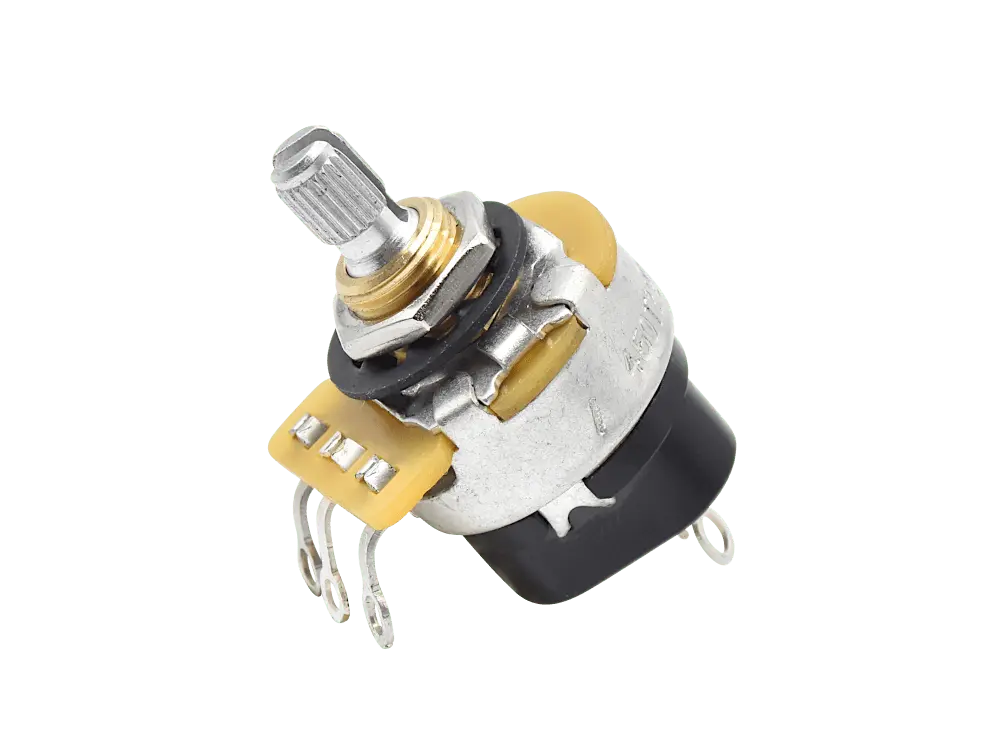

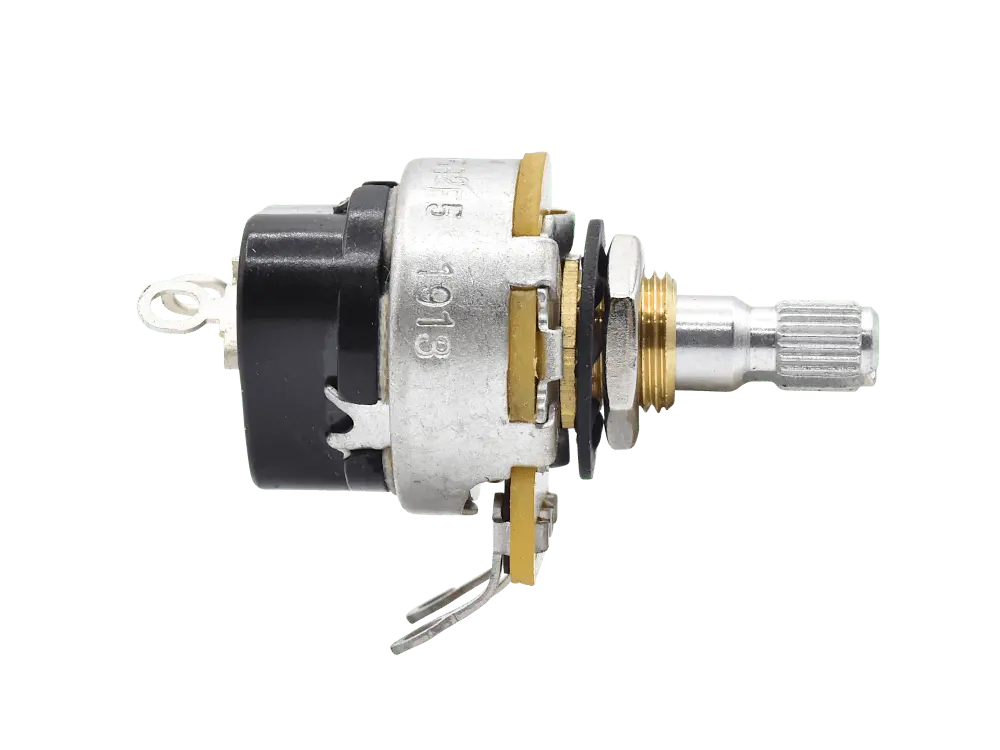

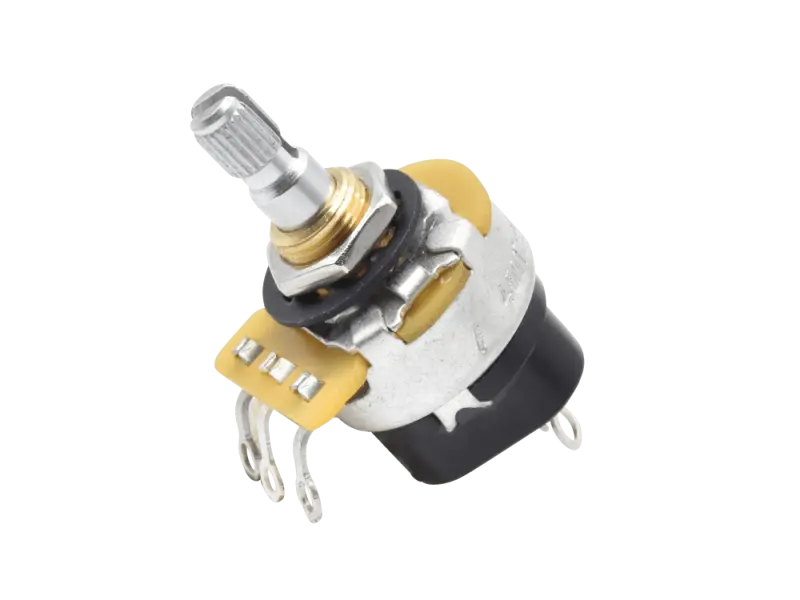

CTS Potentiometer 1 MOhm log / Audio Push-Pull - short shaft

• Standard Recovery Rectifier
• Voltage max: 1000V
• Current Rating: 1A
• Forward Current: 1A
• Forward Current Avg Rectified, IF(AV): 1A
• Forward Surge Current Max, Ifsm: 1A
• Forward Voltage: 1 V
• Forward Voltage Max, VF:1.3V
• Pack of 10 pcs

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 100 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial

Length ca. 15 cm

• Fender Style Powertransformer for (Vibrosonic Reverb 100) (Baseman 100) (Quad Reverb 100) (Showman AA768, AB763, AC568, Blackface, Dual AB763, AC568, Reverb 100 , Reverb AA270, AA769, Silverface) (Super Six Reverb 100) (Twin Reverb 100, AA270, AA769, AB763, AC568, Blackface, Silverface)
• Fender Item Number: 125P34A & 022756
• Pri: 240V 50 Hz
• Sec.1: 640 VCT @ 518mA
• Sec.2: C/W 60 V TAP
• Sec.3: 6.5 VCT @ 5.5 A

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

• Rated Voltage: 250 VAC
• Contact caps: nickel-plated brass
• Size: Ø 6,3 mm x 32 mm
