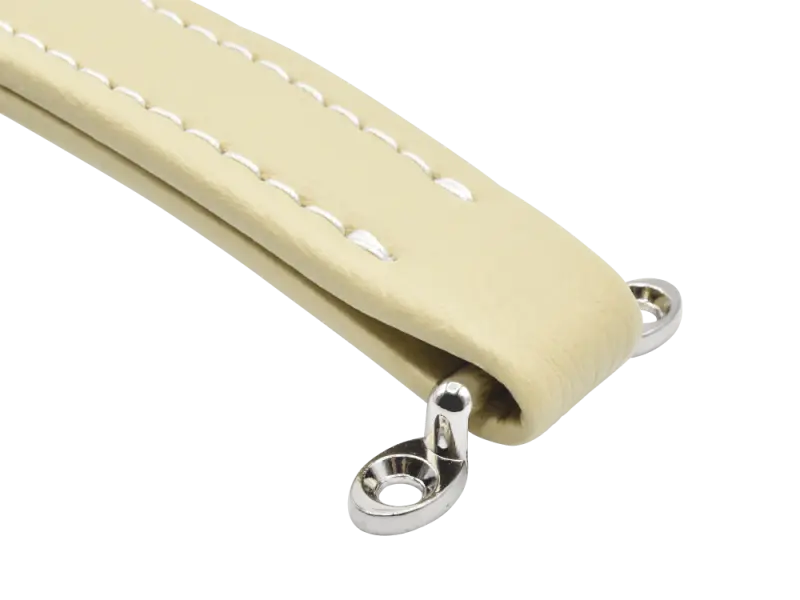

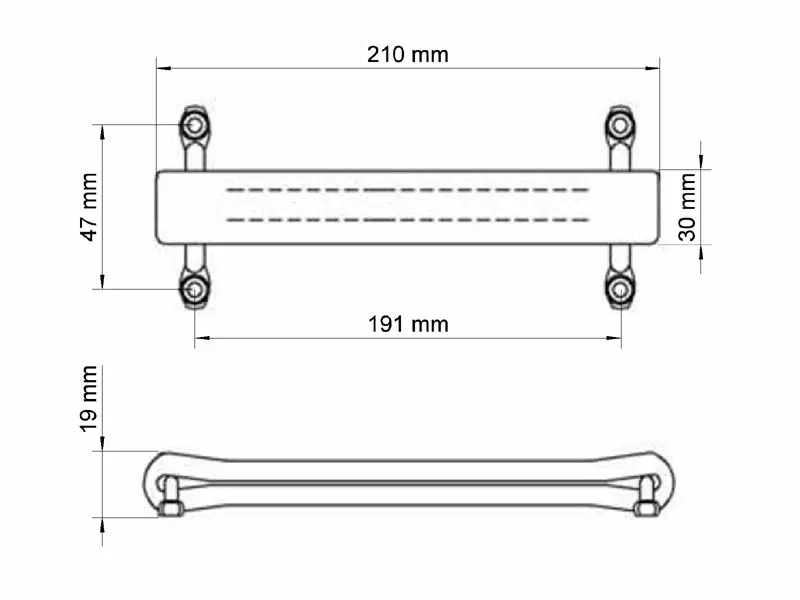

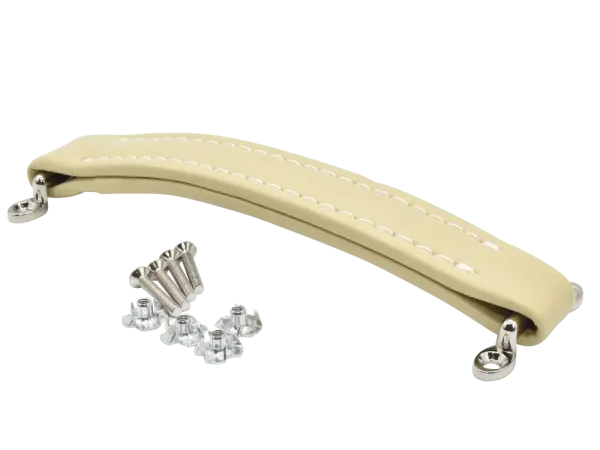

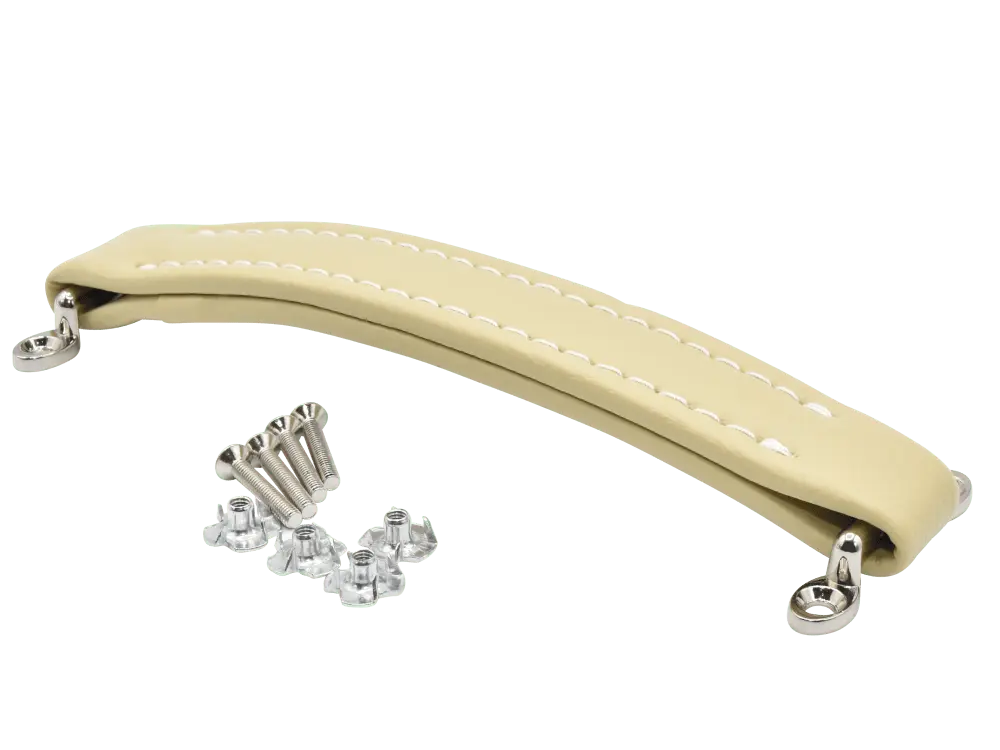

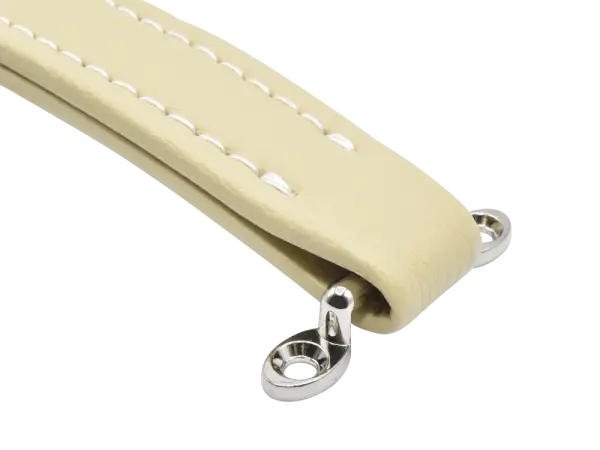

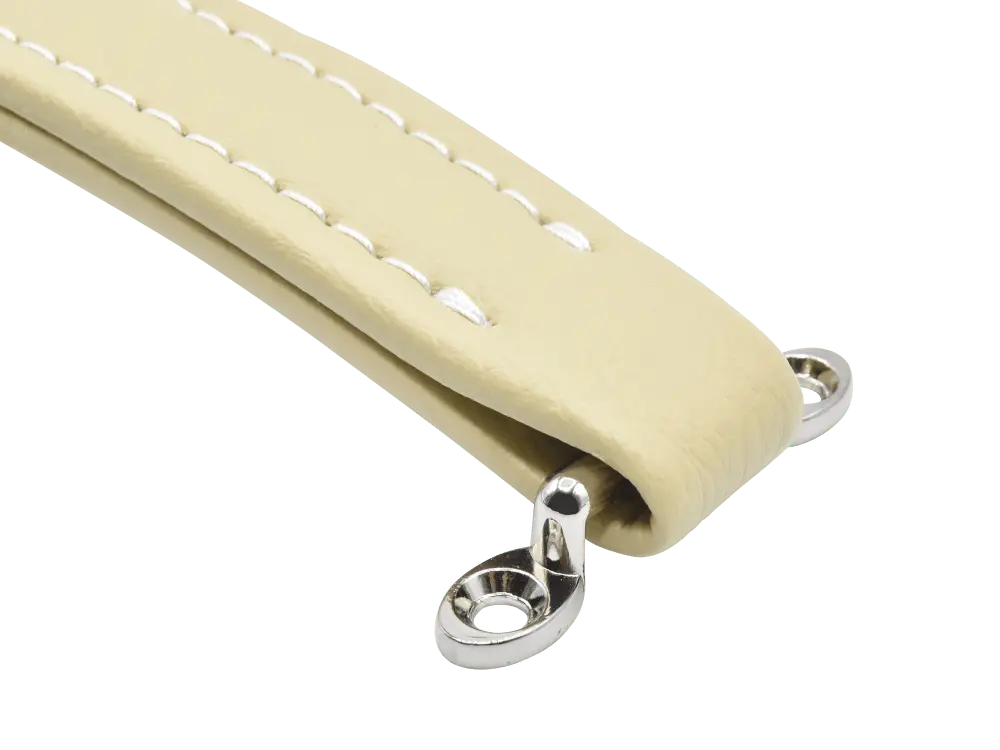

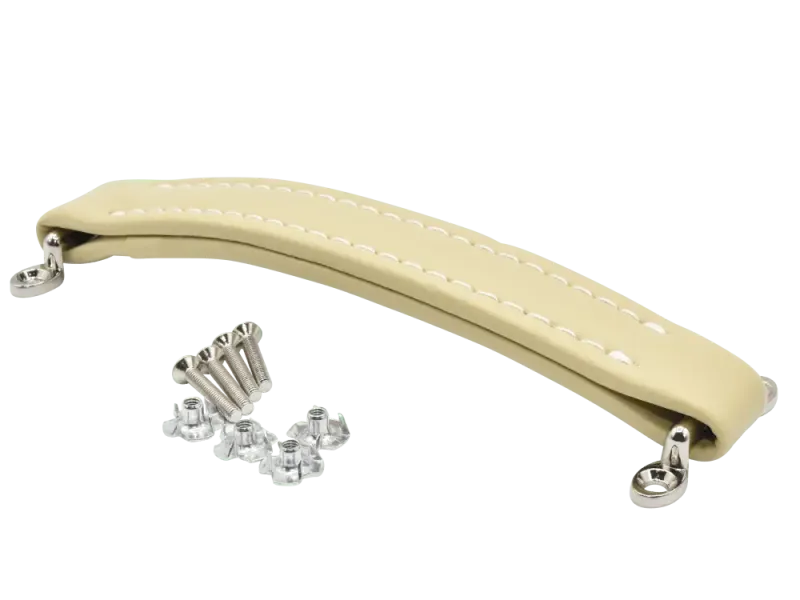

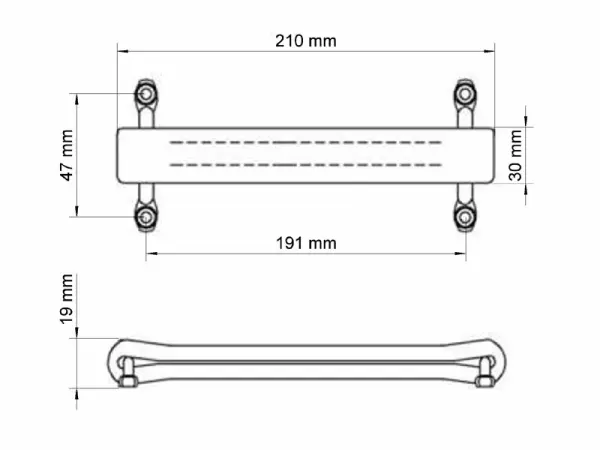

Case Handle imitation leather, creame

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: 3/8-32 (9,45 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6 mm, Splitt Shaft (knurled)
• Shaft length: 20 mm
• Drill Ø: M7 (6,8 mm)
• Termination: PCB
• Dimension: 16 mm

• Springs: 2
• Delay Type: long
• Size: long
• Replacement: Fender, Marshall, Ampeg "F"
• corresponds to Fender part number 006-4063-049

• Power Rating: 0,3 W
• Tolerance: 20%
• Shaft: 6,3 mm, solid metal
• Shaft length: 6 mm
• Drill Ø: 9,5 mm
• Termination: Solder lugs
• Dimension: 24 mm

• RCA Phono socket gold plated with Teflon insulation
• 1 x black
• 1 x red

Files:

• Datasheet

waterbased Tolex-Glue, 500 ml

How To use ?
The glue must be applied onto the wood and the Tolex.
After a dyring time of ca. 30 min the Tolex can be put onto the wood.

And how much glue do you need ?
The can of 500 ml is enough for ca. 2.3 m². This is enough for a TTC212REX and there is still about 100 ml glue left.

Attention
For a better adhesive power it is recommended to put a second layer of glue onto the tolex after the drying time.

Files:

• Safety Datasheet

Cliff 1220 stereo jack

• Jack socket, stereo
• switched
• for chassis mounting, 6 solder terminals
• for 6.3 mm jack plug, stereo

• Datasheet

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.
