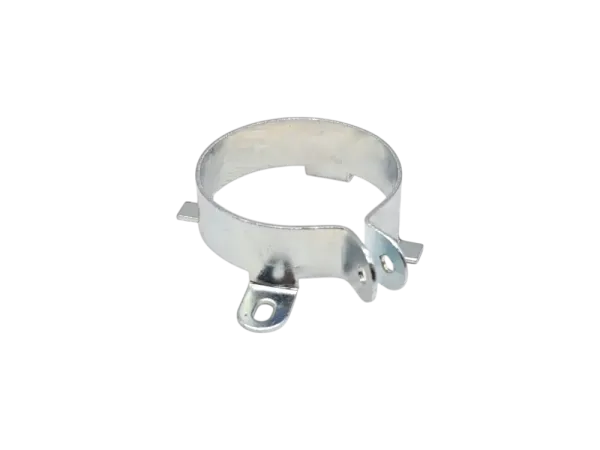

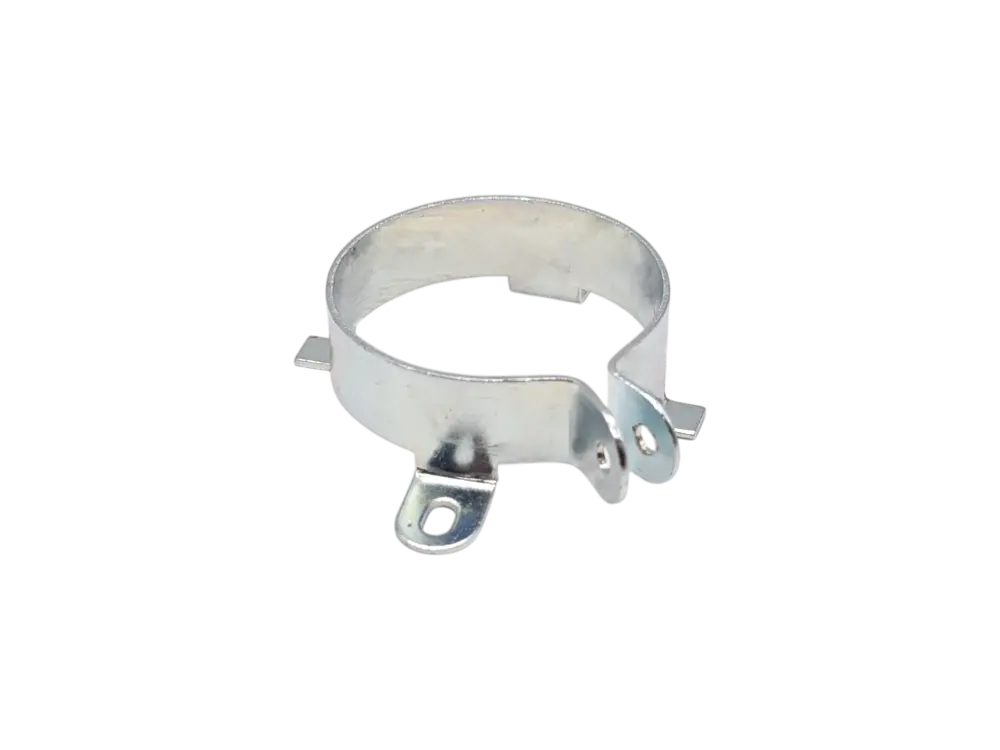

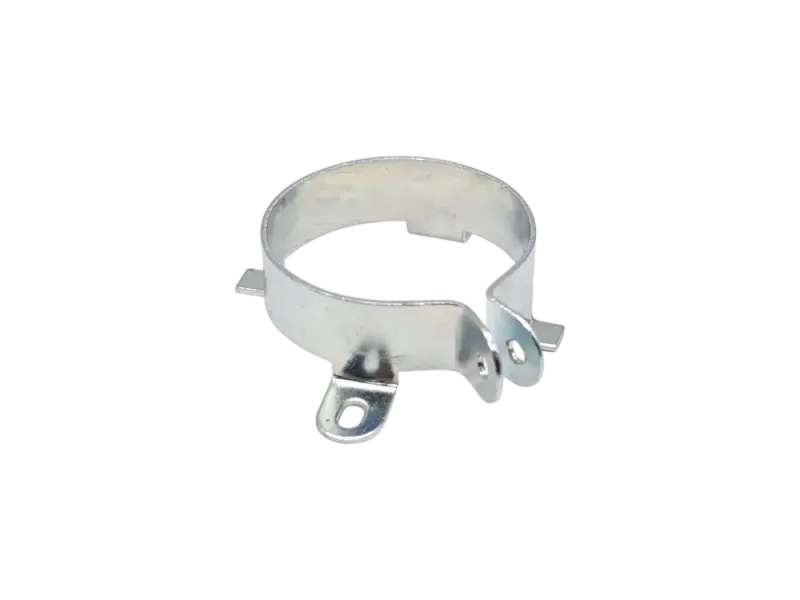

Capacitor Clamp 30 mm

Noval Socket - Pack of 5

• Ceramic
• Chassis mount with shield
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7 etc.

Audio transformer 10:1 for microphone signals

• Unshielded version with print connections
• Wideband version
• Change from unbalanced to balanced and vice versa
• Galvanic isolation to avoid/eliminate hum loops
• Max. input voltage: 5V (1% THD/40Hz)

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Technical Facts Transformers

• Frequency range: 15-30,000Hz
• Inputs: 47kOhm, unbal.
• Outputs: 600 Ohm, bal.
• Transmission ratio: 10:1
• Admiss. ambient temp.: 0-40 °C
• Dimensions: 25x24x21mm
• Weight: 28g
• Inputs: -
• Outputs: -

• Length: 240 mm
• Width: 55 mm
• Solder Lugs: 2 x 30
• Distance between Solder Lugs: 8,3 mm
• Laminated Paper

Audio transformer 1:1/2:1 for line signals

• Unshielded version with print connections
• Wideband version
• Change from unbalanced to balanced and vice versa
• Galvanic isolation to avoid/eliminate hum loops
• Various level adjustment possibilities when windings are arranged accordingly

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.

Technical Facts Transformers

• Frequency range: 15-30,000Hz
• Transformation ratio: 1:1/2:1
• Input impedance: 600 Ohm
• Output impedance: 600 Ohm / 300 Ohm
• Optimum source imped.: 50-600 Ohm
• Optimum load imped.: 5k Ohm
• Max. input voltage (1% THD/40Hz): 5V
• Dimensions: 25x19x19.5mm
• Weight: 28g

• Studio grade frequency response: 20 Hz. - 20 Khz. (+/- 1 db, ref. @ 1 Khz.) minimum (see individual PDF data sheets below).
• Designed for maximum bandwidth, lowest distortion at +10 dbm power level or less (see individual PDF data sheets below).
• Excellent shielding - Mu metal case.
• Insulated leads 5" (127mm) long minimum .
• Case diameter of 1.25" (31.8mm) and height of 1" (25.4mm).
• Adjustable height case bracket - mounting hole centers are 1.875" (47.6mm).
• Net weight 3 oz.

• Typical Applications: Crystal/Ceramic MIC. to Base
• Nominal Impedance Primary: 100 kΩ
• Nominal Impedance Secondary: 1500 Ω
• Overall Turns Ratio (Pri. to Sec.): 8:1

Files:

• Datasheet
