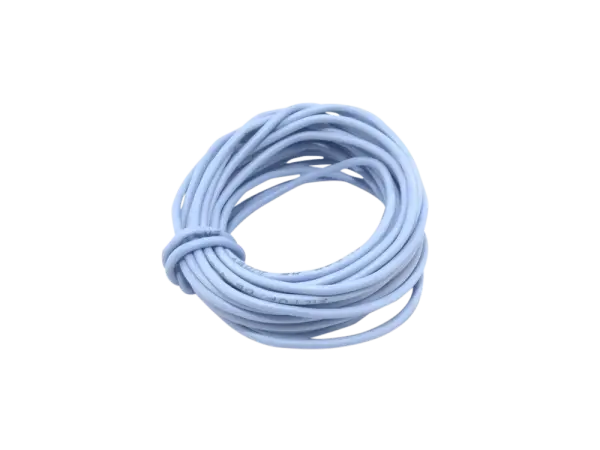

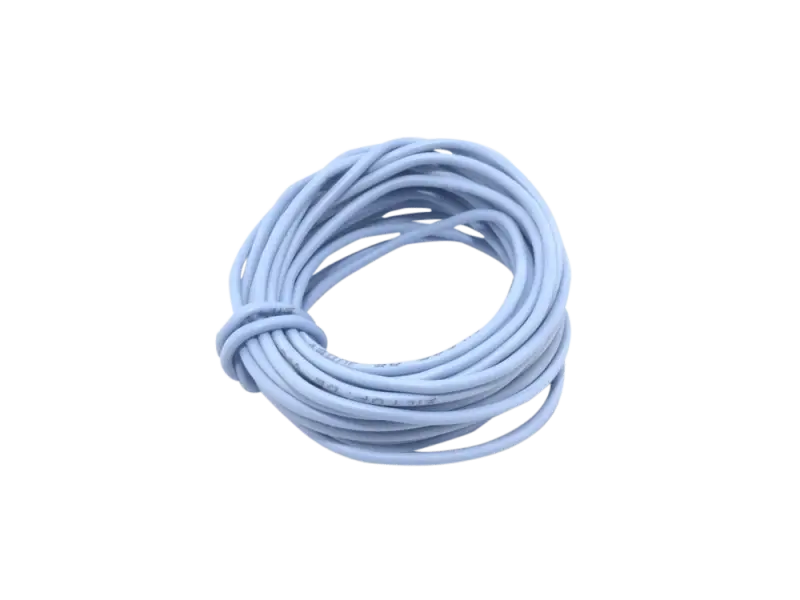

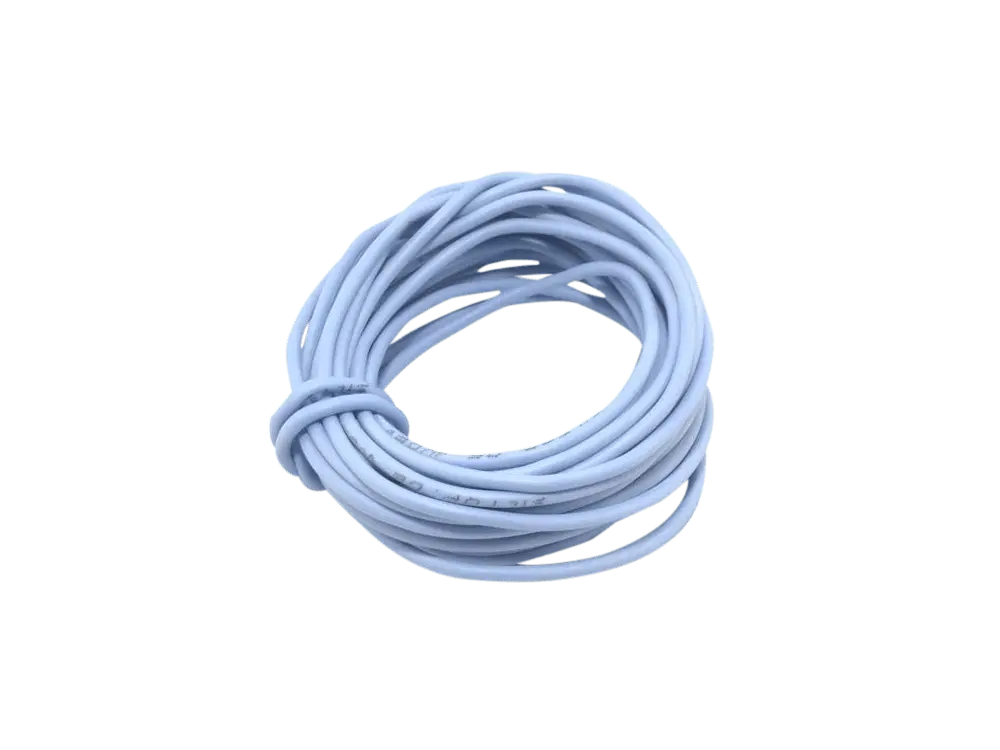

Wire Silicon 0,5 mm² - blue

Product No.:: sil05-b
: In stock for immediate delivery.
Delivery time depends on the destination country*
Stock:: piece
RoHs:: conform
Weight:: 0.05 kg per piece

2,90 €
0,58 € per m

incl. VAT excl. Shipping costs

piece:

Bookmark

Ask Question

Description

Wire Silicon, SiAF

Insulation: Silicon
Operation Voltage: 500 V
Test Voltage: 2000 V
Operating temperatures: –50 bis +180 °C
Packing:: 5 m
Cross-Section: 0,5 mm²
Outer Diameter: 2,1 mm
Stranded wire structure: 16 x 0,20 mm, tinned copper

Manufacturer

Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de

Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no review yet. Be the first who rate this product.
