Tube-Town EZ-Board Twin Relais PCB

Mobile Preview: Tube-Town EZ-Board Twin Relais PCB

Description

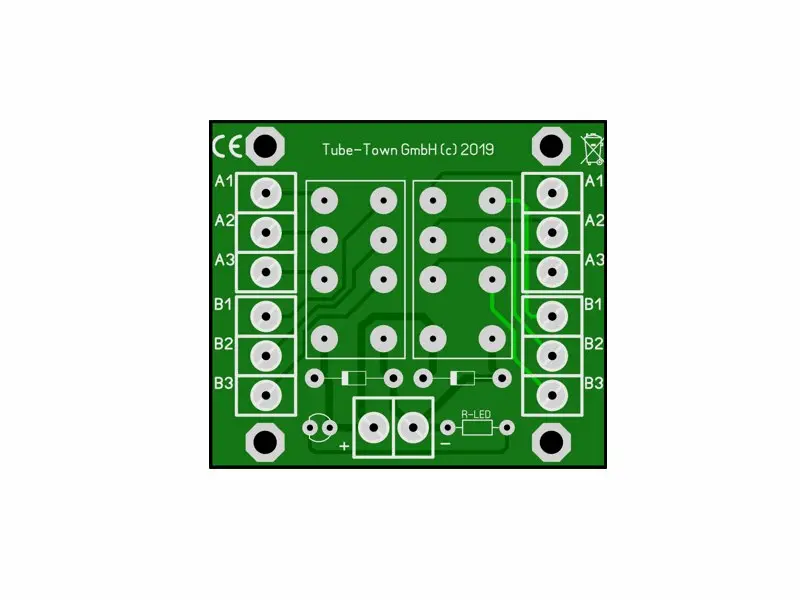

Tube-Town EZ-Board Twin Relais PCB for channel switching etc.
Size: 50 x 44,5 mm
Material: 1,6 mm FR4
Solder mask: schwarz

For the use with Finder Relais type 30.22.9xx (or relais with similar pin layout).
