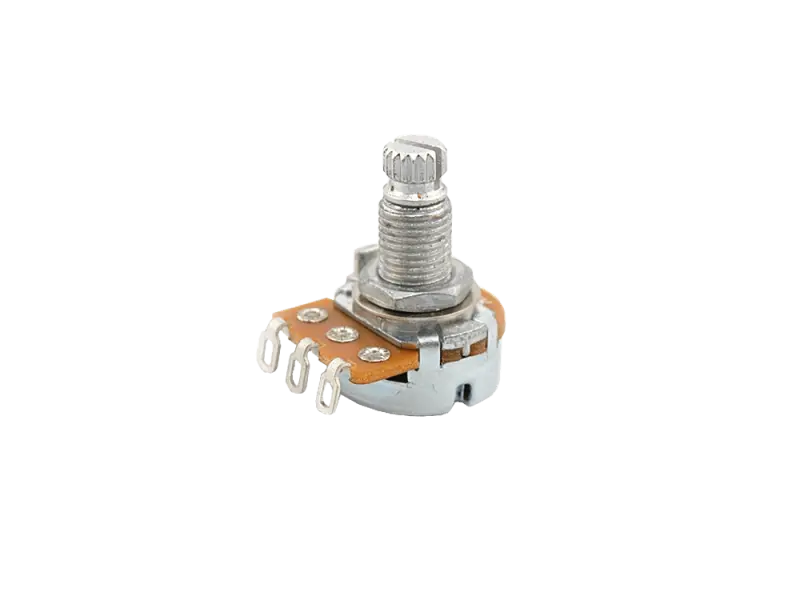

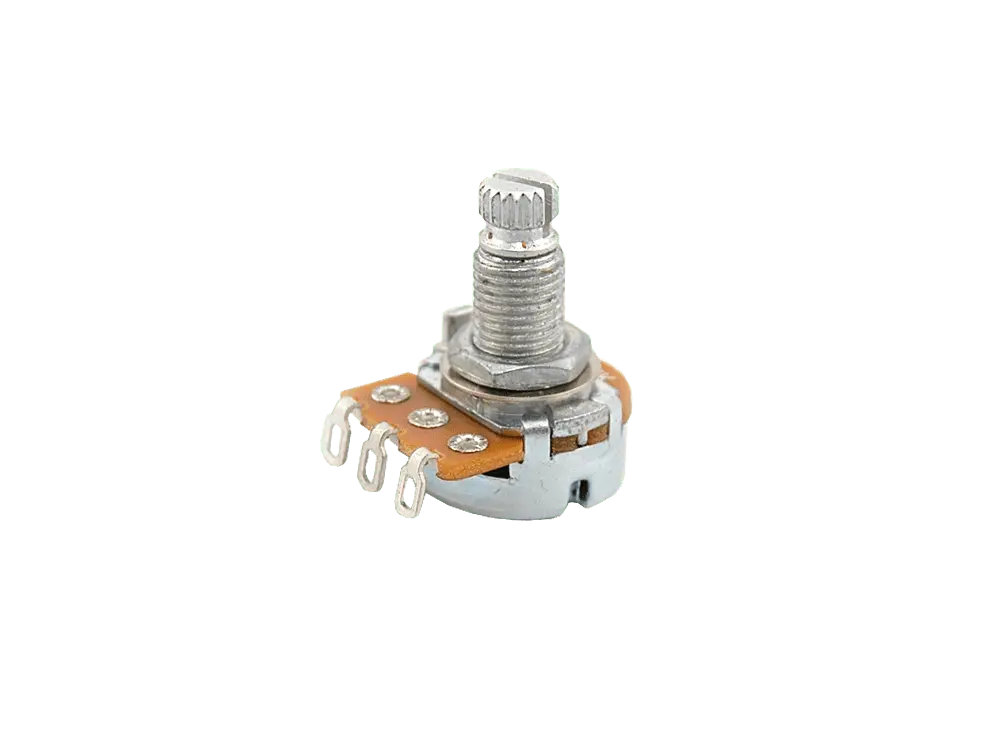

TT Potentiometer 16 mm 10k log

Product No.:
tpo16-10k-log
In stock. Delivery time depends on the destination country* In stock. Delivery time depends on the destination country*
RoHs:
conform
Weight:
0.01 kg per piece
0,75 €

incl. VAT excl. Shipping costs

Bookmark
Ask Question
EU legal guarantee notice
Description
TT Potentiometer Made by Alpha

Electrical Characteristics
  • Total Resistance Tolerance: +/- 20%
  • Rated Power
    • B/Lin Taper: 0,125 W
    • A/Log Taper: 0,1 W
  • Max. Operating Voltage
    • B/Lin Taper: 150 V AC
    • A/Log Taper: 150V AC
  • Noise: 47 mV max.
  • Insulation Resistance: 500 V DC 1000MOhm
  • Withstand Voltage: 1 minute 500 V AC
  • Rotational Life: 15000 Cycles

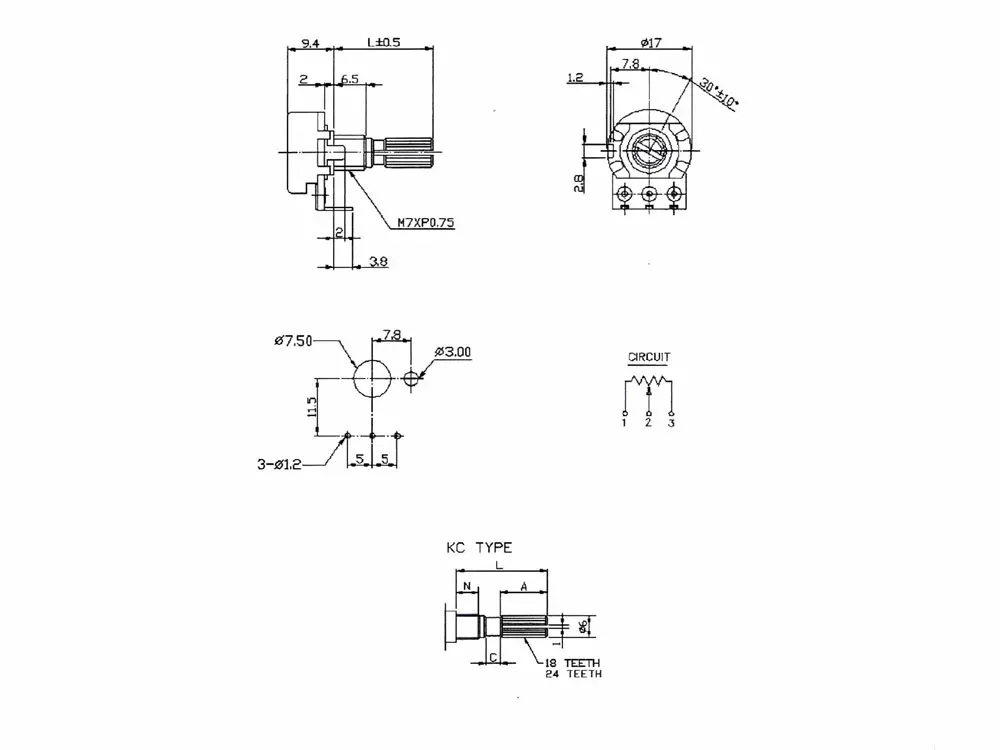

Mechanical Characteristics
  • Shaft Diameter 6 mm
  • Shaft Type: Split Shaft
  • Shaft Length: ca. 9 mm
  • Bushing Length: 6,5 mm
  • Body Diameter: 16 mm
  • Connectors: Solder Lugs
  • Total Rotational Angle: 300° +/- 5°
  • Rotational Torque: 30~200gf.cm
  • Solder Heat Resistance: 300°C, 3 S
Material
  • Shaft: Cast Iron (Aluminium Zinc)
  • Bushing Material: Cast Iron
Manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
