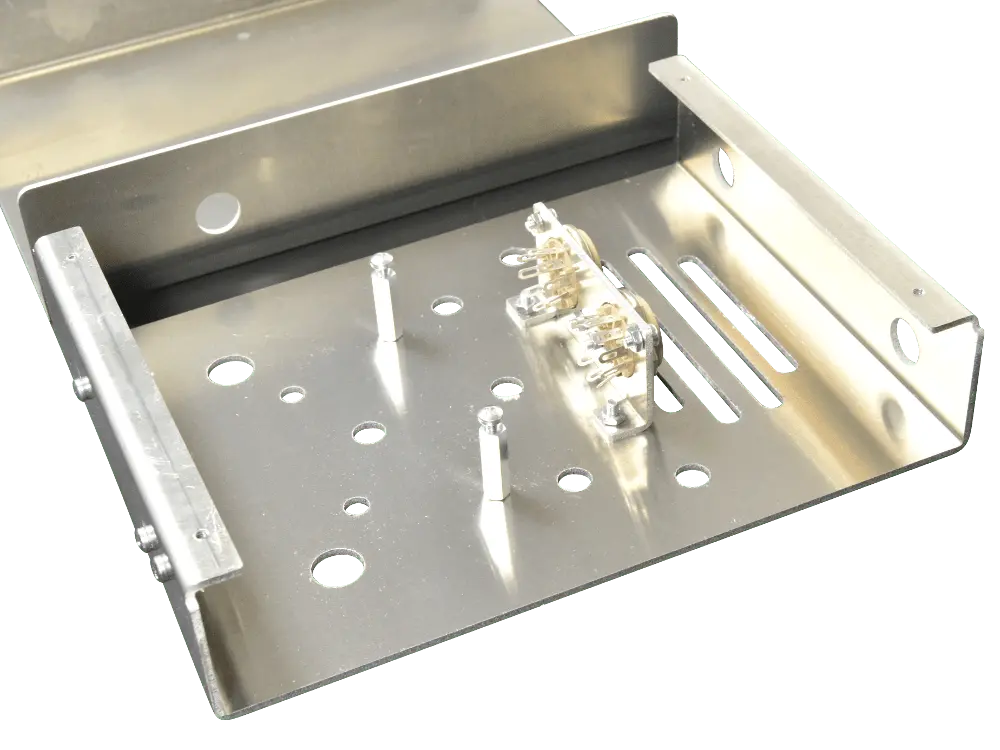

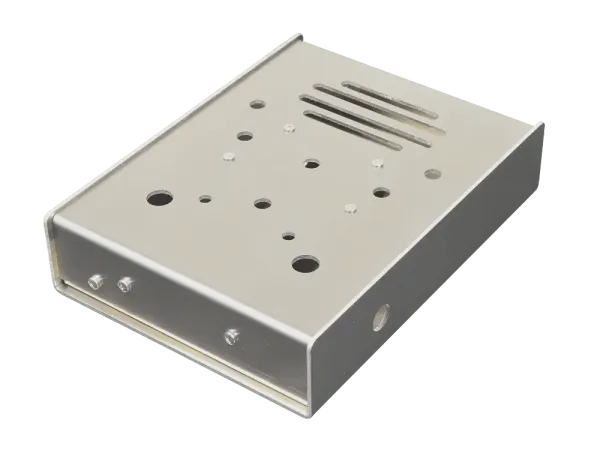

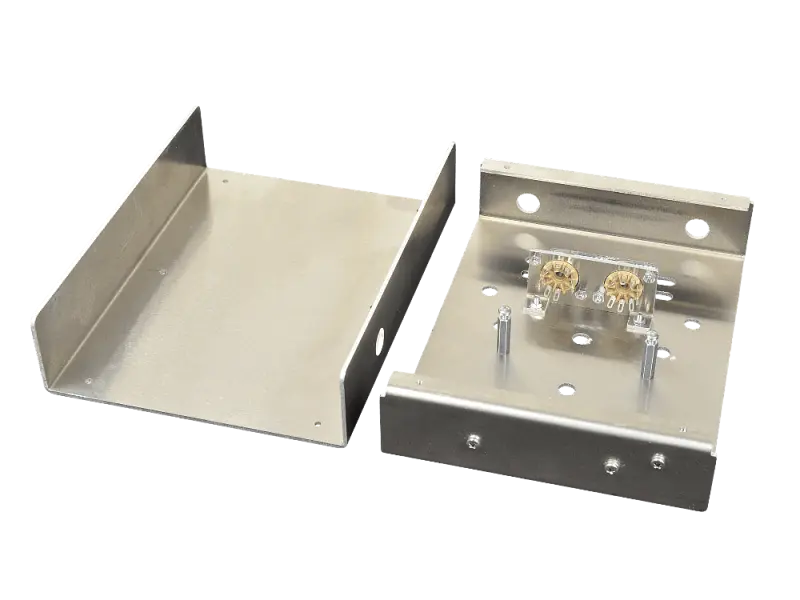

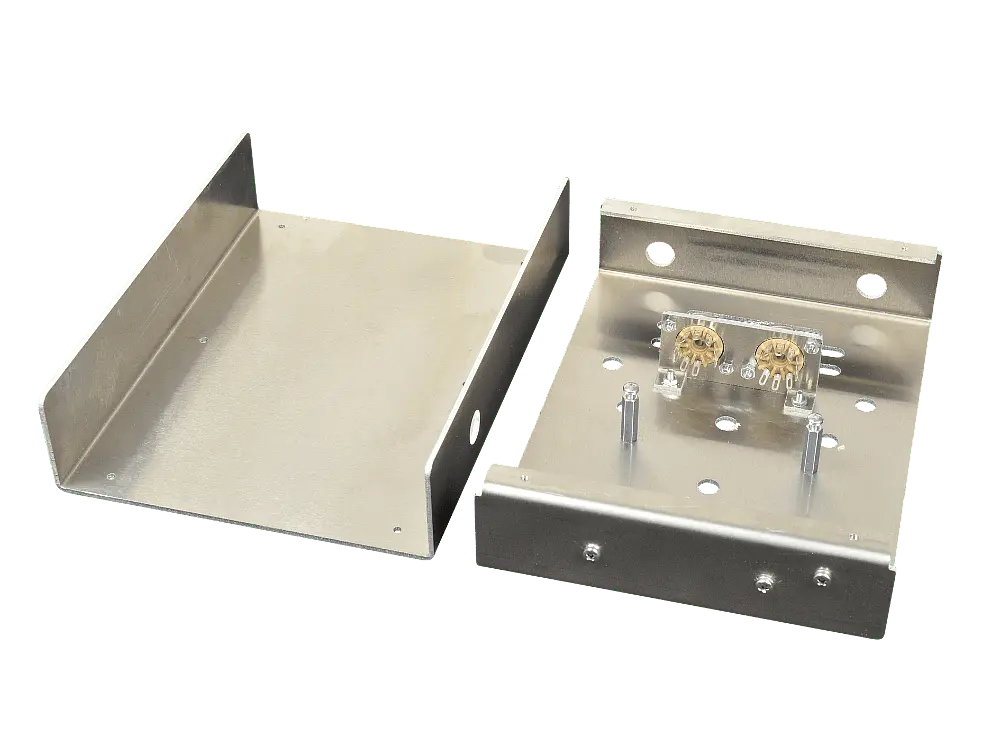

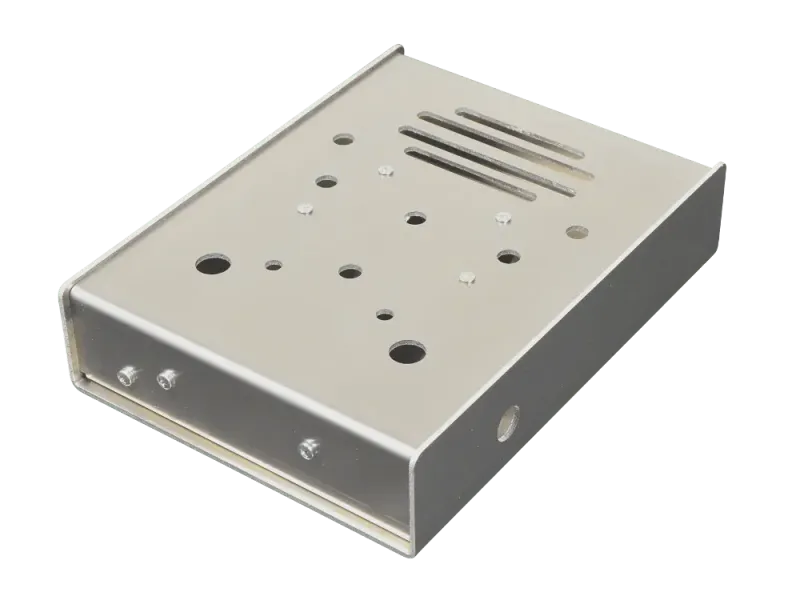

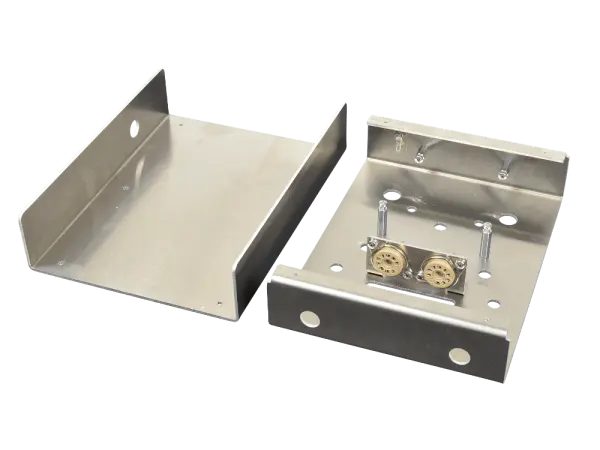

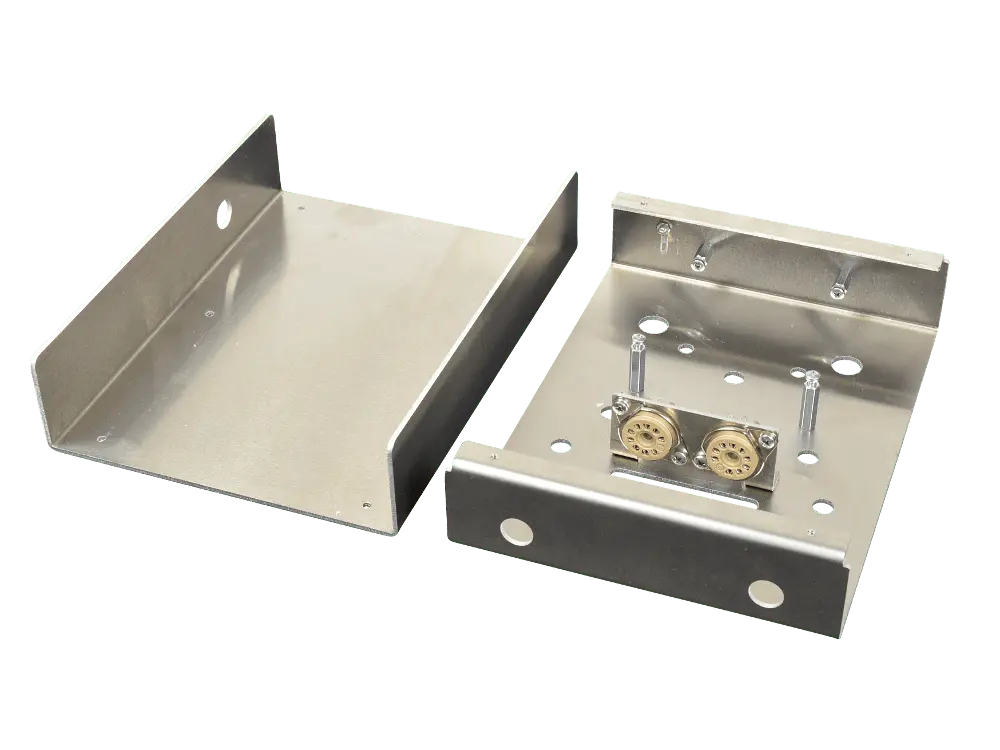

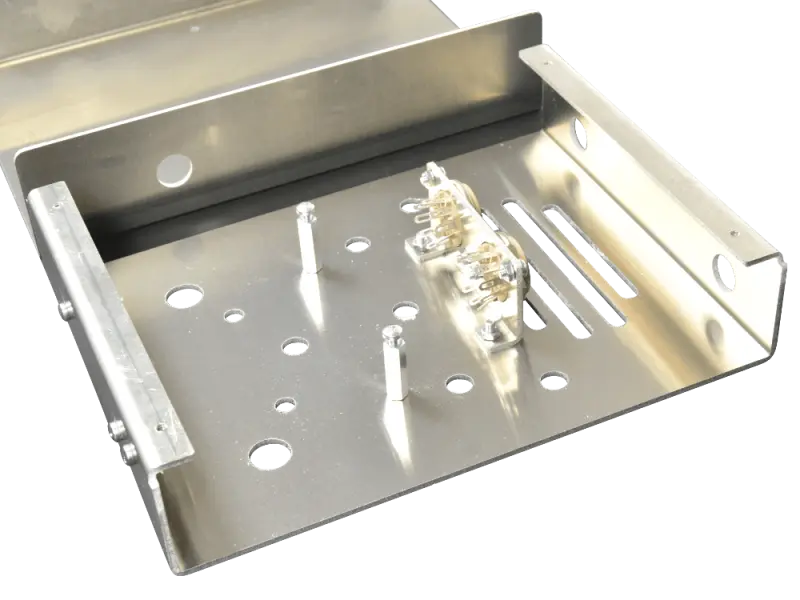

TT-Chassis 038 - LoV

Faceplate for Vanilla Overdrive 60

• Farbe: #D01 schwarz / weiß
• Material: 0.8 mm Transply

The same PCB that is included in the SugarBox60 kit as a basis for your own projects.

• Size: 133,35 x 30,5 mm
• Material: FR4 1,6 mm
• Solder stop: blue
• Print: white

Basic Kit Vanilla Overdrive 60 - Successor of the Vanilla Overdrive MKIII.
Please see the ->project page for more details about the Vanilla Overdrive 60.

This kit includes all parts needed to build the Vanilla Overdrive incl. resistors, capacitors, tubes, wires, switch, pcb etc.The VPump60 is also part of the kit.

NOT INCLUDED:

• external wall wart
• chassis (incl. sockets)
• faceplate
• knobs

Please see the "recommended products" list.
This kit also does NOT include technical support or assistance or remote debugging!

Basic Kit Pepper Shredder 60
Please see the ->project page for more details about this project.

This kit includes all parts needed to build the Pepper Shredder 60 incl. resistors, capacitors, tubes, wires, switch, pcb etc.

NOT INCLUDED:

• external wall wart
• chassis (incl. sockets)
• faceplate
• knobs

Please see the "recommended products" list.
This kit also does NOT include technical support or assistance or remote debugging!


Kit SugarBox 60 - a tube preamp for bass-guitar.

This kit includes all parts needed to build the Vanilla Overdrive incl. resistors, capacitors, tubes, wires, switch, pcb etc.

NOT INCLUDED:

• external wall wart
• chassis (incl. sockets)
• faceplate
• knobs

Please see the "recommended products" list.
This kit also does NOT include technical support or assistance or remote debugging!
Please see the ->project page for more details about the SugarBox 60.

• Angle of radiation: 40 °
• Current: 2 mA
• Luminous intensity: 0.002 cd
• Wavelength: 568 nm
• Size: 3 mm
• Color: green

Color: #C01 balck / white
Material: 0.8 mm Transply

Kit SugarBox 60 - a tube preamp for bass-guitar.

This kit includes all parts needed to build the Vanilla Overdrive incl. resistors, capacitors, tubes, wires, switch, pcb etc.

NOT INCLUDED:

• external wall wart
• chassis (incl. sockets)
• faceplate
• knobs

Please see the "recommended products" list.
This kit also does NOT include technical support or assistance or remote debugging!
Please see the ->project page for more details about the SugarBox 60.

Warm and balanced overall sound, paired with high resolution and brilliance, which is why the TT12AT7 achieves the best results in both instrumental and audio/high-end amplifiers.

Features:

• Warm and balanced sound
• Excellent sound resolution and brilliance
• Ideal for instrumental and audio/high-end amplifiers

Hint;
Often, 12AU7 and 12AT7 types are used instead of 12AX7 tubes in order to either reduce the overall power of the amplifier or just take back the overdrive of the preamp. Especially the 12AU7 brings a very large tonal difference compared to a 12AX7, which is usually much greater than when switching from a 12AX7 to 5751 or 12AT7.

When using a 12AU7 in a driver stage that is normally designed for 12AX7, the overall power of the power amp is usually reduced. How big this difference is depends on the amplifier or circuit. For example, a Marshall with a 12AX7 in the phase inverter stage set to volume 5 will then reach the same volume with a 12AU7 set to volume 6 (perceived volume, not measured).

Electrical Characteristics

• Heater Voltage (Uf): 6.3V or 12.6V
• Heater Current (If): 300mA at 6.3V, 150mA at 12.6V
• Anode Voltage (Ua): Maximum 300V
• Grid Voltage (Ug1): -2V (typical)
• Anode Current (Ia): 10mA (typical)
• Anode Power Dissipation: Maximum 2.5W per triode
• Anode Resistance (ra): 11kΩ
• Amplification Factor (μ): 60
• Transconductance (S): 5.5mA/V
• Input Capacitance (Cin): 1.6pF
• Output Capacitance (Cout): 1.6pF

Mechanical Characteristics

• Socket: B9A (Noval)
• Number of Pins: 9

Pin Configuration

• 1 Anode (Triode 1)
• 2 Grid (Triode 1)
• 3 Cathode (Triode 1)
• 4 Heater (f)
• 5 Heater (f)
• 6 Anode (Triode 2)
• 7 Grid (Triode 2)
• 8 Cathode (Triode 2)
• 9 Center Heater (f)

Application Notes

• Heater Operation: The tube can be operated with either 6.3V or 12.6V, depending on the circuit design.
• Grid Resistors: It is recommended to use grid resistors of at least 1MΩ to ensure stable operation.
• Coupling Capacitors: Capacitors with low capacitance (typically 0.1µF) are recommended to minimize high frequency disturbances.
