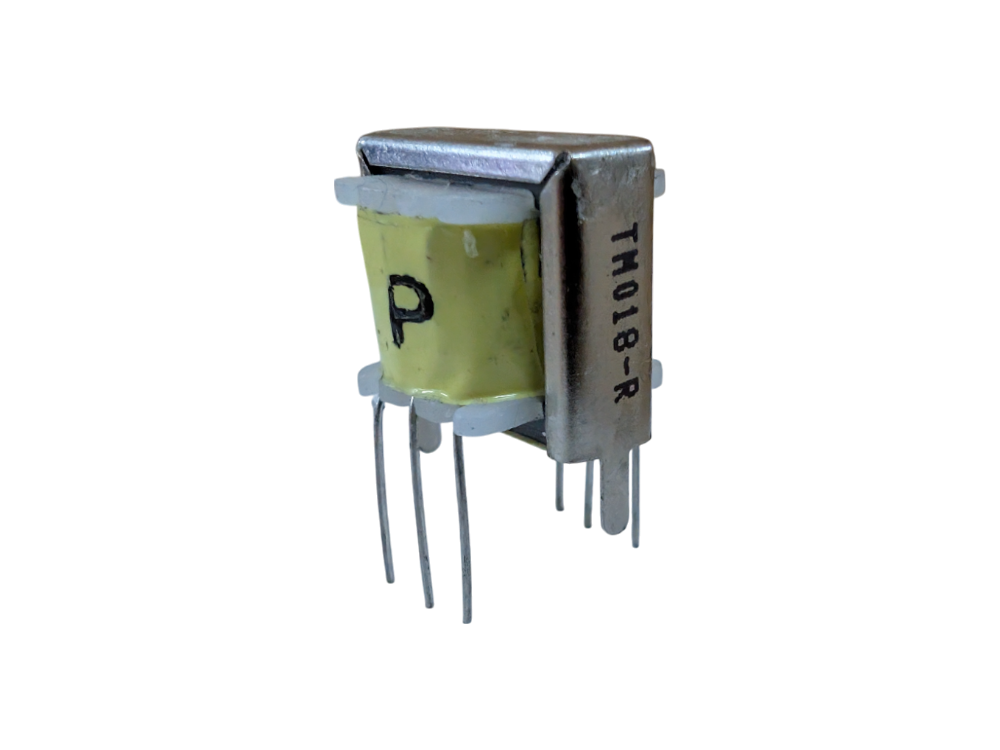

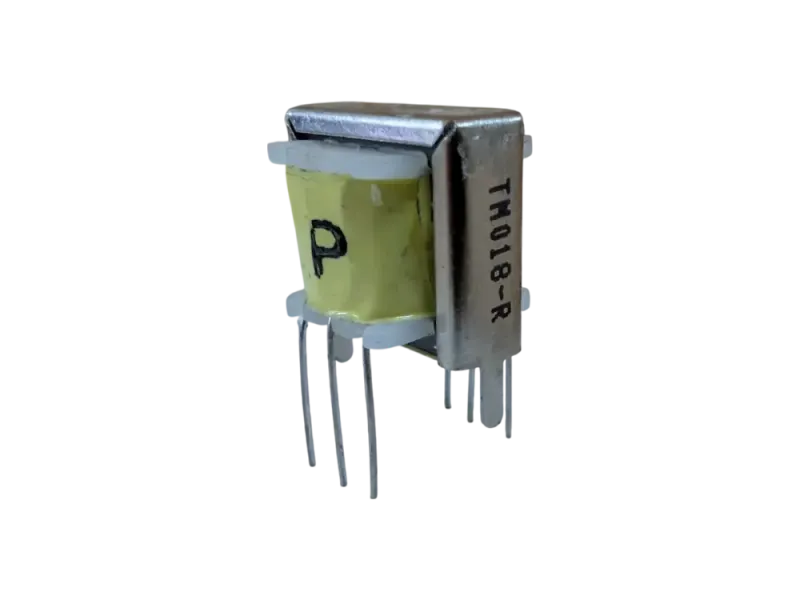

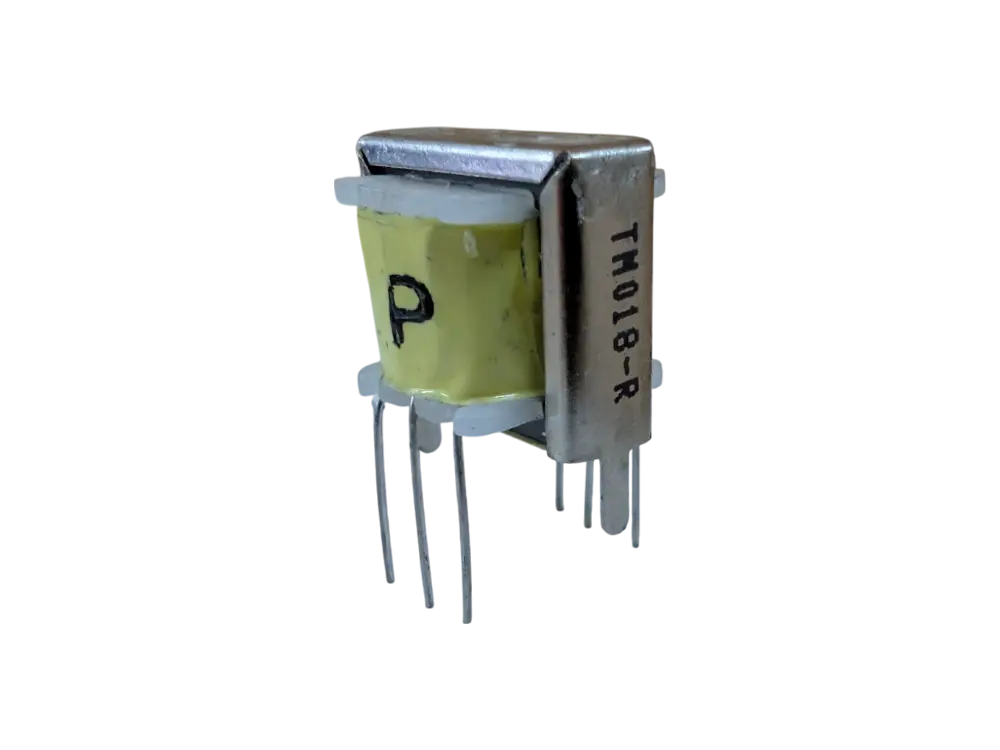

Xicon 42TM018 / 1:1

Description

Xicon Ultra-Mini Audio-Transformers

Typ / Type: 42TM018-RC
Impedanz / Impedance: 10 k CT - 10 k CT
Widerstand / Resistance: 550 : 550
Kern / Core: EI19
Windungen / Turns: 1 : 1

Files:

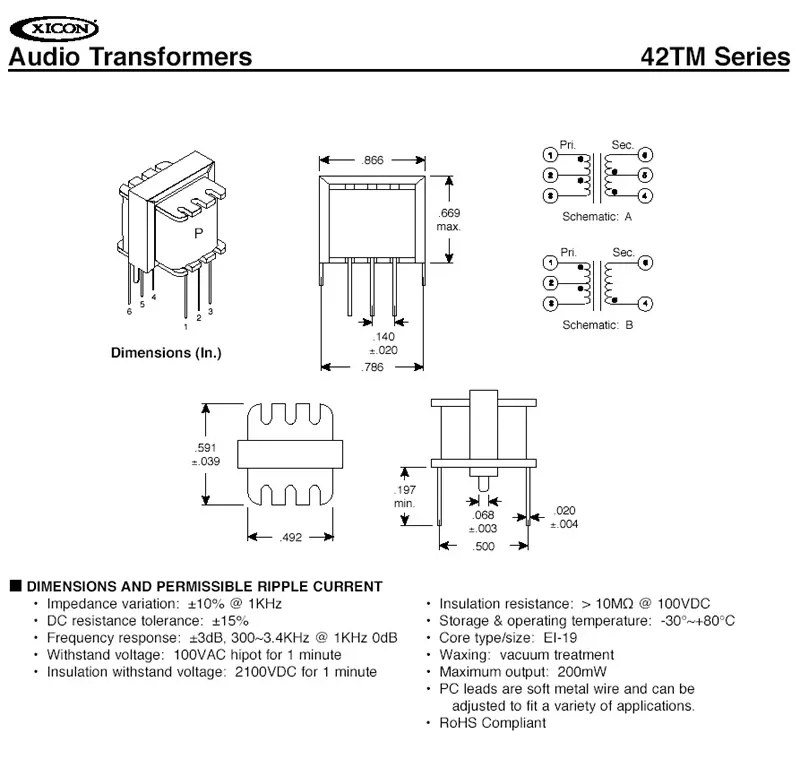

Datasheet
