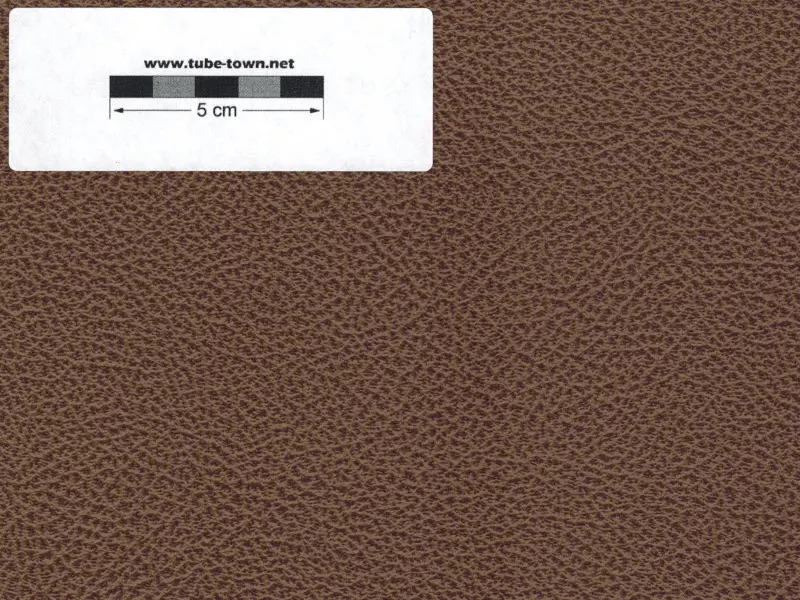

Tolex Tube-Town Cocoa Brown / Braun

PVC piping for baffles and front panels

• Size 3.1 x 8.5 mm
• 4 m piece

Universal Mono/Stereo Terminal

for the use with two 16 Ohm speakers the following configurations are possible:

• 8 ohm mono
• 16 ohm left + 168 ohm right stereo
• 16 ohm left only mono
• 16 ohm right only mono
• 32 ohm mono

Size: ca. 110 x 103 mm
Cutout: ca. 87 x 76 mm

Colorcodes:

• black: L-
• red: L +
• green: R -
• white: R +

Files:

• Datasheet

• Power Rating: 0,125 W
• Voltage Rating: 150 V AC
• Tolerance: 20%
• Shaft: 6,3 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M7 (6,8 mm)
• Termination: Solder lugs
• Dimension: 16 mm

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (pe-c1824n)
• Steel nickel plated
• High Quality
• 16 x Screws with extra flat head, silver

The 10” Veteran™ speaker from WGS™ has great crunchy cone breakup and clean, warm overtones. The seamed paper cone is key to this guitar speaker's sound.

Thiele-Small Parameters (for 8 Ohms speaker)

• Resonant Frequency (Fs): 110.86 Hz
• DC Resistance (Re): 6.9 Ohm
• Coil Inductance (Le): 8 mH
• Mechanical Q (Qms): 17.2304
• Electromagnetic Q (Qes): 1.9694
• Total Q (Qts): 1.7674
• Compliance Equiv. Vol. (Vas): 0.808 cu ft
• Mech. Compliance of Susp. (Cms): 119.122 mm/N
• BL Product (BL): 6.15 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.3021 grams
• Surface Area of Cone (Sd): 366.0962 cm squared
• Sound Pressure Level (spl): 93.84 db

If you are looking for a speaker with a classic American vibe, but need a smoother more soulful top end, look no further than the WGS G12C/S.  This is based on our popular G12C, but with a smooth cone, felt dust cap and just the right amount of edge treatment.  This speaker works great in amps where you are going for that big American clean but just need it a little softer up top.  Destined to be another WGS classic!

Thiele-Small Parameters

• Resonant Frequency (Fs): 95.68 Hz
• DC Resistance (Re): 7.47 Ohm
• Coil Inductance (Le): 0.28 mH
• Mechanical Q (Qms): 14.56
• Electromagnetic Q (Qes): 0.73
• Total Q (Qts): 0.69
• Compliance Equiv. Vol. (Vas): 19.70 cu ft
• Mech. Compliance of Susp. (Cms): 0.10 mm/N
• BL Product (BL): 12.83 T-M
• Diaphragm Mass Inc. Airload (Mms): 26.70 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.54 db
