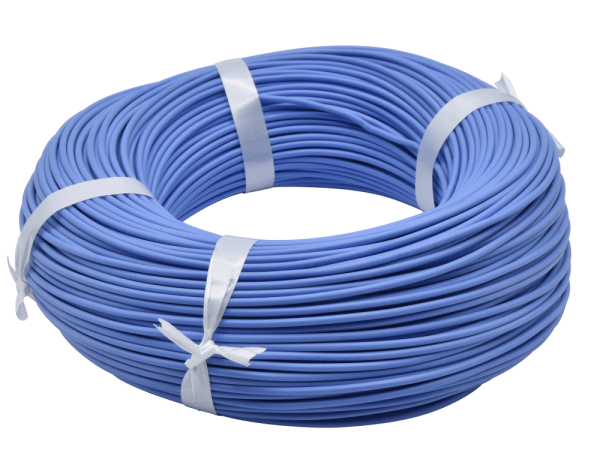

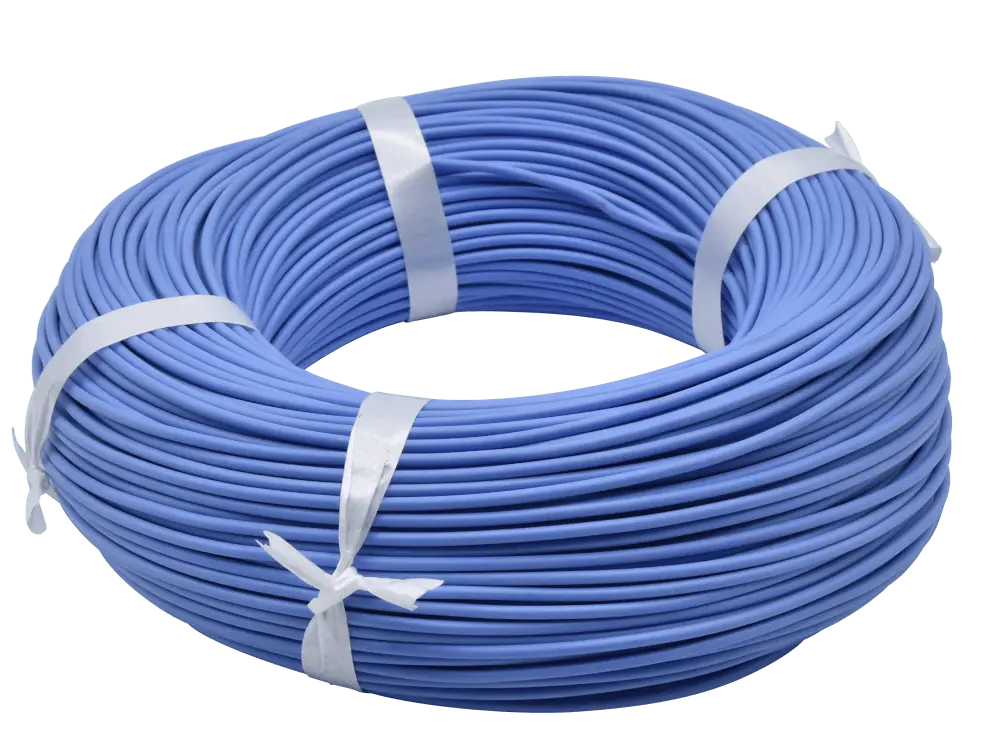

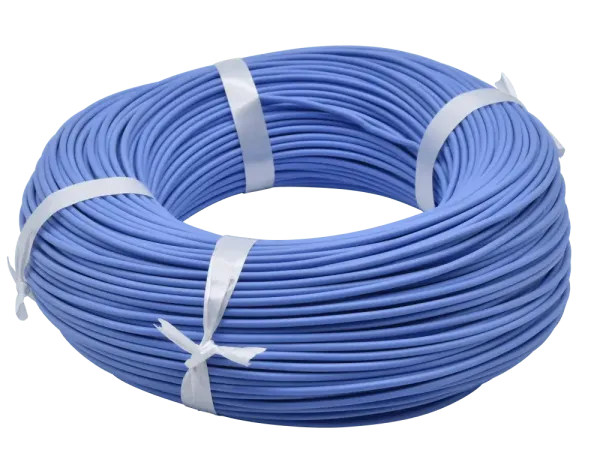

Wire Silicon 0,5 mm² blue, 100 m spool
Wire Silicon 0,5 mm² blue, 100 m spool
Wire Silicon 0,5 mm² blue, 100 m spool

Wire Silicon 0,5 mm² blue, 100 m spool

Product No.:
sil05-b-100
In stock. Delivery time depends on the destination country* In stock. Delivery time depends on the destination country*
Stock:
3 piece
RoHs:
conform
Weight:
0.9 kg per piece
35,95 €
0,36 € per m

incl. VAT excl. Shipping costs

Bookmark
Ask Question
EU legal guarantee notice
Description
Wire Silicon, SiAF
  • Insulation: Silicon
  • Operation Voltage: 500 V
  • Test Voltage: 2000 V
  • Operating temperatures: –50 bis +180 °C
  • Packing: 100 m
  • Cross-Section: 0,5 mm²
  • Outer Diameter: 2,1 mm
  • Stranded wire structure: 16 x 0,20 mm, tinned copper, halogen free
Manufacturer
Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
Customer reviews

Essential information about customer reviews We do not verify that the published reviews come from such consumers who have actually used or purchased the rated goods or services. All reviews, i.e. positive and negative, are published. No reviews that are unobjective, offensive or unrelated to the product will be published.

Unfortunately there are no reviews yet. Be the first who rates this product.
