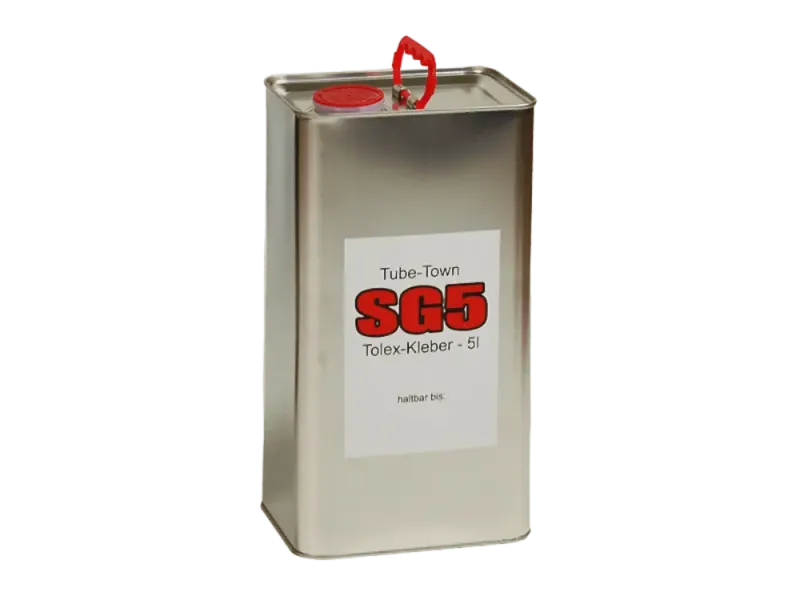

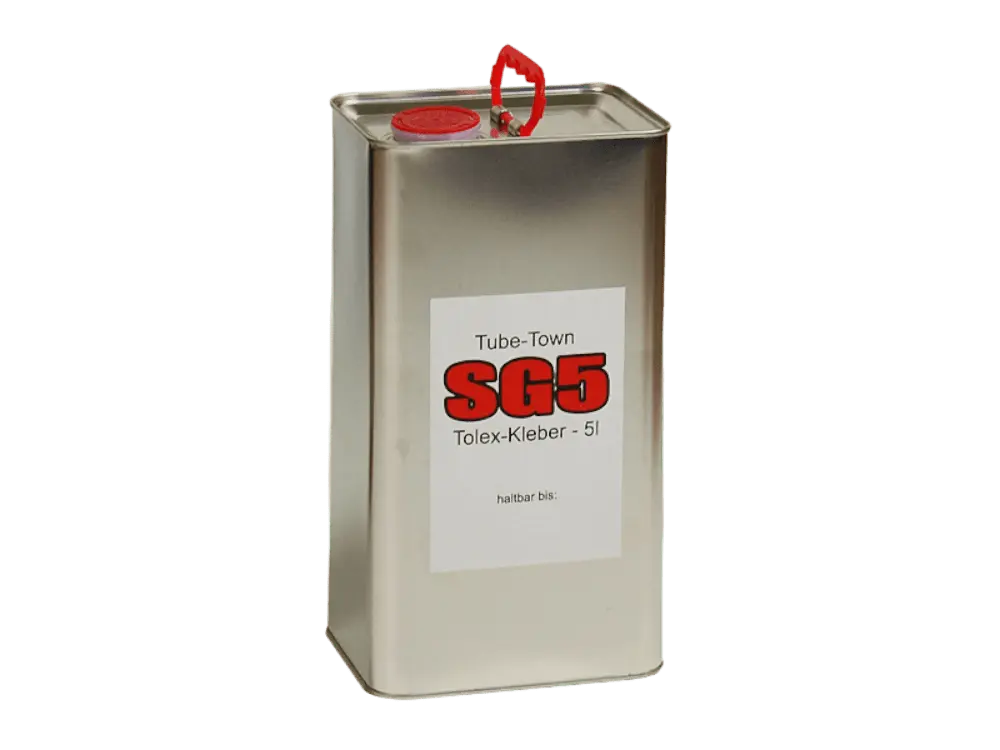

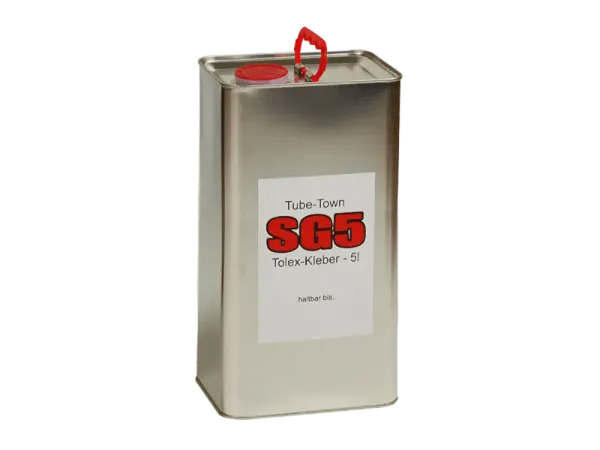

Tolex Glue SG5, 5 L

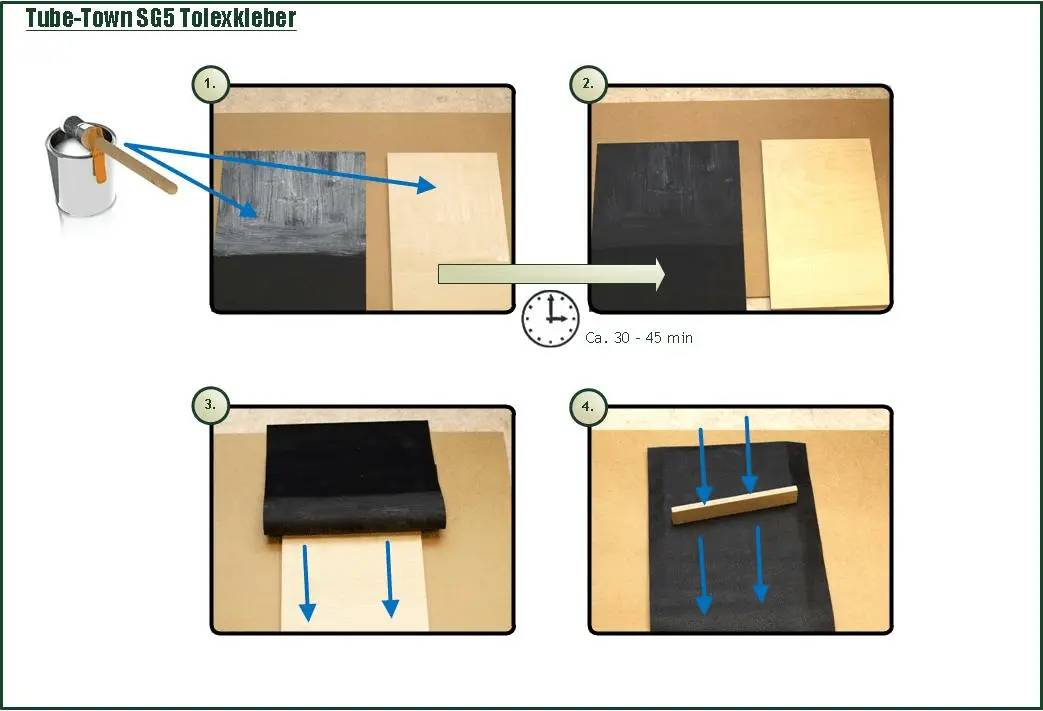

Ideal for glueing large areas. For use with paper, cloth, foams, coverings etc., onto wood, glass, metal, etc.
For bonding of Tolex, we recommend the "Tube-Town Tolexkleber SG5"!

Files:

• Datasheet
• Safety Datasheet

• Size: 111,5 x 59,5 x 27 mm
• Color: schwarz / black

Files:

• Datasheet

Width approx. 135 cm
Price per running meter
Color reproduction depends on the computer monitor and may vary
Supplied as one continuous piece when ordering more than 1 m

Material:

• 80% PVC film
• 20% polyester-cotton fabric
• REACH compliant

Please note!
When ordering more than 1 m of Tolex and selecting Deutsche Post / DHL Paket or Express as the shipping method, the Tolex will be cut to a width of approx. 115 cm. This is due to the maximum permitted parcel length of 120 cm for these shipping services.
To receive the full roll width, GLS or ExprexxXL must be selected as the shipping method.

Clamp for capacitors

• Material: Steel, galvanized
• Diameter: 35 mm

• up to T 70 °C
• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• UL 94 V-0, black
• for panel mounting
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering
• Design to IEC/EN 60320-1
• fuse holder to IEC/EN 60127-6
• Certifications: ENEC, Semko, UL, CSA

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

• Output Transformer 125A1A / 022640 Push-Pull
• for Deluxe, Deluxe Reverb
• Pri: 6,600 Ohm / CT
• Sec: 4, 8, 16 Ohm
• Power: 20 Watt

Files:

• Datasheet

Panel Mount Potentiometer

• Power Rating: 0,25 W
• Voltage Rating: 250 V AC
• Tolerance: 20%
• Shaft: 6,35 mm, Solid Shaft
• Shaft length: 15 mm
• Drill Ø: M8 (7,8 mm)
• Termination: Solder lugs
• Dimension: 24 mm

• Type: Toggle Switch
• Version: SPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life: 10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet
