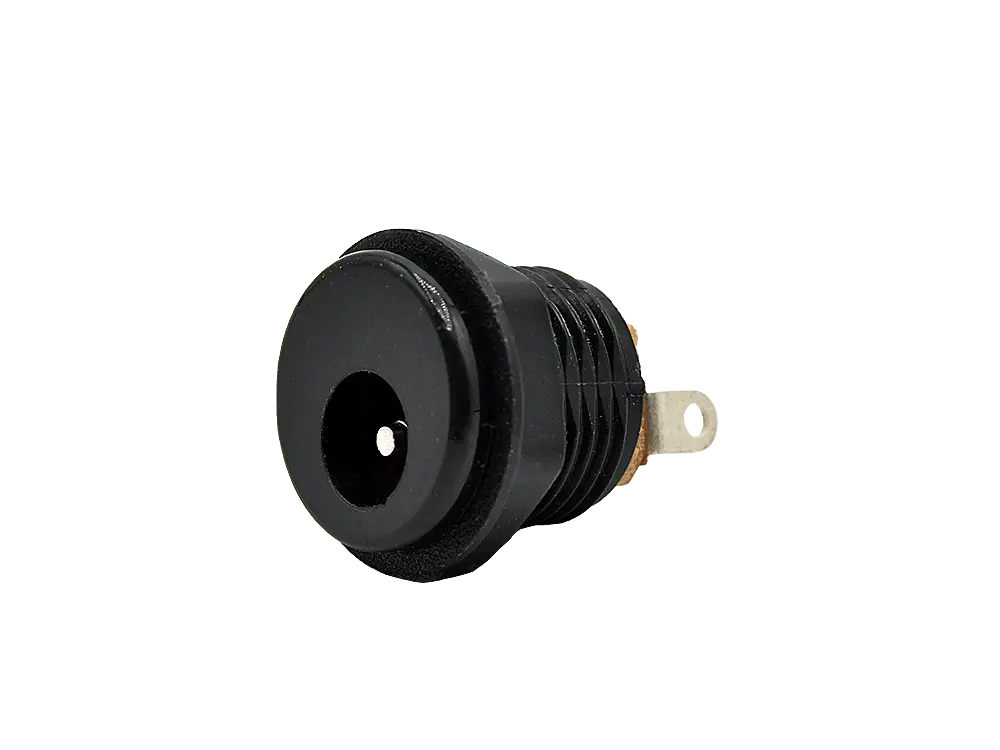

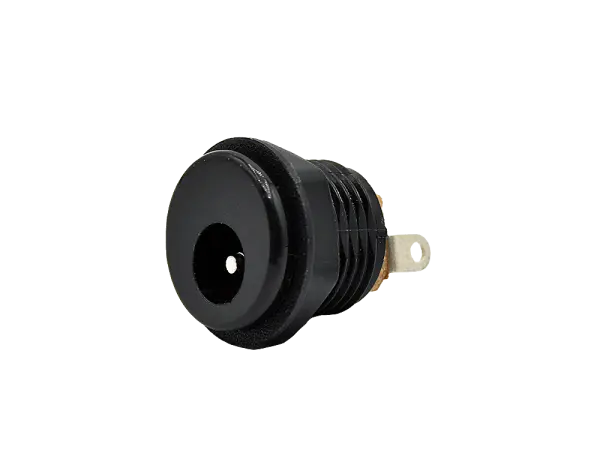

Power supply chassis sockets, for front side mounting

• Inner Diameter: 2,1 mm
• Outer Diameter: 5,5 mm
• Shaft Length: 9 mm

• Size: 91,5 x 124 x 45,1 mm
• Material: 1,5 mm Steel (DC01 / Sendzimer) - Extra heavy !
• Made in Germany

Files:

• Datasheet

• Inner Diameter: 2,1 mm
• Outer Diameter: 5,5 mm
• Shaft Length: 9 mm

Current model from English production!

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly 'hot-rodded' amplifiers, we set out to develop a modern speaker, capable of handling much more power and overdrive. To achieve this, we coupled our 'H' magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.
Our most revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton.

General Specifications

• Nominal diameter: 12", 305mm
• Power rating: 60Wrms
• Nominal impedance: Available 8Ω or 16Ω
• Sensitivity: 100dB
• Chassis type: Pressed steel
• Voice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 50oz, 1.42kg
• Frequency range: 70-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: Available 7.3Ω or 12.9Ω

Mounting Information

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 6.1", 156mm
• Mounting slot dimensions: 0.31", 7.9mm Ø
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.3", 135mm
• Unit weight: 10.4lb, 4.7kg

• Outside Diameter: 9,45 mm
• Inside Diameter: 3,95 mm
• Pack with 12 pcs.

The rosette is versatile and ideal for construction and assembly projects. Thanks to the high-quality brass material and nickel-plated surface, it is well protected against corrosion and offers a long lifespan.

Technical Data

• Inner diameter (d1): 6.4 mm
• Outer diameter (d2): 20 mm
• Height (h1): 4 mm
• Standards: DIN 17670
• Material: Brass
• Surface: Nickel-plated
• Pack of 10

made of black polyamide, temperature-proof to approx. 140 °C.

Countersunk raised head with cross recess

• Material: Steel
• Strength class: 4.8
• Surface: nickel-plated
• DIN: 966
• ISO: 7047

• Type: Countersunk raised head with cross recess
• Material: Steel
• Strength class: 4.8
• Surface: Zinc-plated
• DIN: 966
• ISO: 7047
• Price: per pcs.

Rocker Switch, Lighted red

• Version: DPST  ON-OFF
• Recess Ø: 20,2 mm
• Snap-in mount
• Rating: max. 6A / 250V AC
• Termination Style: solder lug / quick-connect terminals, silver plated

• Type: Footswitch
• Version: 3PDT Latching
• for True Bypass
• Rating: 1A/9VDC
• Contact resistance: <30mΩ
• Insulation resistance: 500VDC-100MΩ min.
• Dielectric strength: 500VAC for 1 minute
• Operating Life: 30.000 cycles
• Termination Style: solder-lugs

Files:

• Datasheet
