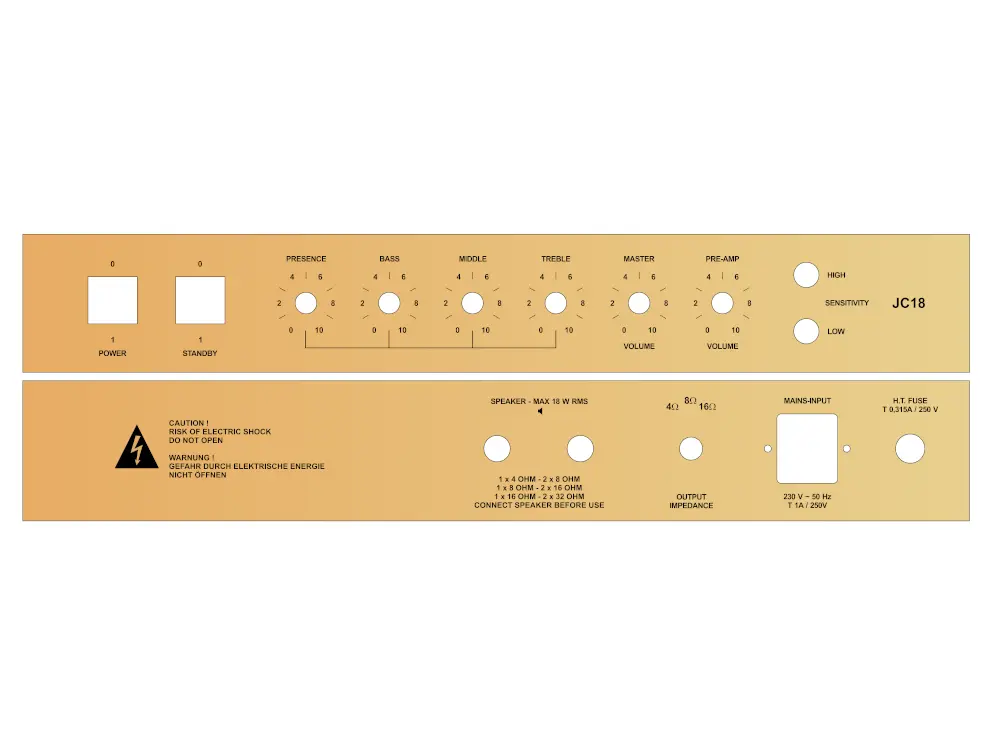

Faceplate for TT Amp-Kit JC18 - Gold GLOSSY

Set of componentes for building the TT JC18 Guitar Amp.
Please visit the >>Project page for more infos about the amp, schematics and layout.

INCLUDED:

• Powertransformer Tube-Town 18W, 0-120-230-240V @ 50/60 Hz
• Outputtransformer Hammond 1750PA
• Resistors
• Capacitors
• Jacks
• Light
• Wires
• Board
• Switches
• Tubes
• Fuses & Fuesholder

NOT INCLUDED:

• Chassis
• Knobs
• Faceplate

To build this project knowledge in electric engeneering, experience with high voltage, and the reading and understanding of schematics and dealing with measurement device is highly recommended .
There is NO step-by-step guide for beginners. The circuit and layout plan includes all relevant information. If you don't understand it then don't build it.
THIS IS NOT A BEGINNERS PROJECT !

Solder wire lead-free, ø 1.0 mm, 250 g
Composition: 0.3% silver, 0.7% copper, 99% tin, flux content: 2.5%, melting point 217 °C
Suitable for soldering work on electrical components and devices such as printed circuit boards, PCBs, SMDs, DIP components, cables, televisions, headphones or microphones. The integrated flux ensures particularly convenient and effective soldering.

Tube-Town EZ-Board for Fender 5F1

• Optimized board, improved grounding
• Used for the TT 5F1 kit
• Material: 1,5 mm FR3, black
