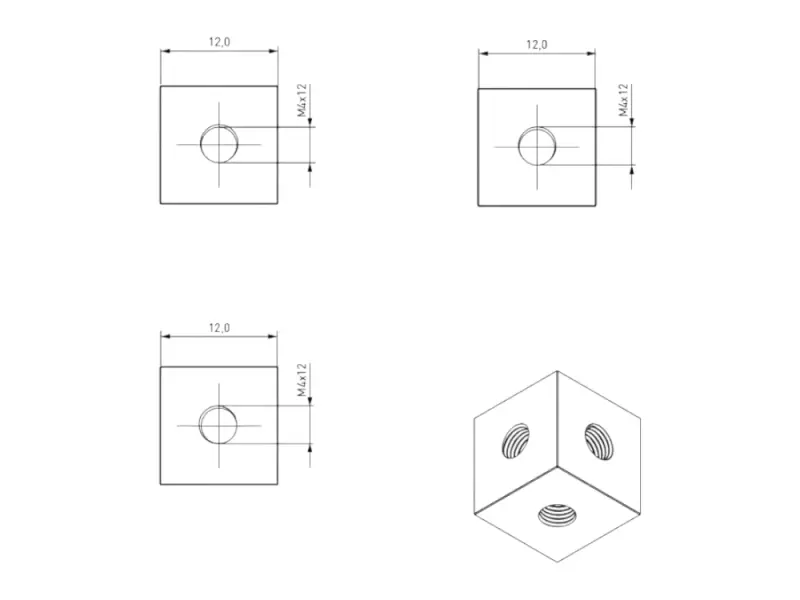

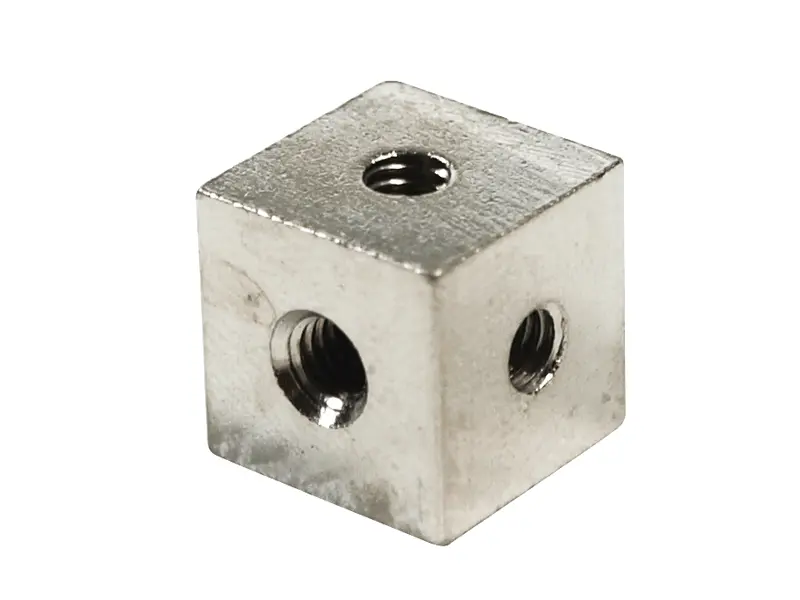

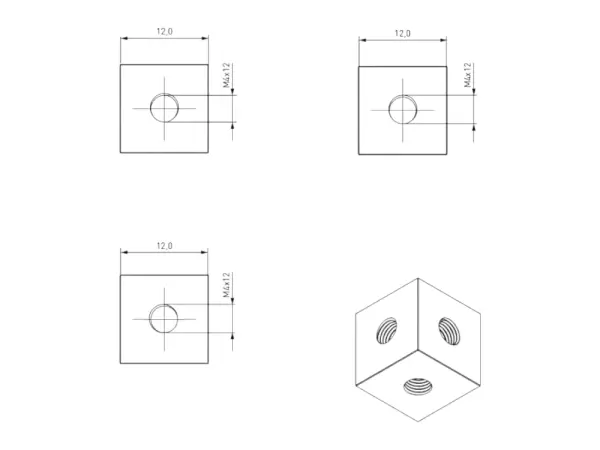

Cube Standoff Threaded 3xM4 / 12x12 mm

• 1x internal and 1x external thread
• Thread size: M3
• External thread: 6.0 mm
• Internal thread: 7.0 mm
• Material: galvanised steel
• Length: 10 mm
• Pack of 4

• Rated Voltage: 6 VDC
• Outer diameter: 11 mm
• Mounting hole: 8 mm

• Type: Toggle Switch
• Version:DPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life:    10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

• Datasheet

• Type: Toggle Switch
• Version: SPST, ON - OFF
• Rating: 15A / 250VAC, 10A / 400VAC
• Contact resistance: 10 mΩ max. at 1A 2VDC
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 2.000 Vrms 50 Hz min.
• Operating Life: 10.000 cycles at full load
• Termination Style: solder lug / quick-connect terminals

Files:

• Datasheet

• Version: High quality Micalex socket
• Glassfiber filled PPS black body
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

Silico-Wire with lug, assembled. Can be used for ground connection, earth protection etc.

• Diameter Wire: 0,75 mm²
• Length Wire: 0,5 m
• Lug crimped
• in compliance with VDE 0700-1
• incl. fastening material
• see datasheet

Files:

• Datasheet

This chassis is based on a regular HiWatt chassis which was used for amplifiers up to 100 Watt. The chassis was adapted and optimized for the YAH100 kit but get used for other HiWatt Clones too.

• Size: 483 x 238 x 70 mm
• Material: 1,5 mm Steel
• hot zinc dipped
• Reinforced corner joints
• Made in Germany
• Mounting: with cage nuts (not included)

• Faceplate Template

• Color: black
• Size:
  • A: 12 mm
  • B: 19 mm
  • D: 25,5 mm
  • H: 10 mm
  • h: 1,6 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• Color: black
• Size:
  • A: 10 mm
  • B: 12 mm
  • D: 17,5 mm
  • H: 6,8 mm
  • h: 2 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

Power Jack, Chassis mount

• different manufacturer
• Ratings IEC: 10 A / 250 VAC; 50 Hz
• Norm IEC320 / C14
• Betriebsspannung: 10 A / 250 VAC; 50 Hz
• Material: Housing PA6, black, UL 94V-0

• with one fuse holders 5.0 x 20 mm
• Housing: polyamide
• for panel mounting
• IEC320 / C14
• Double-pole + protective ground 10 A/250 V
• single-pole fusing with bridge to the fuse holder at the L terminal
• fuse holder terminals for soldering

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.
