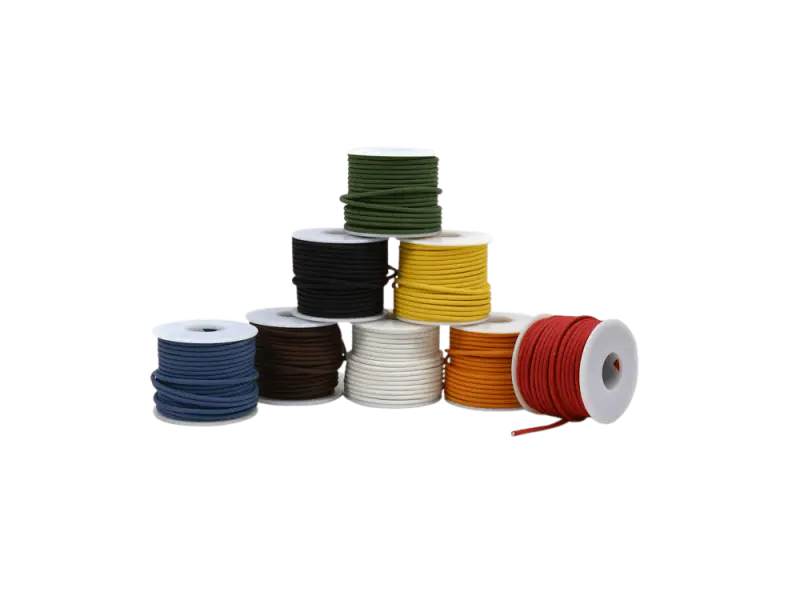

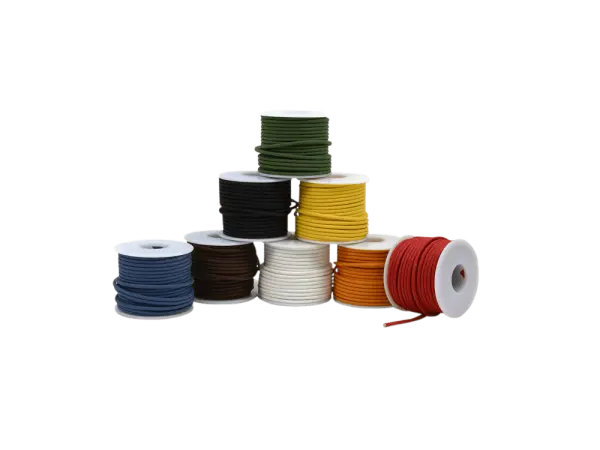

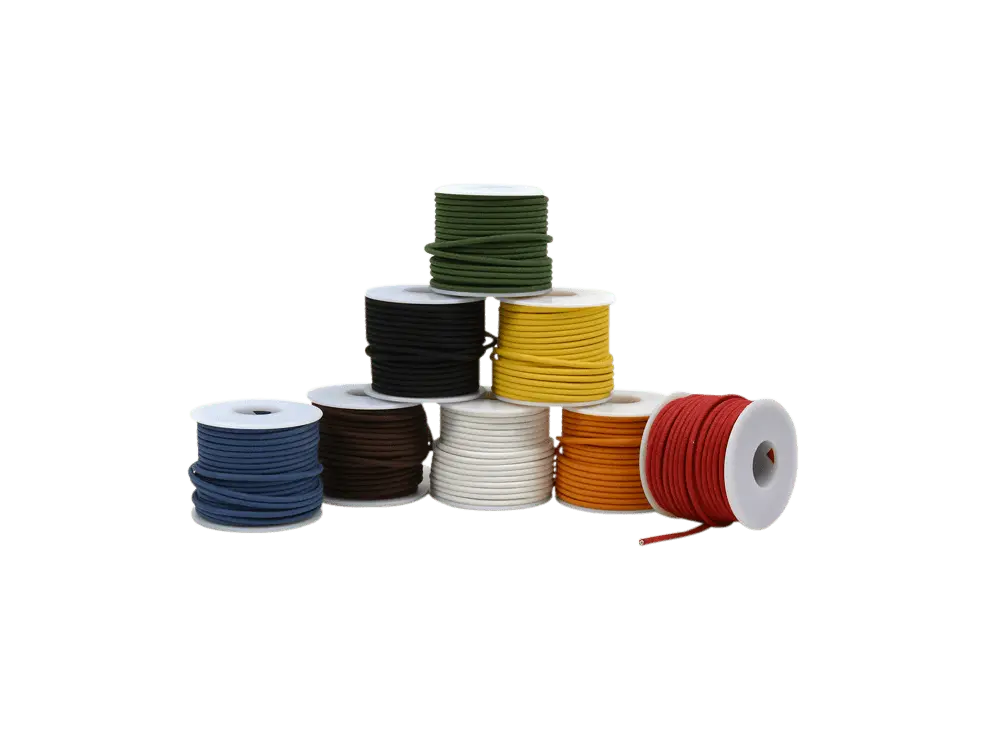

Cloth Wire stranded AWG #20 (0,52 mm²), white, 15,2 m

Set of metal corners for housing consisting of:

• 8 x Cabinet corner w/ cutaway 2 leg, silver (ah4023)
• Steel nickel plated
• Internal radius: 12 mm
• 16 x Screws with extra flat head, silver

Round dish / ferrule for 6.3 mm jack

• metal
• black powder coated
• incl. 3 screws

• Rubber foot with steel insert
• Size: d = 38 mm, h = 25 mm
• Pack of 4

Single tube, not matched

JJ 6V6 Double Mica double-layered mica in the upper part of the tube. This stabilizes the tube system and significantly reduces possible vibrations that can occur due to heavy mechanical stress. This version of the JJ 6V6 was specifically designed for use in combo amplifiers.

The JJ6V6 is a beam power pentode with octal base and a maximum plate dissipation of 14W. It has fat low end and full mid tones with very good tone separation and a smooth, clean high end - in general, a very balanced tone.
Currently, the only new production 6V6 which is approved for up to 500V anode voltage in pentode operation.

Files:

• Datasheet

• Size: 365 x 160 x 65 mm
• 2 mm Aluminium
• Made in Germany
• Mounting: with cage nuts (not included)
• With two cutouts for power plug

• Datasheet

5E3 Powertransformer, Vertical Mount

• Pri.: 0-120V / 0-110V-120V @ 50Hz
• Sec.1: 320-CT-320 V @ 85 mA DC
• Sec.2: 6.3V C.T. @ 3 A
• Sec.3: 0-5V @ 3 A
• Made in Europe

• Datasheet

Building on the popularity of our G12C, we developed the G12Q for those times when you want the speaker to add some natural, vintage breakup but maintain clarity.  With a 20 oz magnet and a 1" voicecoil, the G12Q definitely has a vintage American flavor.  We highly recommend it with 5E3 style circuits.

Thiele-Small Parameters

• Resonant Frequency (Fs):91.91 Hz
• DC Resistance (Re): 7.70 Ohm
• Coil Inductance (Le): 0.26 mH
• Mechanical Q (Qms): 20.75
• Electromagnetic Q (Qes): 2.64
• Total Q (Qts): 2.35
• Compliance Equiv. Vol. (Vas): 22.17 cu ft
• Mech. Compliance of Susp. (Cms): 0.12 mm/N
• BL Product (BL): 6.57 T-M
• Diaphragm Mass Inc. Airload (Mms): 25.71 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 95.92 db

The G12C is a 12" ceramic speaker with a 35 oz magnet and seamed cone. It's comparable to the Jensen C12n. However, our speaker has a warmer sound and more depth in the tone.

Thiele-Small Parameters

• Resonant Frequency (Fs): 134.10 Hz
• DC Resistance (Re): 7.71 Ohm
• Coil Inductance (Le): 0.30 mH
• Mechanical Q (Qms): 18.33
• Electromagnetic Q (Qes): 1.43
• Total Q (Qts): 1.33
• Compliance Equiv. Vol. (Vas): 8.76 cu ft
• Mech. Compliance of Susp. (Cms): 0.05 mm/N
• BL Product (BL): 11.80 T-M
• Diaphragm Mass Inc. Airload (Mms): 30.58 grams
• Surface Area of Cone (Sd): 366.10 cm squared
• Sound Pressure Level (spl): 99.48 db

The 10” Veteran™ speaker from WGS™ has great crunchy cone breakup and clean, warm overtones. The seamed paper cone is key to this guitar speaker's sound.

Thielle-Small Parameters

• Resonant Frequency (Fs): 110.86 Hz
• DC Resistance (Re): 6.9 Ohm
• Coil Inductance (Le): 8 mH
• Mechanical Q (Qms): 17.2304
• Electromagnetic Q (Qes): 1.9694
• Total Q (Qts): 1.7674
• Compliance Equiv. Vol. (Vas): 0.808 cu ft
• Mech. Compliance of Susp. (Cms): 119.122 mm/N
• BL Product (BL): 6.15 T-M
• Diaphragm Mass Inc. Airload (Mms): 17.3021 grams
• Surface Area of Cone (Sd): 366.0962 cm squared
• Sound Pressure Level (spl): 93.84 db
