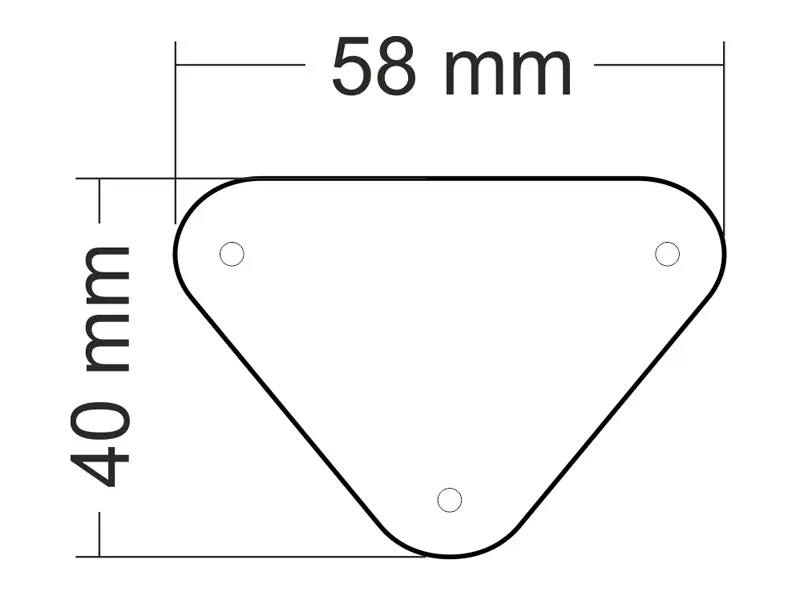

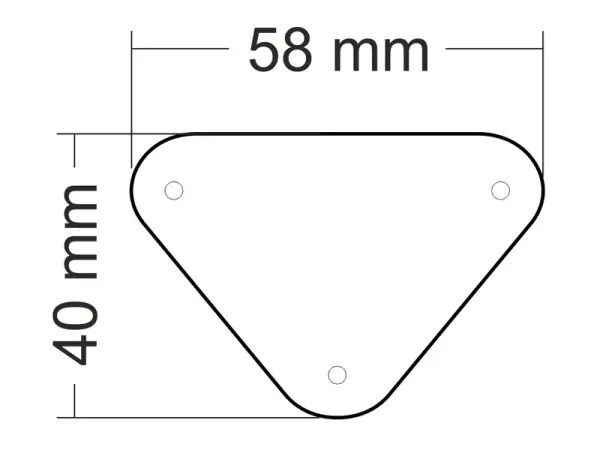

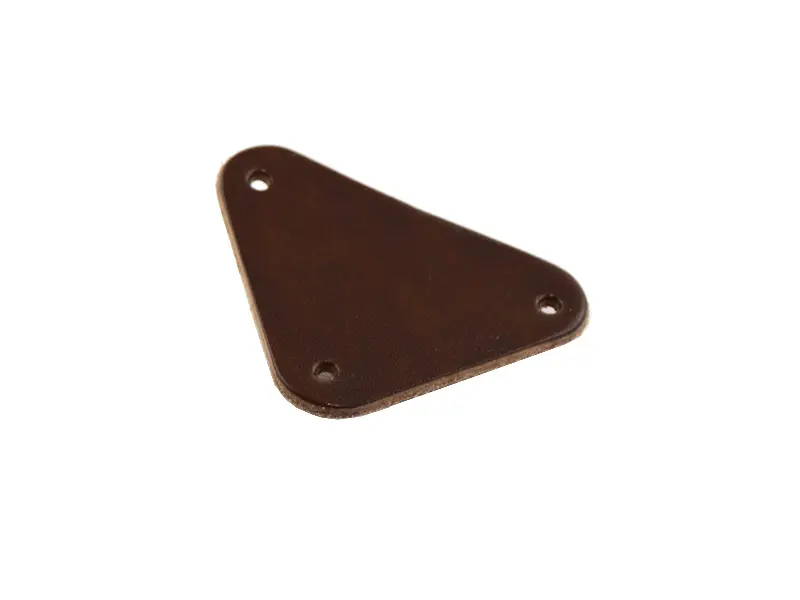

Cabinet corner Leather dark brown, Set of 4

PVC piping for baffles and front panels

• Clear with metal Tinsel
• Marshall style
• Size 4.8 x 10 mm
• 4 m piece

• Texture and color like the original Marshall Bluesbreaker 1974x Weaves, same manufacturer
• Size (W x L): ca. 80 x 100 cm (only available in this size)
• Material: 100% treated paper
• Price per pcs.
• Actual shades may vary.

• FAQ Grillcloth

• Plastic covered with steel inner core
• End plates gold plated
• Color: Black
• Mounting hardware screws and t-nuts included

Custom Shop Faceplate, Transply, laser engraved

• Max. Width: 600 mm
• Material:
  • 1,5 mm Transply all Colors starting with #C
  • 0,8 mm Transply all Colors starting with #D
• Working area: see option list
• Colors: see option list
• Engraving: Yes
• Cutting: Yes
• Resolution: max. 500 dpi
• Machining: Laser

Important:

• We will not produce faceplate which contain copyright-protected elements like logos or names !
• Minimum size of an plate: 5 x 5 cm
• Smaller objects should be connected to larger objects otherwise they can get lost. Example: connect the i-dot with the rest of the lettering for a cut-out lettering.
• Minimum distance between two blades: 3 mm
• Bitmaps and Inkscape: If possible DO NOT use bitmaps, because this causes many problems: the PDF file could be corrupt or the quality of the finished product is bad etc.. Bitmaps should always be converted to vector graphics before they are used in the layout. There are numerous online converters which convert bitmaps (PNG, JPG etc.) to SVG. Use them, convert the Bitmap and avoid problems.

How does it work ?

First of all you should read the documents and infos on the TT LaserShop Pages !

a) Select the required size, material and color combination

Hint: Several objects can be placed on a work surface, so cost-efficient material processing is possible. Example: two plates with a size of 55 x 490 mm (front and back plate) can be placed on a work space H2 with the overall size of 150 x 600 mm and can be ordered together. The configurations and optimizations have to be present in the submitted data.

b) Submit the order through the online shop.

c) Prepare the data according to our specifications. You can UPLOAD the finished data below on the page or sent it to us after completion of the order by e-mail (info at tube-town.de).

d) That's it. The rest is our job.


Note on the Parameter "Plates per Sheet"
The number of plates or logos per sheet. The more plates are on one sheet the longer the runtime is. We can make a maximum of 40 plates per sheet.

Note on "Logo-Option"
If your data contains large areas which need to be engraved (mostly seen on logos or plates for stomp-boxes) then you should check this option then we will engrave the plates twice to make sure that the quality is a as good as possible.
In principle, however, it should be avoided to use large, monochrome areas because one will always see small lines from the laser engraver.


 !! IMPORTANT: WHEN CREATING THE PDF FILE, MAKE SURE TO CONVERT THE FONTS TO CURVES. !!
Overview of the requirements click here

Screwnail 20 mm

• black
• Pack of 25

Coupling Sleeve

Bare steel. Connection can be separated as often as  desired.
Fast screwing into holes with hand, electric and pneumatic tools.
Sharp self - cutting outside thread. Inside thread M5.

Application:   Wood,  plastic and other soft materials.

suitable spiral drill bit 9mm, Product No.: rk-208090

Universal Mono/Stereo Terminal

for the use with two 8 Ohm speakers the following configurations are possible:

• 4 ohm mono
• 8 ohm left + 8 ohm right stereo
• 8 ohm left only mono
• 8 ohm right only mono
• 16 ohm mono

Size: ca. 110 x 103 mm
Cutout: ca. 87 x 76 mm

Colorcodes:

• black: L-
• red: L +
• green: R -
• white: R +

Files:

• Datasheet

• Mounting fittings: Steel, nickel plated
• Color: Dark brown
• WITHOUT NUTS AND SCREWS

• Rubber foot with steel insert
• Size: d = 38 mm, h = 20 mm
• Pack of 4
• Screws included
