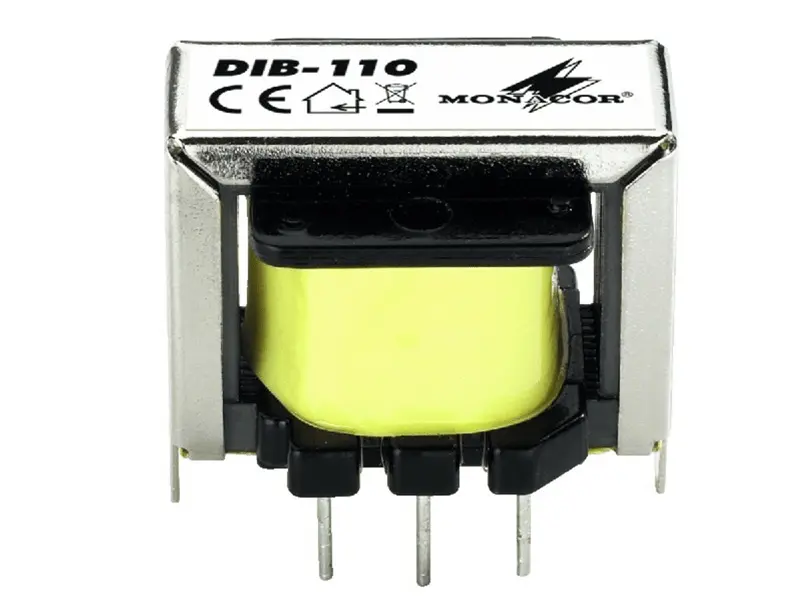

Audio transformer 10:1 for microphone signals
- Unshielded version with print connections
- Wideband version
- Change from unbalanced to balanced and vice versa
- Galvanic isolation to avoid/eliminate hum loops
- Max. input voltage: 5V (1% THD/40Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Technical Facts Transformers
- Frequency range: 15-30,000Hz

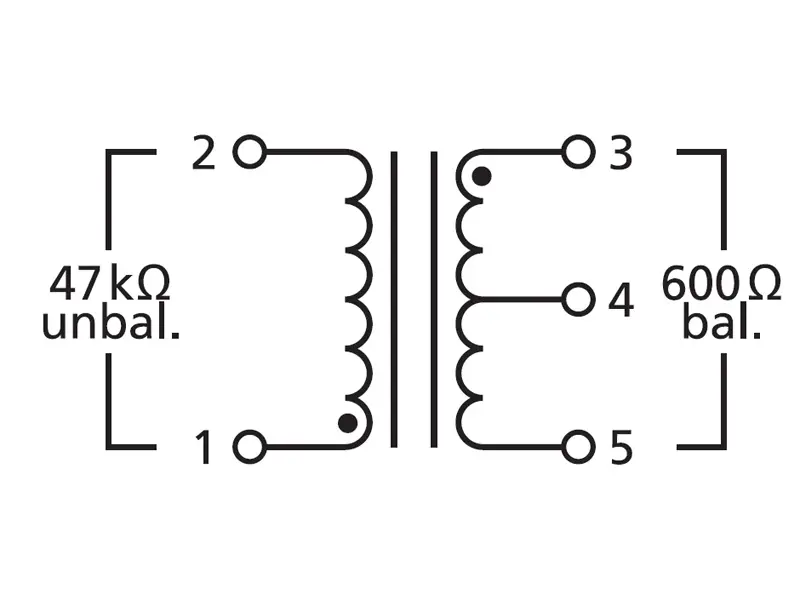

- Inputs: 47kOhm, unbal.
- Outputs: 600 Ohm, bal.
- Transmission ratio: 10:1
- Admiss. ambient temp.: 0-40 °C
- Dimensions: 25x24x21mm
- Weight: 28g
- Inputs: -
- Outputs: -
