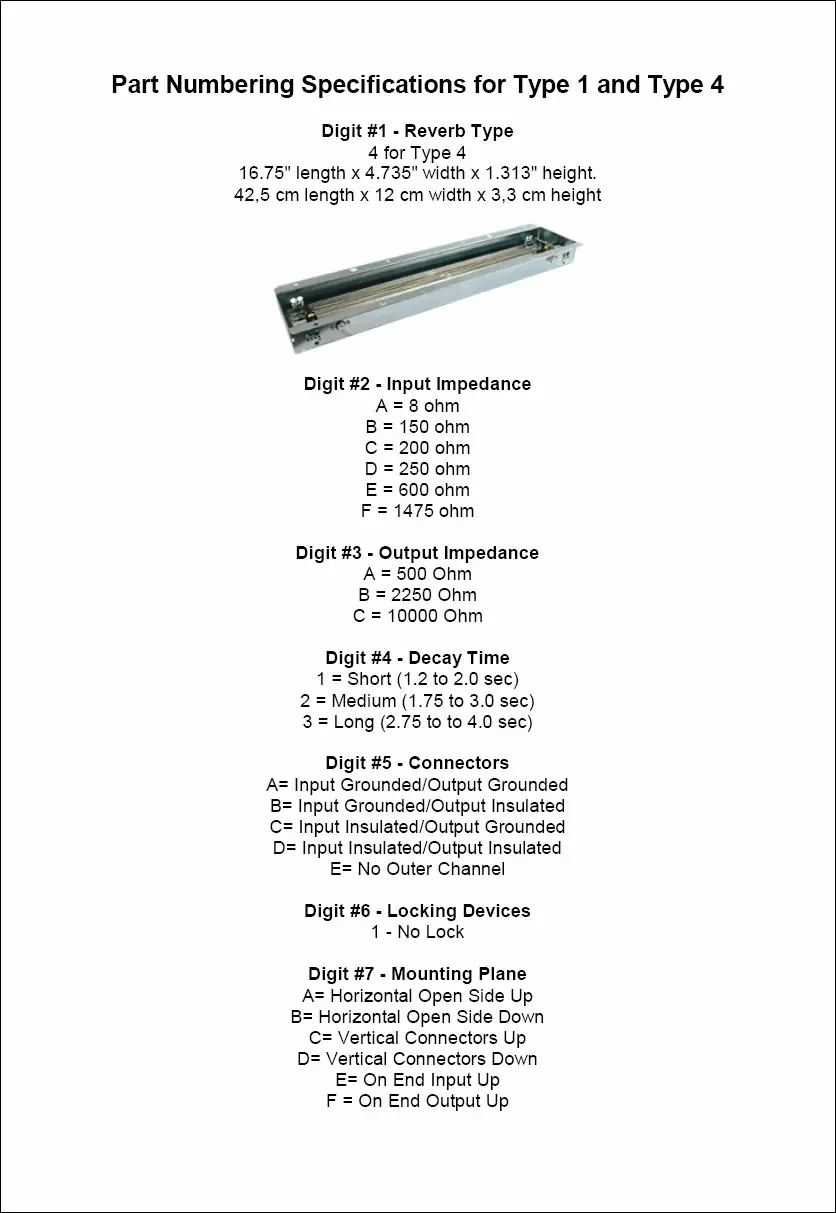

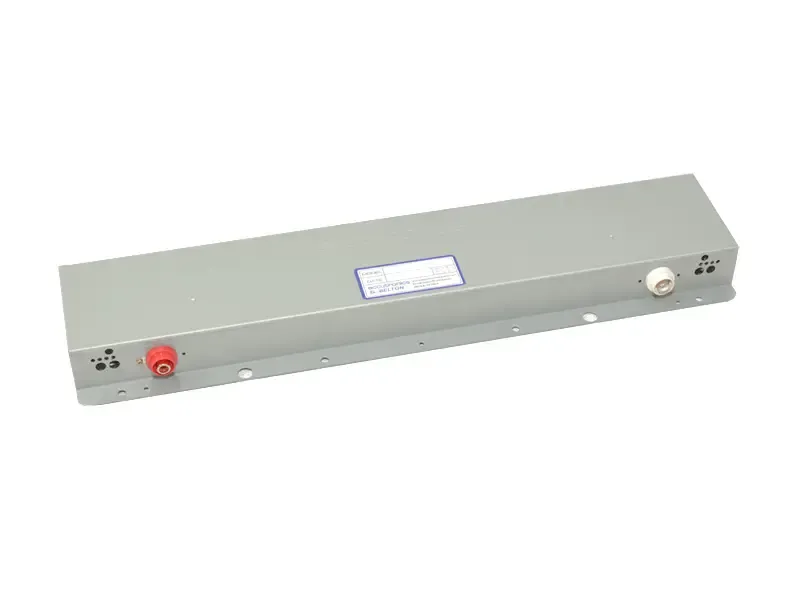

Accutronics Reverb Tank 4BB3C1B

• Rubber grommets for reverb tanks, package of four.
• Mounting Hole Diameter = 3/8"
• Outer Diameter = 1/2"

4 tubes, matched as quad

Standard EL34 made by JJ with a smooth and dizzy sound.

Limiting Values:

• Ua0: 2000 V
• Ua: 800 V
• Wa(max): 25 W
• Ug20: 800 V
• Ug2: 450 V
• Wg2(max): 8 W
• Ik: 150 mA
• Uk/f: 100 V
• Rk/f: 20 kΩ

• Datasheet

Steel Bottom Plate for Hammond 1441 and 1431-Series Chassis

• Size: 152,5 x 102 mm

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 15 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 16 mm x 30 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 22 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 100 µF
• Voltage Rating: 350 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 37 mm
• Termination Style: axial

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 10 µF
• Voltage Rating: 100 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 10 mm x 30 mm
• Termination Style: axial

The newest member in the JJ family of ECC83/12AX7 tubes is the JJ ECC83MG. The MG is a 12AX7 with a bit lower amplification than a standard 12AX7. Our measurements show that the difference is small, but the new tube sounds more linear than the standard JJ 12AX7, and in amps produces a milder, gentler sound. The mechanical construction shows that it is not just another minor variation of the normal JJ 12AX7. The new tube has longer plates.
The JJ ECC83MG is interesting for low and medium gain amplifiers, as well as for audio, where a too hot amp needs to be tamed; as well as an alternative to a 12AY7.

Files:

• Datasheet

• Type: Aluminum Electrolytic Capacitors
• Capacitance: 33 µF
• Voltage Rating: 500 V
• Tolerance: +/- 20%
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: Ø 18 mm x 39 mm
• Termination Style: axial

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• +/- 5% tolerance
• -55° C to 240° C operating range
• Max 500 V
• Excellent flame retardant coating
• Different manufacturers

• Original 6K6
• NOS
• Mixed Brands
• not matched
