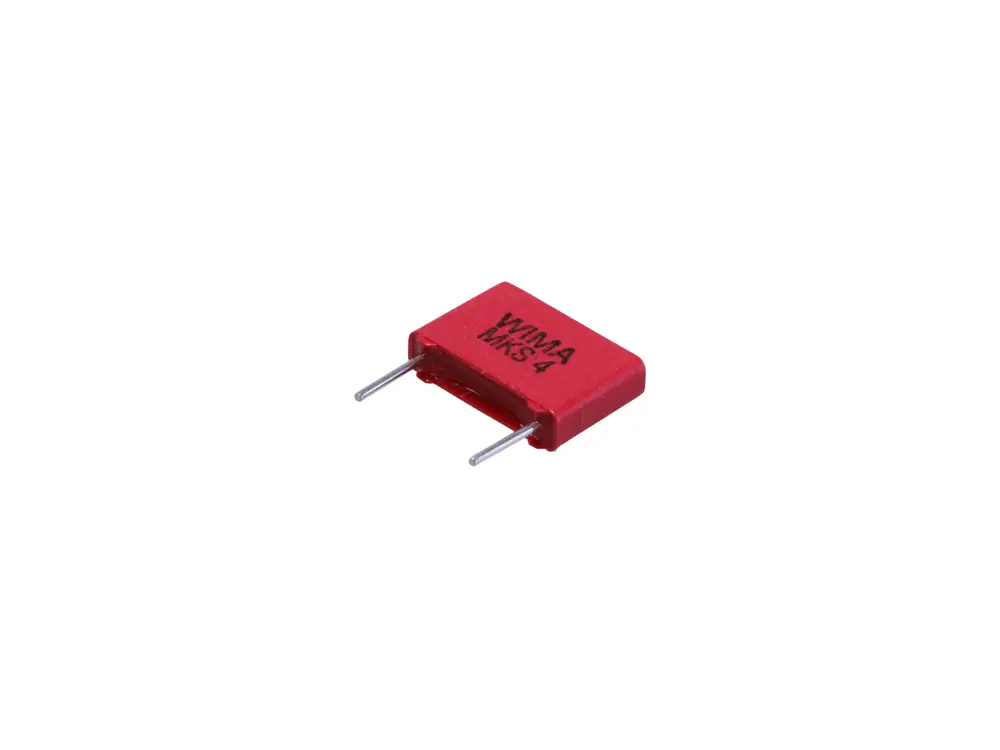

WIMA MKS 4 film capacitor 0,47µF / 250 V

Description

Type: Film capacitor
Dielectric: polyethylene terephthalate foil
Capacitance: 0,47 µF
Voltage Rating: 250 VDC
Tolerance: -20 % / +20 %
IEC climate category: 55/100/56
Operating Temperature Range: - 55°C / + 100 °C
Dimensions: 13 x 6 x 12 mm
Termination Style: radial
Grid: 10
