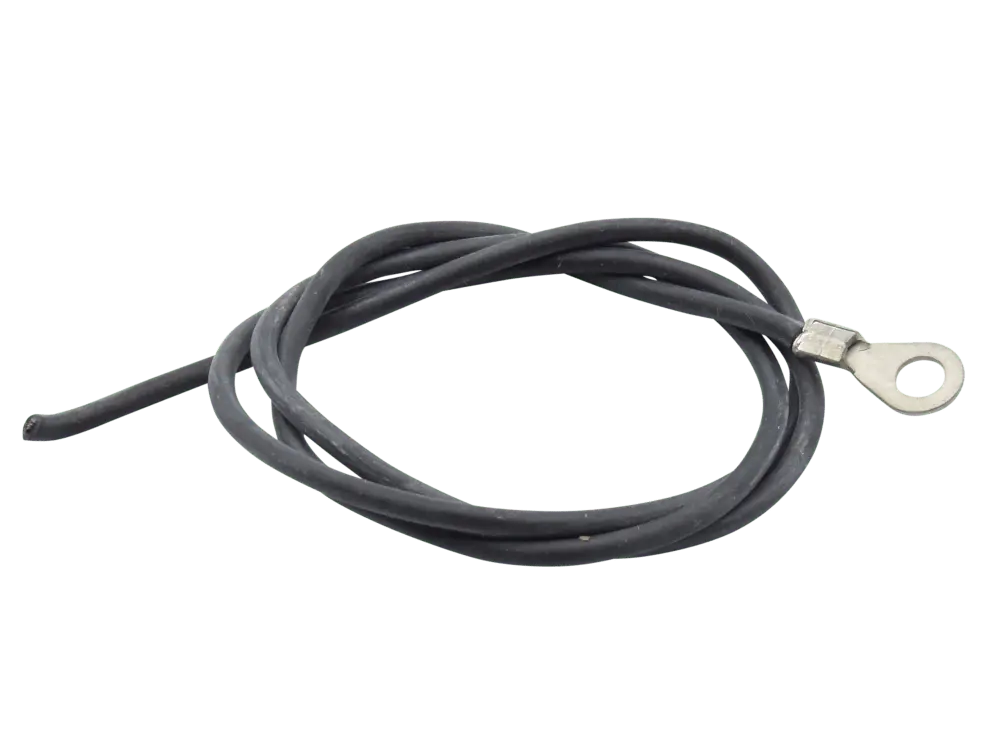

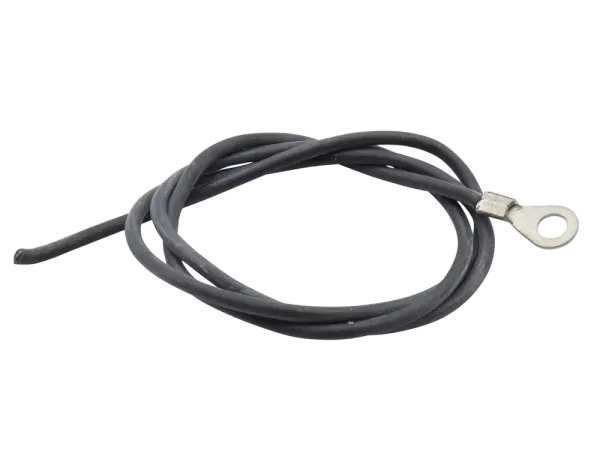

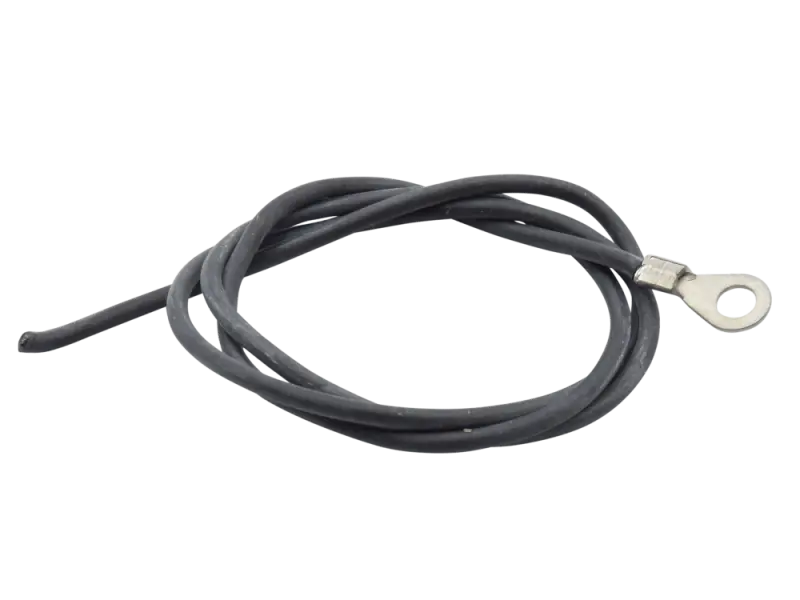

TTCA Sil-Wire 0,75 mm² with lug, black, assembled

• Type: Noval Socket Belton VT9
• Version: High quality Micalex socket
• Termination Style: print / pcb mount
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84,
•   EZ81, EL844 etc.

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Socket Clamp / Tube Retainer fits for many octal base tubes.

• Pri: 120V, 230V, 240V @ 50Hz
• Sec1: 178-0-178 V @ 300-0-300 mA
• Sec2: 6,3 VCT @ 7,5A
• Sec3: 98 V @ 150mA
• Sec4: 12,6 V @ 1A

Made with Grain Oriented Electrical Steel Cores for better magnetic permeability, for

• more efficiency
• more linearity
• less distortion
• and a higher performance

• Datasheet

• Output-Transformer Push-Pull
• for JCM800 / JMP 100 Watt
• Pri: 1700 Ohm / CT
• Sec: 4, 8, 16 Ohm
• Power: 100 Watt

Files:

• Datasheet

• Color: silver
• Length: 40 mm
• Including Base and Shield

• Color: black
• Size:
  • A: 12 mm
  • B: 19 mm
  • D: 25,5 mm
  • H: 10 mm
  • h: 1,6 mm
• Material: soft PVC,UL 94 V-2
• Operating temperatures: –30 to +60 °C

• High quality Micalex socket
• Glassfiber filled PPS black body
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

4 tubes, matched as quad

TT 6L6 NG - Selected and tested by hand, suitable as a direct replacement type for all 6L6GC and 5881 tubes.

• Triode
  • Ua = 450 V
  • Ug2 = 450 V
  • Wa = 30 W
• Pentode
  • Ua = 500 V
  • Ug2 = 500 V
  • Wa = 30 W
• Grid No 1 Circuit Resistance
  • Fixed Bias 0,1 MΩ
  • Self Bias 0,5 MΩ

• Version: High quality Micalex socket
• Glassfiber filled PPS black body
• Termination Style: print / pcb mount
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.
