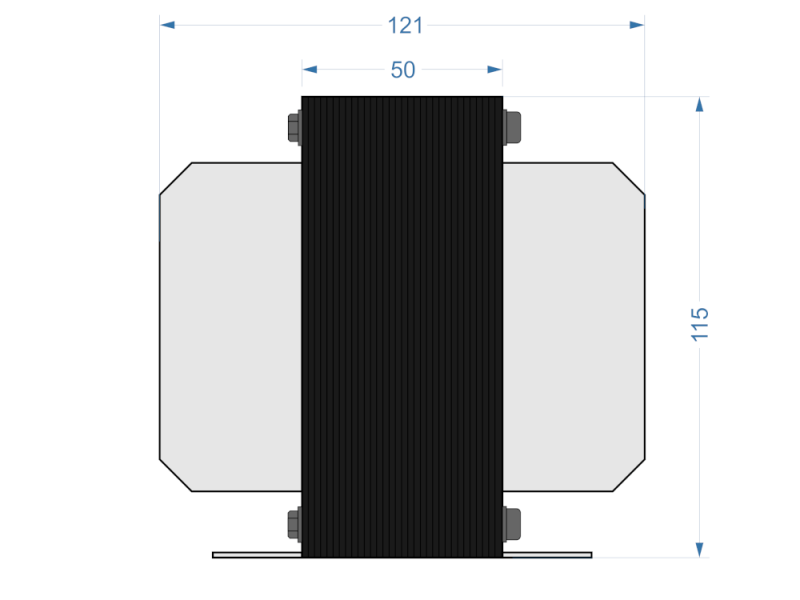

TT Powertransformer 100 Watt for Marshall / JCM 800 / Plexi

Clamp for capacitors

• Material: Steel, galvanized
• Diameter: 35 mm

TT-Chassis Aluminium - Typ 001 - Basic

• Size (Marshall Small Size):
  • Width: 430 mm
  • Depth: 170 mm
  • Height: 65 mm
• Material: 2 mm Aluminium
• Mounting: with cage nuts (not included)
• WITHOUT CUTOUTS
• Made in Germany

• Datasheet Drawing Version 2019 (PDF)
• Tamplate for Faceplate

Aluminium chassis based on the YAH100 chassis, but without cut-outs, drillings etc.

• Size: 483 x 238 x 70 mm
• Material: 2 mm AlMg3
• Reinforced corner joints
• Net Weight ca. 1,4 kg
• Mounting: with cage nuts (not included)
• Made in Germany

• Faceplate Template

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: 12AX7, 12AT7, 12AU7, EL84, EZ81, EL844 etc.

• Version: High quality Micalex socket
• Chassis mount
• Termination Style: solder lugs
• for Tube Type: EL34, E34L, 6L6, 6V6, 6550, KT66/77/88 etc.

Cliff 11607 mono jack

• Jack socket, mono
• switched
• gold plated
• for chassis mounting, 4 solder terminals
• for 6.3 mm jack plug

• Datasheet

Cliff 1220 stereo jack

• Jack socket, stereo
• switched
• for chassis mounting, 6 solder terminals
• for 6.3 mm jack plug, stereo

• Datasheet

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size:
  • Ø: 20 mm
  • H: 12,5 mm
• Mounting: Set-Screw

• Material: Phenolic
• Shaft Size: 6 - 6,3 mm
• Size: 19 x 14,5 mm
• Mounting: Hexagon Set Screw
