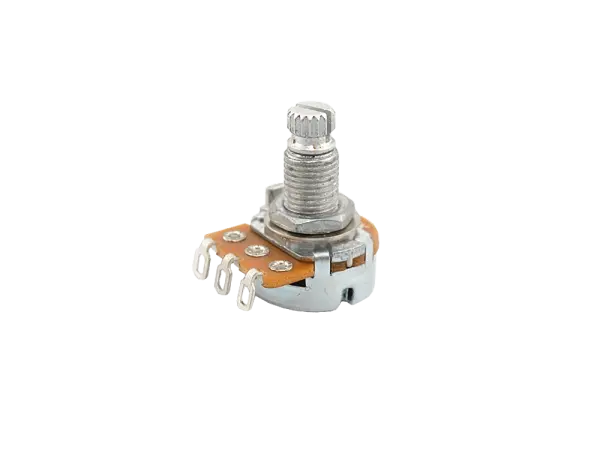

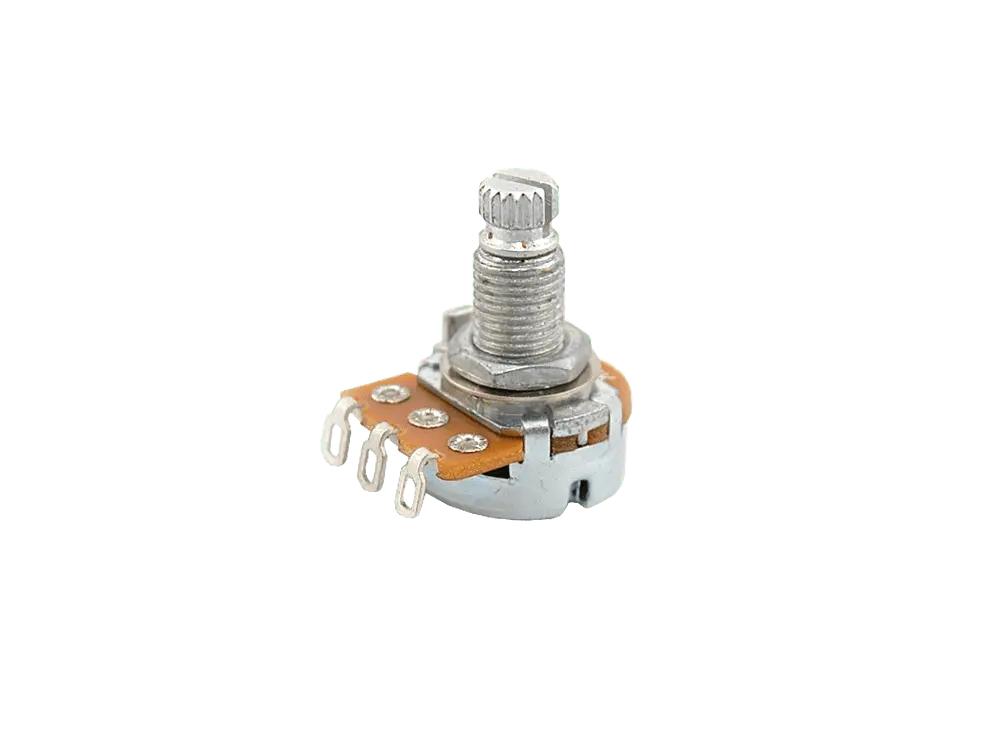

TT Potentiometer 16 mm 25k lin

Description

TT Potentiometer Made by Alpha

Electrical Characteristics

Total Resistance Tolerance: +/- 20%
Rated Power
- B/Lin Taper: 0,125 W
- A/Log Taper: 0,1 W
Max. Operating Voltage
- B/Lin Taper: 150 V AC
- A/Log Taper: 150V AC
Noise: 47 mV max.
Insulation Resistance: 500 V DC 1000MOhm
Withstand Voltage: 1 minute 500 V AC
Rotational Life: 15000 Cycles

Mechanical Characteristics

Material

Shaft: Cast Iron (Aluminium Zinc)
Bushing Material: Cast Iron

Manufacturer

Herstellerinformationen | Manufacturer Information

Tube-Town GmbH
Rumbergring 37
D-66969 Lemberg
eMail: info@tube-town.de
