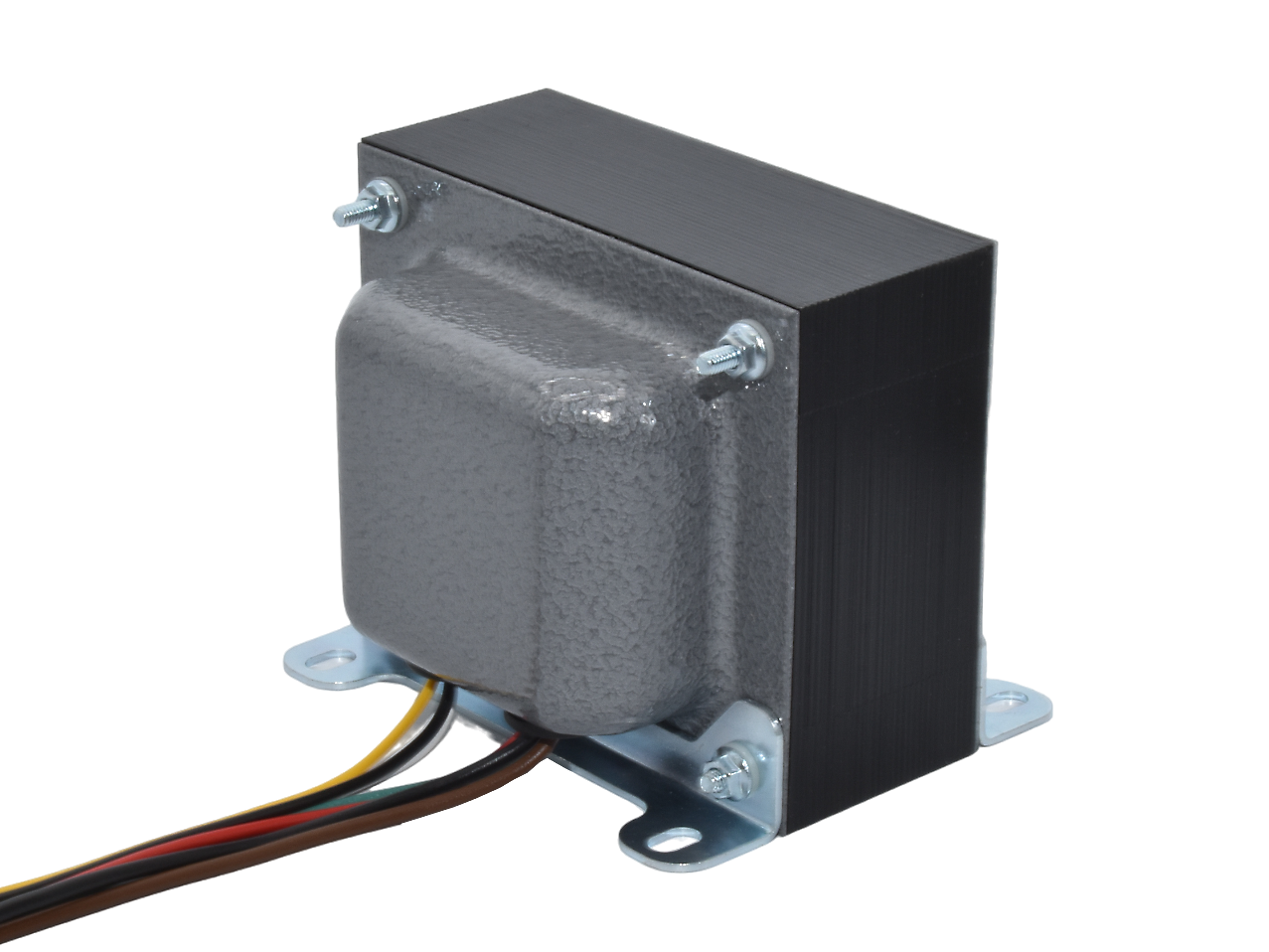

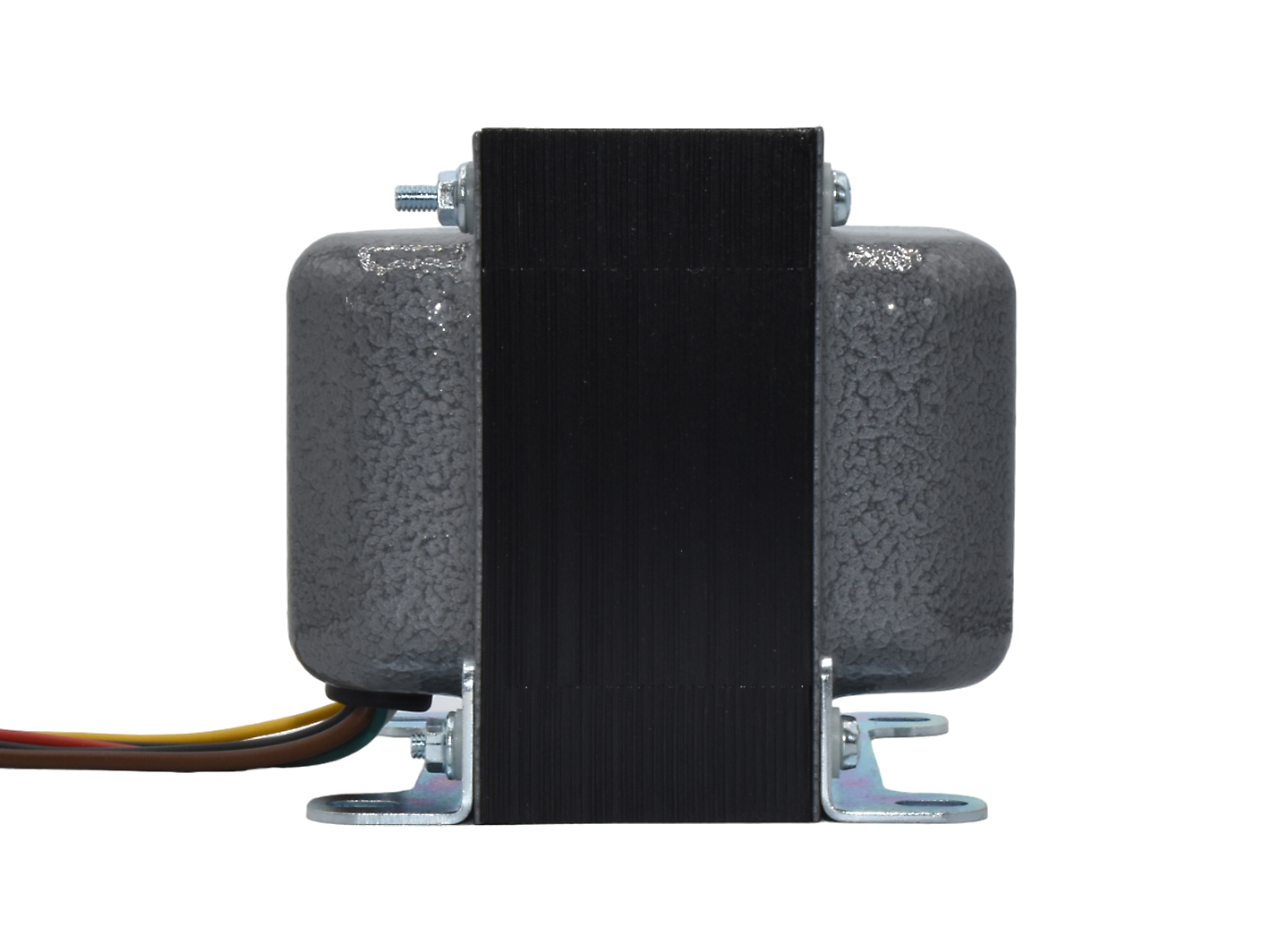

TT Output Transformer 100 Watt for Orange OR120 / Matamp GT100-120

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

• Termination Style: Axial
• Power Rating: 5 W
• Tolerance: 5 %
• Temperature Coefficient: 350 PPM / C
• Operating Temperature min/max: - 55 C / + 155 C
• Voltage Rating: 500 V
• Diameter: 8,5 mm
• Length: 25 mm
• Lead Diameter:  0.75 mm

Resistor, Metal Oxide 5 Watt

• +/- 5% tolerance
• -55° C to 240° C operating range
• max 500 V
• Excellent flame retardant coating
• Small Size

Belton Retainer for use with 6L6, EL34 and tubes with similar size.
Mounts on Chassis.

• Voltage Rating:    500 V
• Tolerance: 5%
• Operating Temperature Range: - 50°C / + 150°C
• Termination Style: radial

• Type: HV ceramic disk capacitor
• Epoxy resin molding
• (insulating and flame retardant)
• Voltage Rating: 2 kV
• Tolerance: - 10 %
• Operating Temperature Range: - 30°C / + 85 °C
• Grid: 7,5

• Type: HV ceramic disk capacitor
•   Epoxy resin molding
•   (insulating and flame retardant)
• Voltage Rating: 1 kV
• Tolerance: - 20 % / +20 %
• Operating Temperature Range: - 40°C / + 85 °C
• Dimensions: 3 mm x 7 mm
• Grid: 7,5
